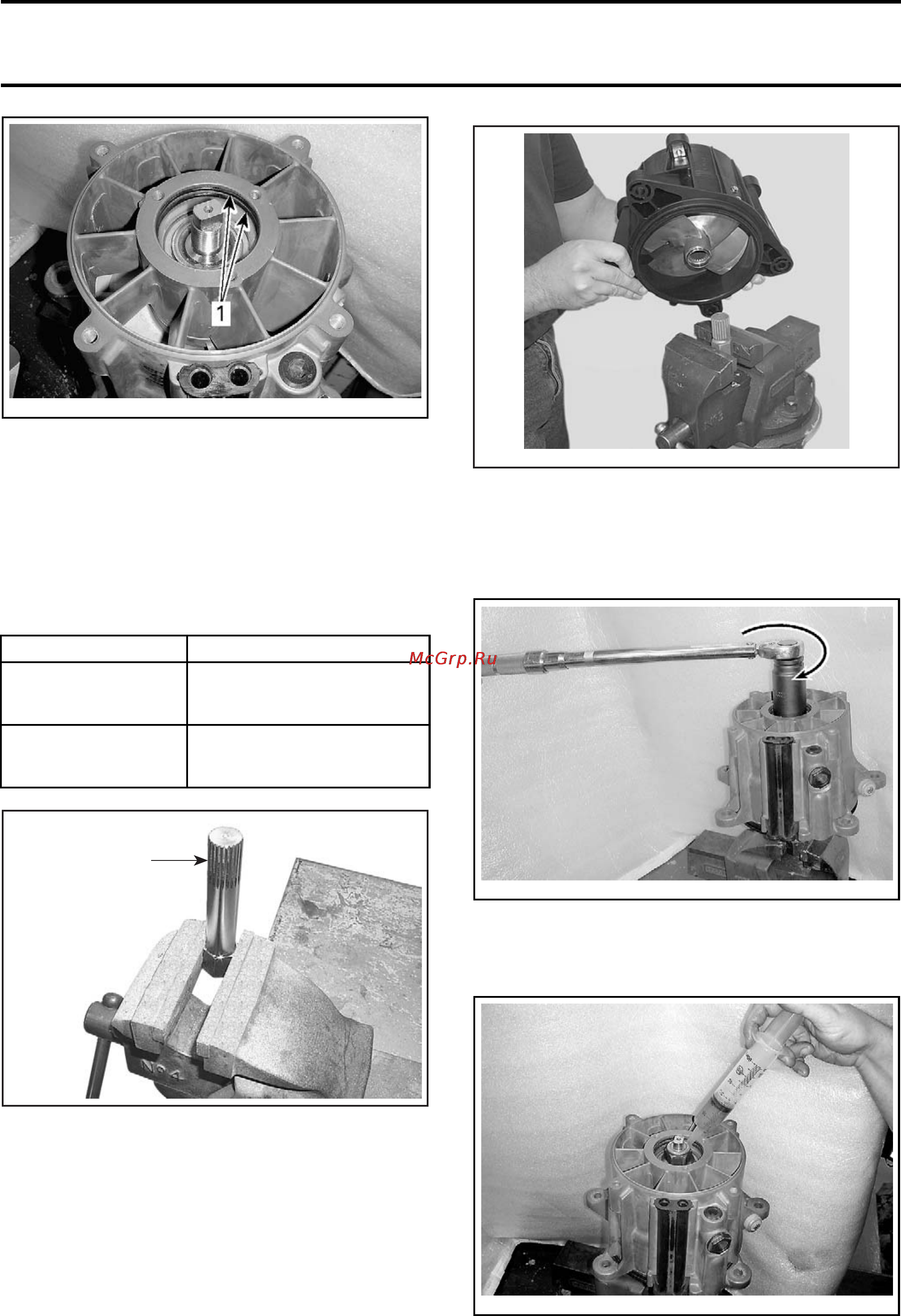

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
smr2009-006-017_a
TYPICAL
1. O-rings
12. Before installing any other parts, pressurize jet
pump to insure proper seal installation. Refer
to
LEAK TEST
in this subsection.
13. Install impeller. Refer to
IMPELLER
in this
subsection.
14. Mount in a vise the appropriate impeller re-
mover/installer tool according to engine type.
MODEL TOOL
130 and 155 engines
IMPELLER
REMOVER/INSTALLER
(P/N 529 035 820)
215 and 255 engines
IMPELLER
REMOVER/INSTALLER
(P/N 529 035 956)
1
F18J0PB
1. Impeller remover/installer tool
15. Install jet pump housing over this tool.
F18J0QA
TYPICAL
16. Using a 30 mm socket, screw the impeller
shaft nut on clockwise.
17. Torque nut as specified in exploded view.
smr2009-006-009_b
18. Apply 24 ml (.8 U.S. oz) of JET PUMP BEARING
GREASE (P/N 293 550 032)
on the bearing (nut
side).
smr2009-006-018
424 smr2009-039
