Section 06 STEERING AND PROPULSION
Subsection 04 (DRIVE SHAFT)
23. Run watercraft then ensure there is no oil leak
in PTO seal area.
24. Properly reinstall the deck extension, moving
deck and ventilation box. Refer to
BODY
sub-
section.

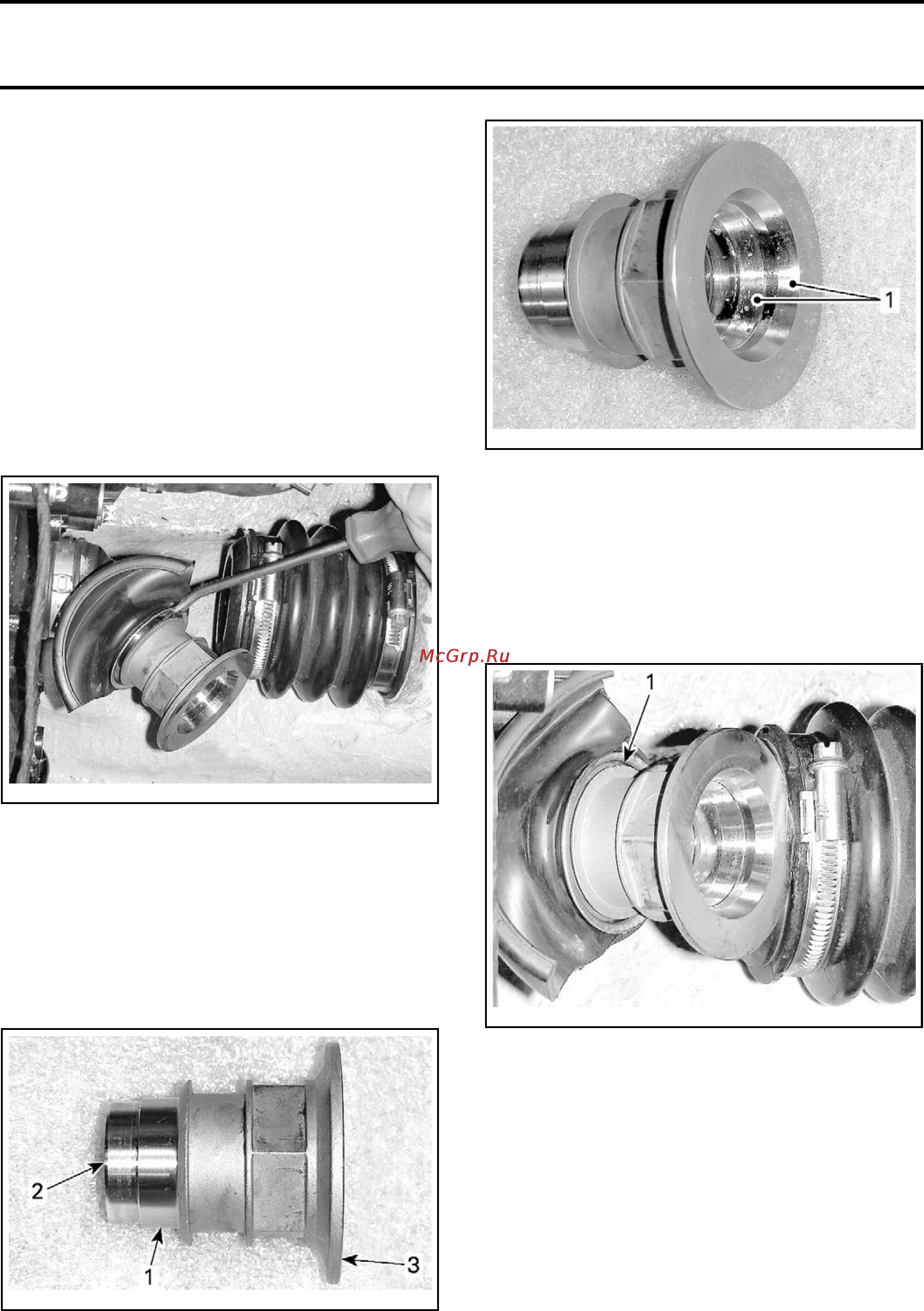

SEALING RING
Sealing Ring Removal
1. Remove drive shaft. Refer to
DRIVE SHAFT
in
this subsection.
2. Carefully pry out sealing ring from PTO seal
working alternately from side to side while
retaining PTO seal.
smr2009-007-007_a
Sealing Ring Inspection
Inspect condition of threads, tapered surfaces,
carbon seal contact surface and seal lip contact
surface. If damage is found, replace sealing ring.
Sealing Ring Cleaning
Clean the following sealing ring surfaces and
threads.
smr2009-007-004_a
1. Seal lip contact surface
2. Threads (inside)
3. Carbon seal contact surface
smr2009-007-005_a
1. Tapered surfaces
Sealing Ring Installation
1. Carefully insert sealing ring in the PTO seal.
2. Ensure sealing ring is completely inserted in the
PTO seal.
NOTE: The sealing ring flange must be flush with
the PTO seal flange.
smr2009-007-009_a
CORRE
CT
1. Sealing ring fully inserted into PTO seal
smr2009-040 435
