Section 06 STEERING AND PROPULSION
Subsection 04 (DRIVE SHAFT)

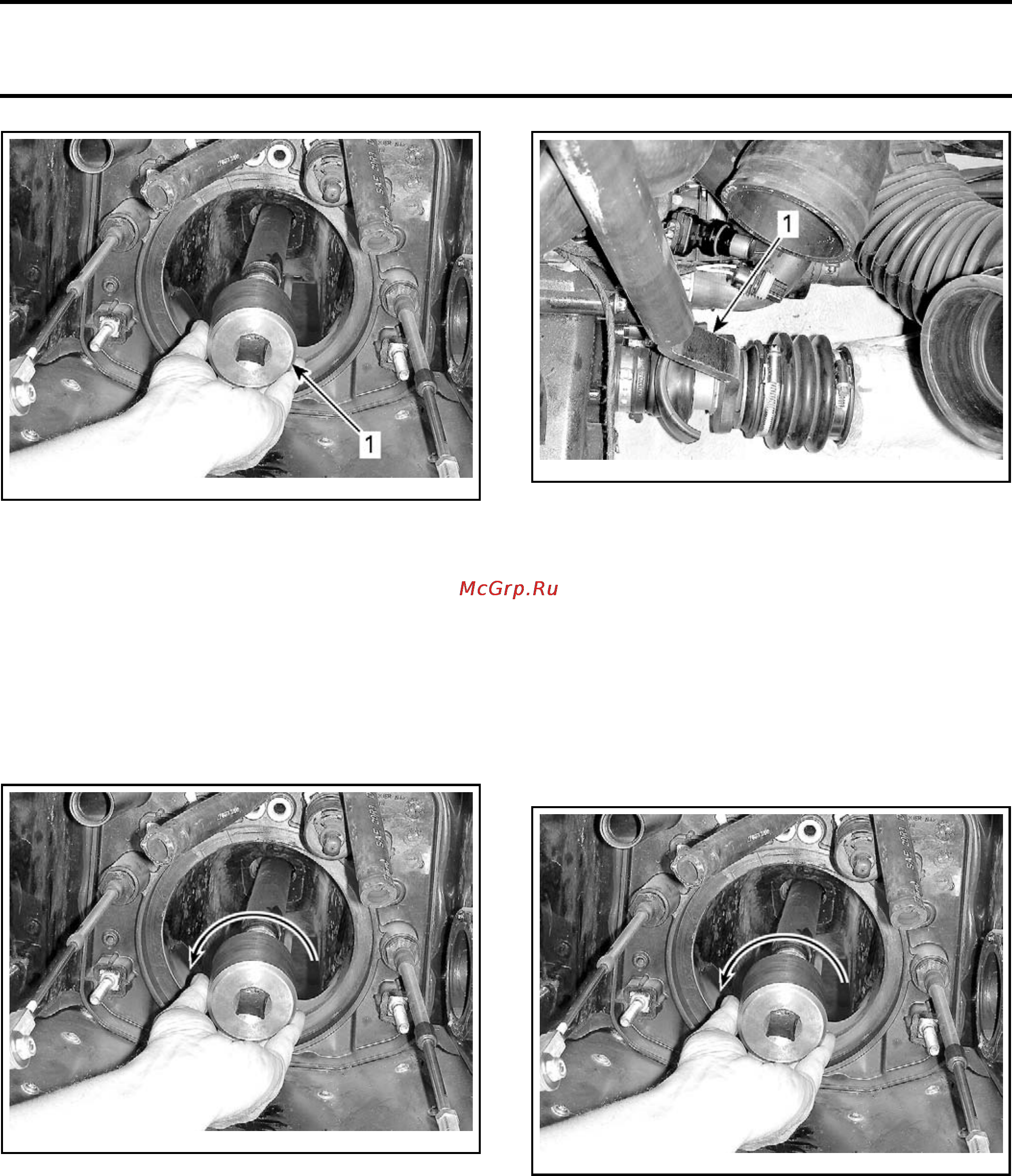

smr2009-007-003_a
TYPICAL
1. Drive shaft adapter
NOTE: Make sure all spark plugs are removed
from engine.
12. Removing spark plugs helps to engage
threads more easily thus preventing
cross-threading the sealing ring.
Carefully rotate drive shaft counterclockwise (LH
threads) to engage threads in sealing ring. Be
careful not to engage cross-thread.
smr20
09-007-003_c
TYPICAL
13. Rotate drive shaft 1-1/2 to 2 turns then try
pulling drive shaft out to ensure it is engaged.
14. In engine compartment, install the
DRIVE
SHAFT WRENCH (P/N 529 036 167)
on the
hexagon of sealing ring.
smr2009-007-002_a
TYPICAL
1. Drive shaft wrench
15. While a coworker holds the drive shaft wrench
in engine compartment, continue turning drive
shaft counterclockwise (LH threads) to a total
of 8 turns.
16. IMPORTANT: The number of turns is only a
reference to give you an idea of the drive shaft
engagement in the sealing ring. It is useful if
you suspect cross-threading. When the num-
ber of turns has been reached, the torque is
mandatory to properly secure the drive shaft.
smr2009-007-003_c
17. Torque drive shaft to 125 N•m (92 lbf•ft).
18. Reposition rubber protector above sealing
ring.
19. Ins
tall jet pump. Refer to
JET PUMP
section.
20. Install iBR gate and VTS ring, refer to
IBR AND
VTS
subsection.
21. Check engine oil level. Refill as necessary.
22
.
In
stall spark plugs on engine, refer to
ENGINE
su
bsection.
434 smr2009-040
