Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
529035868
SUSPENSION
POSITION
(% in B.U.D.S.)
iS MODULE
(6-pin
connector)
RESISTANCE
All positions
4
6 1803 - 2203
100%
5
6 1957 - 2391
100%
45
1361 - 1663
88%
5
6 1904 - 2327
88%
45
1410 - 1724
75%
5
6 1871 - 2287
75%
45
1448 - 1770
53%
5
6 1799 - 2199
53%
45
1516 - 1852
35%
5
6 1752 - 2142
35%
45
1565 - 1913

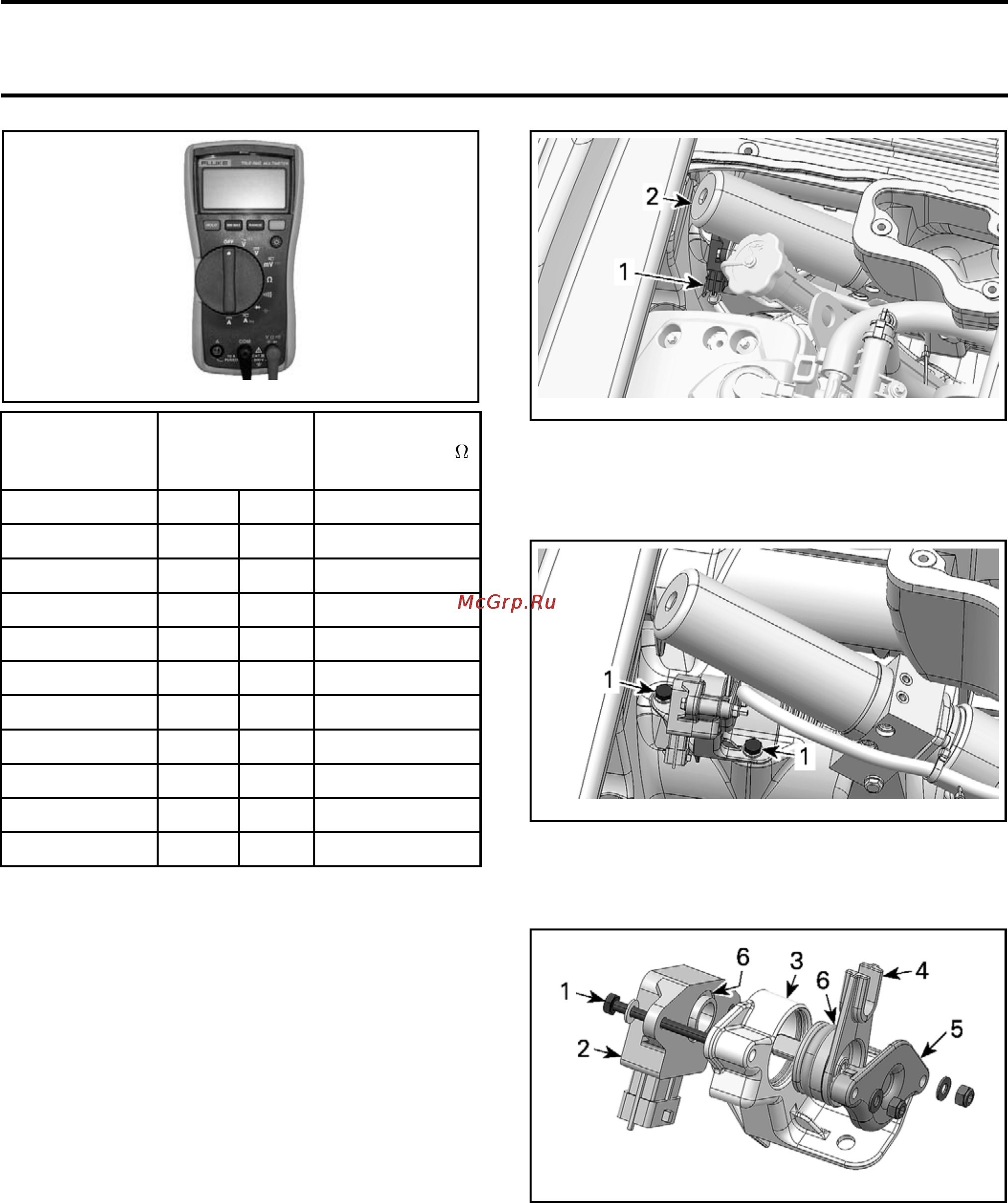

Suspension Position Sensor
Replacement
The suspension position sensor is located on sus-
pension base, under the hydraulic pump reservoir.
1. Remove the deck extension. Refer to
BODY
subsection.
2. Remove the air intake tube. Refer to
AIR IN-
TAKE SYSTEM
subsection.
3. Unplug the suspension position sensor connec-
tor.
smr2009-041-011_a
1. Sensor connector
2. Hydraulic pump reservoir
4. Remove screws securing the suspension posi-
tion sensor.
smr2009
-041-012_a
1. Retaining screws
5. Remove bolts securing the sensor and its cover
to the sensor support and the sensor lever.
smr2009-041-013_a
1. Retaining bolt
2. Sensor
3. Support
4. Lever
5. Cover
6. O-rings
NOTE: If water is present into sensor always re-
place sensor even if it seems in good condition.
6. Check condition of O-rings on sensor and sen-
sor lever.
7. Reinstall all parts.
448 smr2009-041
