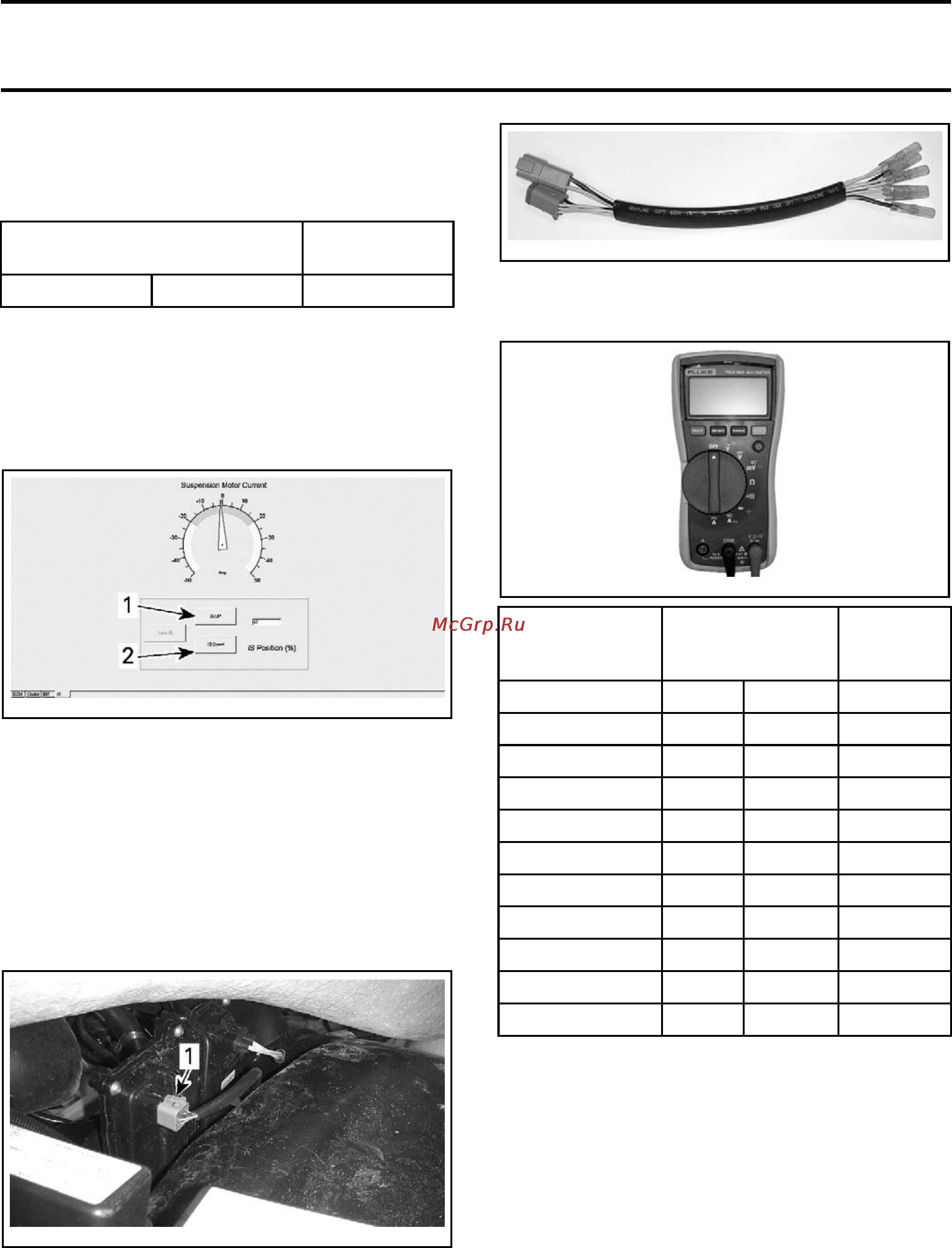

Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
Suspension Position Sensor Input
Voltage Test
At Sensor Connector
SUSPENSION PO
SITION
SENSOR CONNECTOR
VOLTAGE
Pin 1 Pin 2 5 Vdc
Using the 6-p
in Magneto Harness Tool
1. Connect B.U.D.S. Refer to
COMMUNICATION
TOOLS AND B.U.D.S. SOFTWARE
subsection.
2. Using B.U.D.S., raise suspension in fully up po-
sition.
smr2009-041-053_b
ACTIVATION AND IS TABS
1. iS UP
2. iS down
NOTE: If the seat is moving up and the number
does not increase in B.U.D.S. but it is between 10
and 100%, check the suspension position sensor
fork.
3. Unplug the 6-pins connector from the iS mod-
ule. The module is located in front of the bat-
tery in the same compartment.
smr2
009-041-009_a
1. Suspension position sensor connector on iS module
4. Connect the MAGNETO HARNESS 6 PINS
(P/N 295 000 136)
to iS module for voltage
checks.
295000136
5. Using the FLUKE 115 MULTIMETER (P/N 529 035
868)
, check voltage as per the following table.
529035868
SUSPENSION
POSITION
(% in B.U.D.S.)
MAGNETO
HARNESS
(wire lead color)
VOLTAGE
(Vdc)
All positions BK BK/YL 4.99
100% WH BK/YL 3.23
100% BK WH
1.75
88% WH BK/YL 3.09
88% BK WH 1.89
75% WH BK/YL 2.99
75% BK WH 1.98
53% WH BK/YL 2.81
53% BK WH 2.16
35% WH BK/YL 2.68
35% BK WH 2.30
6. Remove the 6-pin magneto harness tool.
Suspension Position Sensor
Resistance Test
At iS Module Connector
1. Using the
FLUKE 115 MULTIMETER (P/N 529 035
868)
, check resistance values on iS connector
as per the following table.
smr2009-041 447
