Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
2. The shock should extend unassisted. Rod must
come out at a steady speed.
If any problem is detected, replace the shock ab-
sorber.
Shock Absorber Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Secure the shock absorber using NEW bolts.
Tighten bolts to 75 N•m (55 lbf•ft).
Install NEW shock holder screws and tighten
them to 25 N•m (18 lbf•ft).
SPRINGS
Spring Removal
1. Remove
SHOCK ABSORBER
, see procedure in
this subsection.
2. Remove the spring protector, the long spring,
the spacer, the short spring and the spring
holder.

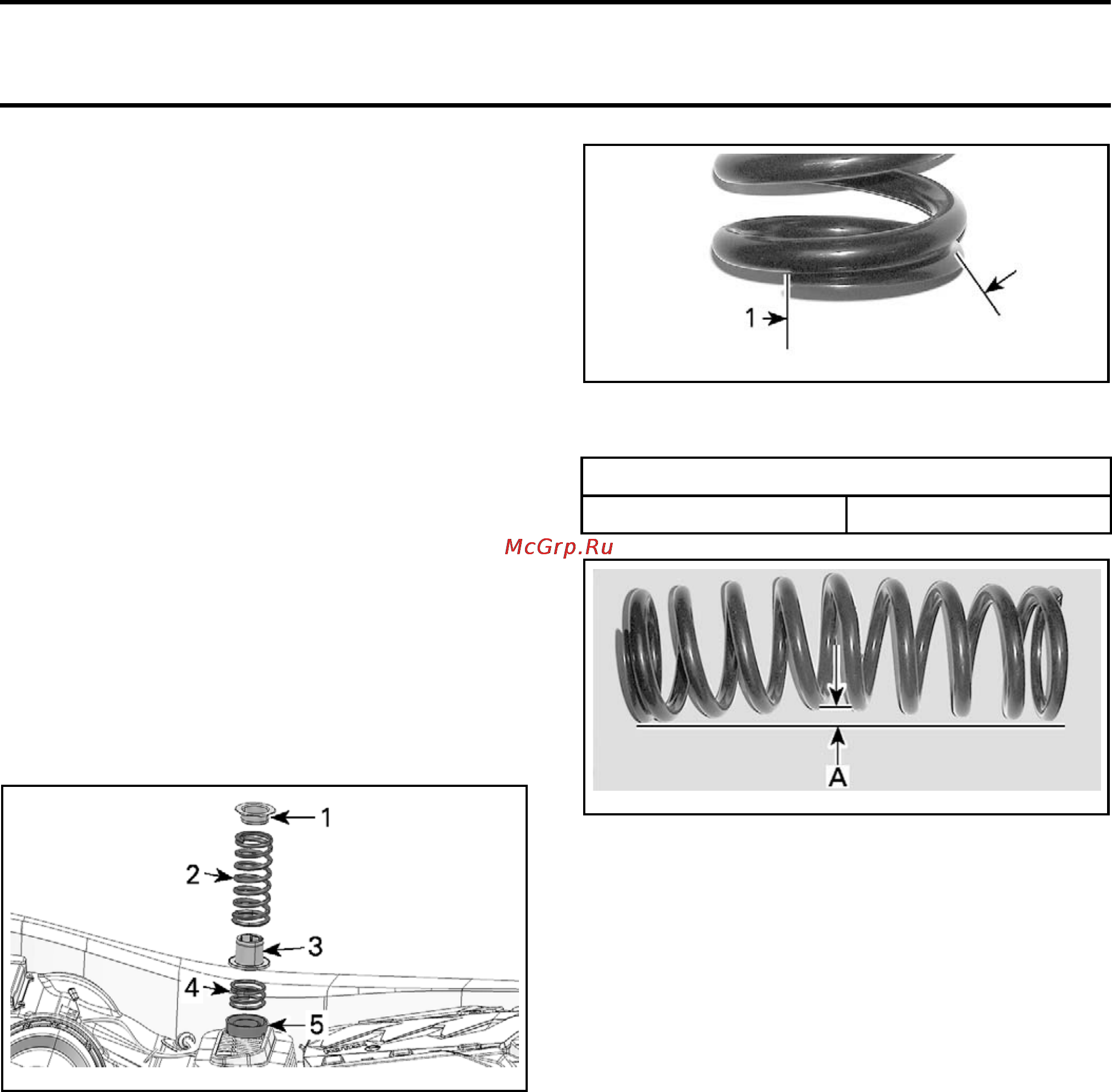

smr2009-041-007_a
1. Spring pr
otector
2. Long spring
3. Spacer
4. Short spr
ing
5. Spring holder
Spring Inspection
Inspect both springs and replace if one of the fol-
lowing damage is detected:
Crack in the paint
–Rust
Other visible damages.
Replace
spring if one of these problems is de-
tected.
NOTE: If rust is present ONLY on the first 1/4 of
coil, the spring should not be replaced.
smr2009-041-090_a
1. Zone where presence of rust is normal
Check the curve line of long spring.
LONG SPRING
SHAPE
Maximum 7 mm (9/32 in)
smr2009-041-041_a
A. 7 mm (9/32 in) maximum
Replace s
pring if out of specification.
Spring Installation
The insta
llation is the reverse of the removal pro-
cedure.
SUSPENSI
ON POSITION
SENSOR
The suspension position sensor is a potentiome-
ter that sends a signal to the iS module which is
proportional to the front suspension arm angle.
NOTE: Prior to testing the sensor, ensure that
components of suspension are good and installed
correctly.
If a prob
lem occurs with the suspension, several
fault co
des pertaining to the suspension position
sensor
will be generated. Refer to
MONITOR-
ING SYS
TEM AND FAULT CODES
subsection for
more in
formation.
446 smr2009-041
