Section 07 BODY AND HULL

Subsection 01 (SUSPENSION (iS))

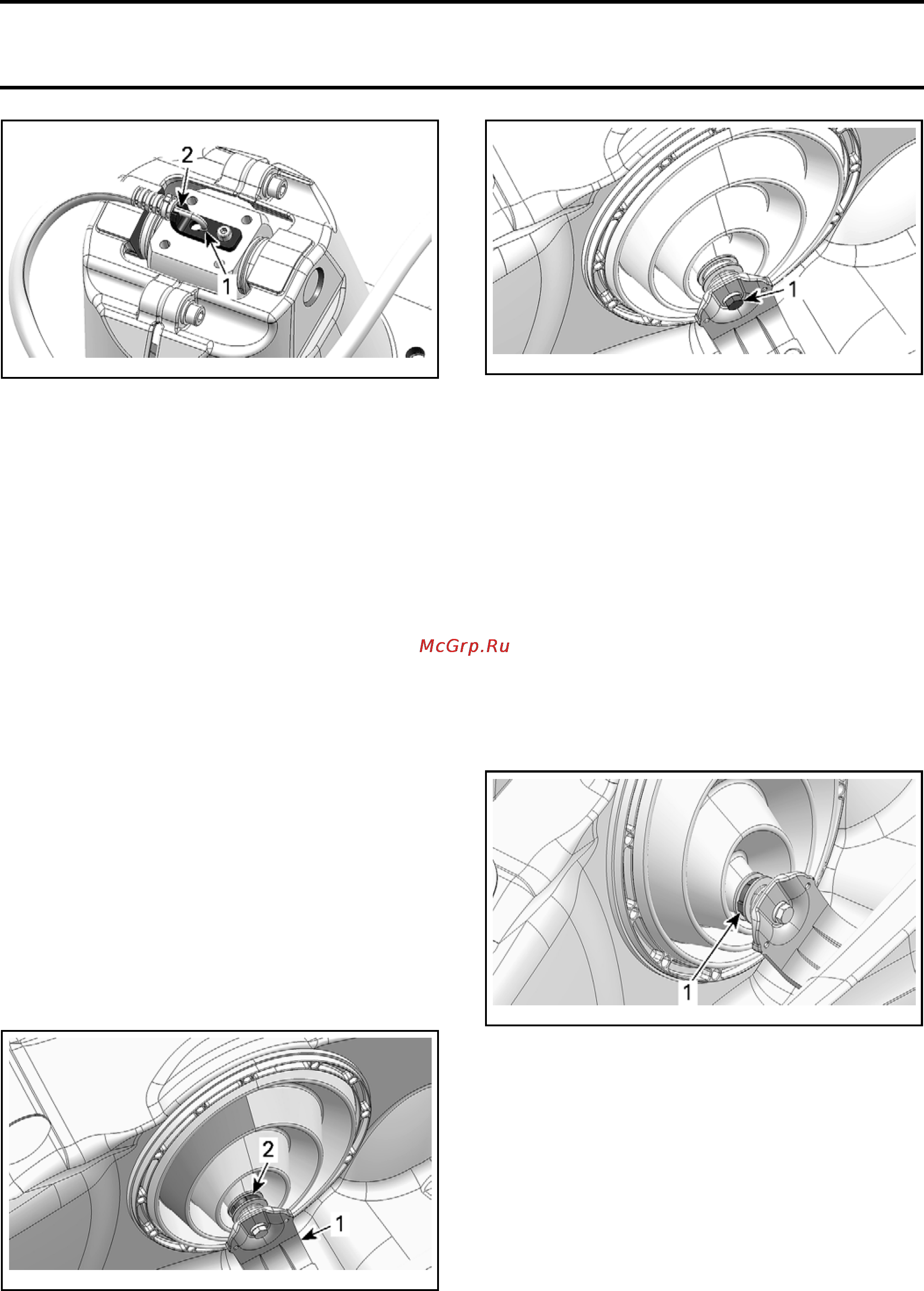

smr2009-041-052_a

1. Hose fully inserted in lock slot

2. Position hydraulic hose in lock hook

Apply LOCTITE 243 (BLUE) (P/N 293 800 060) on

threads of lock screw.

Tighten screw to 8 N•m (71 lbf•in).

Install the hydraulic pump in vehicle. Make sure

to route the hydraulic hose properly. See

HY-

DRAULIC PUMP INSTALLATION (AS A UNIT

WITH ACTUATOR)

in this subsection.

Install a weight of 90 kg (200 lb) on moving deck

and using suspension controls on steering, cycle

the suspension fully up and fully down 3 times.

This action will remove air bubbles trapped into

hose and pump during installation.

Check for leaks.

Install all other removed parts.

LATERAL SUPPORT

Lateral Support Removal

NOTE: The following instruction can be used for

RH or LH support.

1. Remove the moving deck. Refer to

BODY

sub-

section.

2. Cut the Oetiker clamp retaining lateral bellows

to lateral support.

smr2009-041-022_a

1. Later

al support

2. Oetiker clamp

3. Remove the lateral support screw.

smr2009-041-023_a

1. Lateral support screw

4. Remove lateral support from lateral bellows.

Lateral Support Installation

The installation is the reverse of the removal pro-

cedure. However, pay attention to the following.

Apply soapy water solution on bellows opening

and insert the lateral support.

Index lateral supports with the front suspension

shaft ends. Lateral supports can be inserted in

one position only.

Tighten lateral support screw to 48 N•m

(35 lbf•ft).

Install a new Oetiker clamp. Position the ear of

clamp rearwards.

smr200

9-041-066_a

RH SIDE SHOWN

1. Earofclamprearwards

LATERAL BELLOWS

Latera

l Bellows Removal

1. Remove lateral support screw.

458 smr2009-041
