Section 07 BODY AND HULL

Subsection 01 (SUSPENSION (iS))

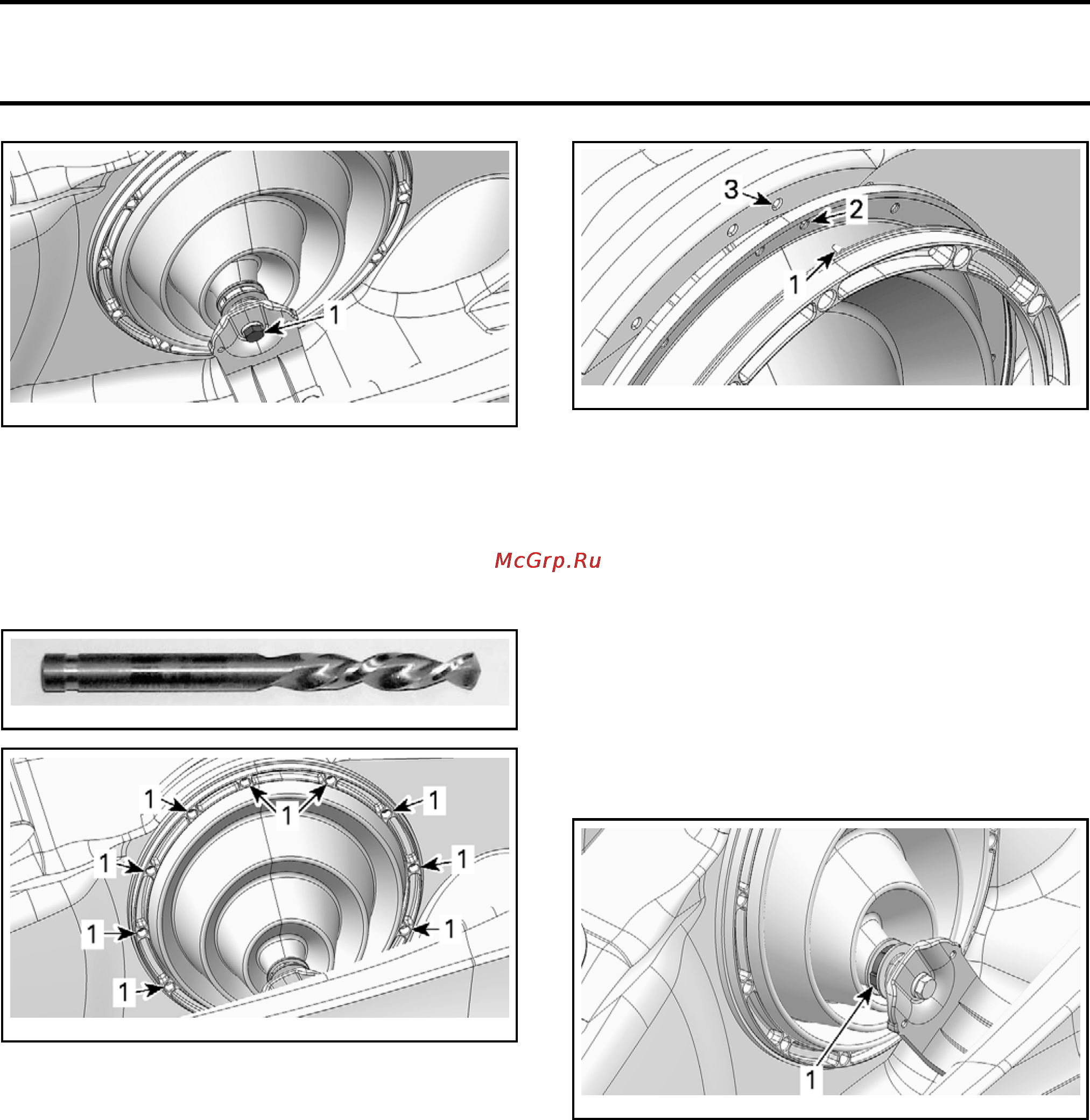

smr2009-041-024_a

1. Lateral support screw

2. Decouple lateral support from suspension

shaft.

3. Using the

SUPERTITANIUM DRILL BIT 3/16"

(P/N 529 031 800)

, remove all rivets (12) secur-

ing the lateral bellows ring to body.

529031800

smr2009-041-025_a

1. Rivet location

4. Remove lateral ring.

5. Cut Oetiker clamp securing bellows to lateral

support.

6. Separate lateral support from bellows.

Lateral Bellows Installation

The installation is the reverse of the removal pro-

cedure. However, pay attention to the following.

Apply soapy water solution on bellows opening

and insert the lateral support.

Index suspension shaft with the lateral support.

The lateral support can be inserted in one position

only.

Install the retaining ring. Align the ring pin with

holes in bellows and body.

smr2009-041-026_a

1. Ring pin

2. Bellows alignment hole

3. Body hole

Install new rivets. If the head of rivet tool can-

not be inserted in ring opening, use the sleeve

(P/N 707 000 181) to offset the rivet tool and well

lean the rivet head against ring.

Index lateral supports with the front suspension

shaft ends. Lateral supports can be inserted in

one position only.

Tighten lateral support screw to 48 N•m

(35 lbf•ft).

Install a new Oetiker clamp. Position the ear of

clamp rearwards.

smr2009

-041-066_a

RH SIDE SHOWN

1. Earofclamprearwards

FRONT SUSPENSION ARM

Front S

uspension Arm Removal

1. Remove the moving deck. Refer to

BODY

sub-

section.

2. Remove the engine. Refer to

ENGINE RE-

MOVAL AND INSTALLATION

subsection.

3. Remov

e both lateral support screws.

smr2009-041 459
