Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
Suspension Base Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
1. Install the suspension base.
1.1 Position the base in accordance with the
reference marks previously drawn at the
bottom of the hull.
NOTE: If no marks are available, see
SUS-
PENSION BASE INSTALLATION WITHOUT
REFERENCE MARKS
.
1.2 Install NEW suspension base screws.
1.3 Tighten suspension base screws to
25 N•m (18 lbf•ft).
2. Refer to the appropriate procedures and install
all other removed parts.
– Actuator and hydraulic pump
– Front suspension arm
– Shock absorber and springs
–Engine
– Moving deck.
Suspension Base Installation Without
Reference Marks
1. Install the suspension base in vehicle using
NEW screws. Do not tighten them yet.
2. Install the front arm on suspension base and
tighten screws to 25 N•m (18 lbf•ft), use the
OLD screws.
3. Install lateral supports.
3.1 Index lateral supports with the front sus-
pension shaft ends. Lateral supports can
be inserted in one position only.
3.2 Tighten lateral support screws to 48 N•m
(35 lbf•ft).
4. Align suspension base in vehicle.
4.1 On both sides, measure the distance be-
tween the end of lateral support and fixed
deck.

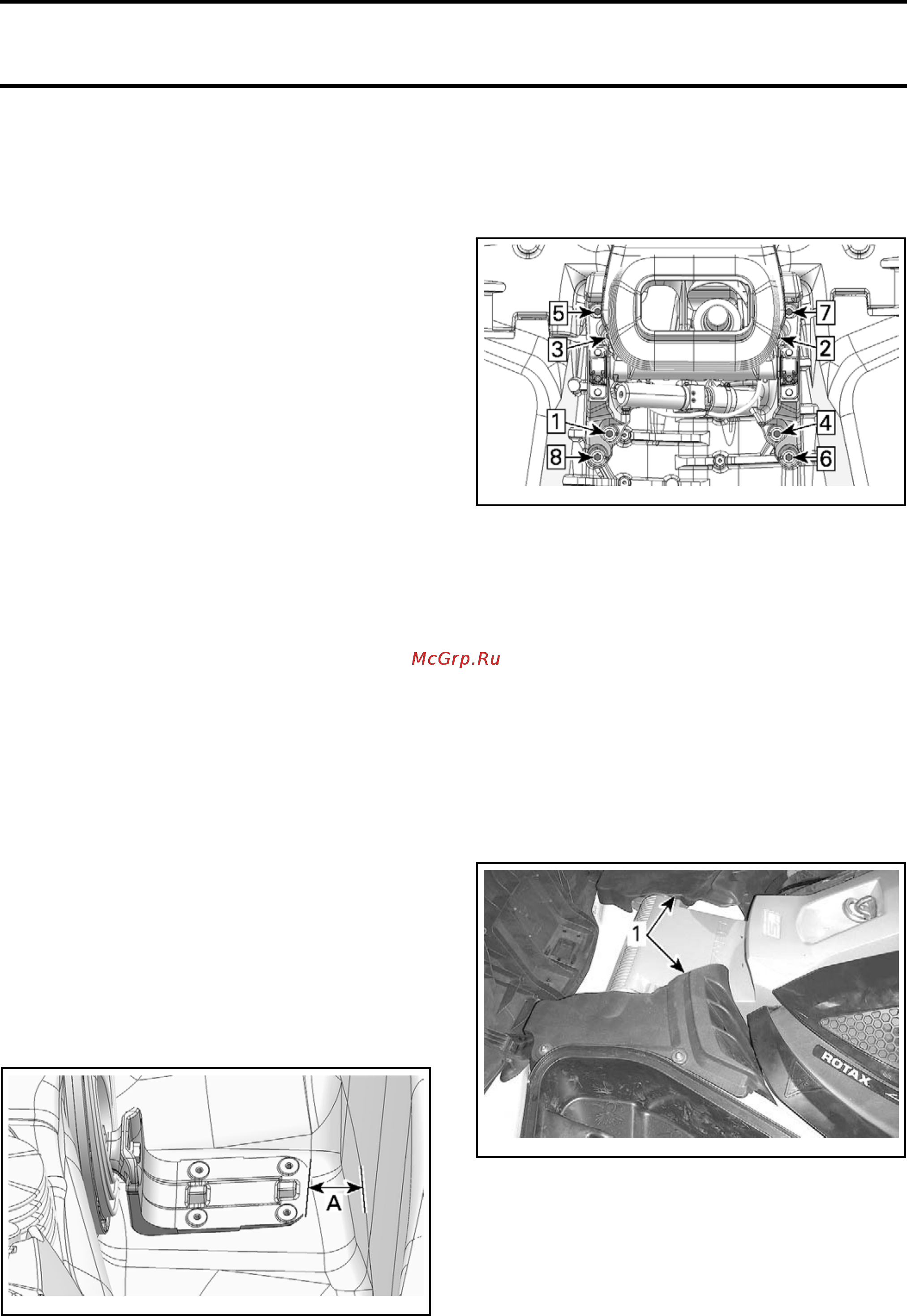

smr2009-041-064_a
A. Sam
edistanceonLHandRHsides
4.2 If required, move suspension base until
both distances are equal.
4.3 Tighten suspension base rear screws to
25 N•m (18 lbf•ft).
smr2009-041-065_a
TIGHTENING SEQUENCE
5. Refer to the appropriate procedures and install
all other removed parts.
– Actuator and hydraulic pump
– Shock absorber and springs
– Engine
– Moving deck.
REAR SUSPENSION ARM
Rear Suspension Arm Removal
1. Open the boarding platform.
2. Remove bolts securing both rear suspension
arm covers.
smr20
09-041-072_a
1. Rear suspension arm cover
3. Unclip and remove both lateral rear panels.
smr2009-041 461
