Section 07 BODY AND HULL

Subsection 01 (SUSPENSION (iS))

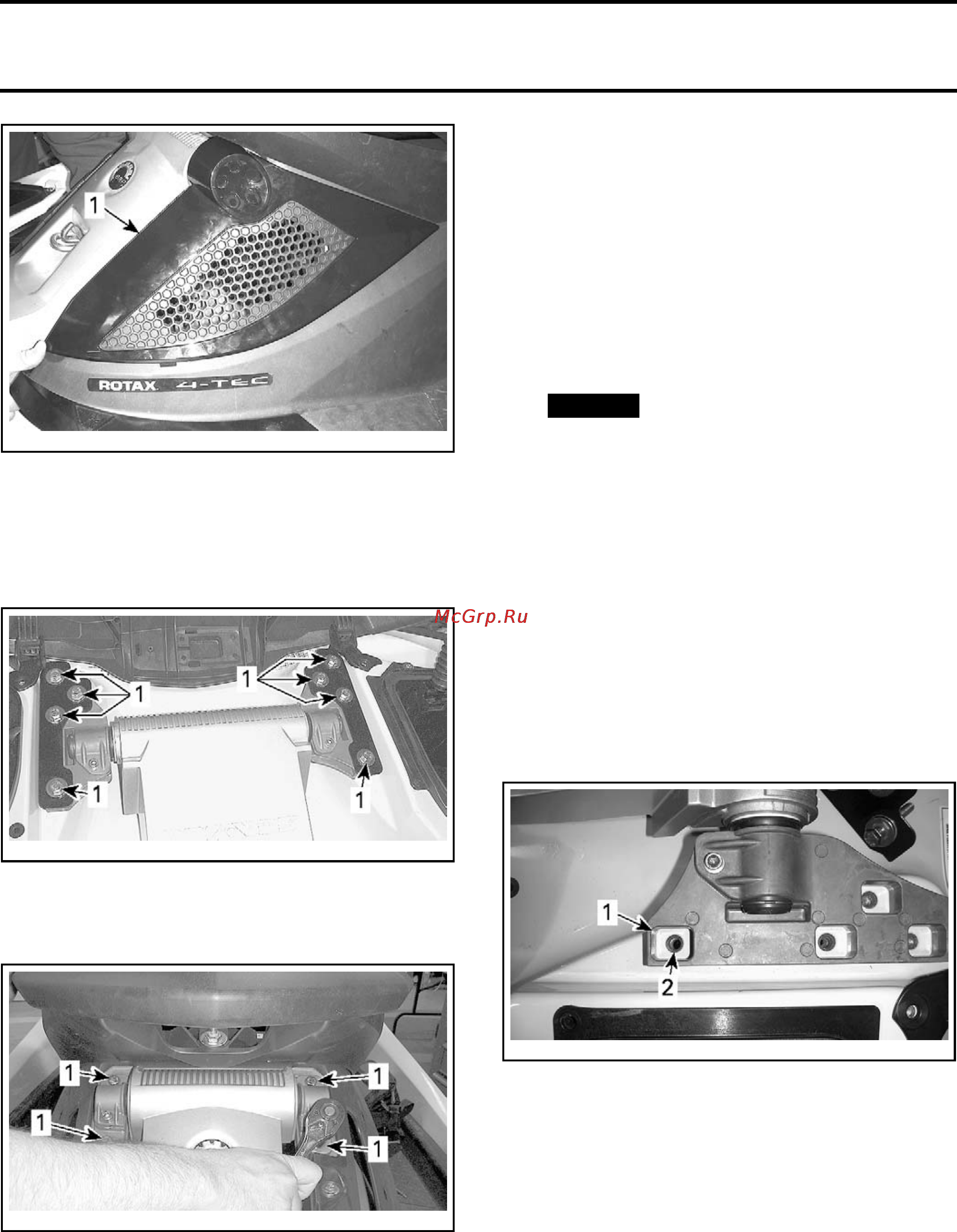

smr2009-041-073_a

1. RH lateral rear panel

4. Mark position of rear suspension arm brackets

for proper reinstallation.

5. Remove and discard screws securing rear sus-

pension arm to fixed deck.

smr2009-041-074_a

1. Rear suspension arm screws

6. Remov

e and discard screws securing the top of

rear s

uspension arm.

smr2009-041-075_a

1. Retaining screws

7. Remove the rear suspension arm from vehicle.

Rear Suspension Arm Installation

1. Using NEW screws, install the top of rear sus-

pension arm.

NOTE: If the upper arm shaft or one of its arm

shaft support has been removed or loosened, re-

fer to

SUSPENSION ARM SHAFTS

for proper in-

stallation procedure.

2. Tighten screws to 25 N•m (18 lbf•ft).

3. Carefully lower and secure the rear suspension

arm to the fixed deck.

3.1 Position the rear suspension arm brackets

in accordance with the reference marks

previously draw on fixed deck.

NOTICE

If no mark was traced, refer to

REAR SUSPENSION ARM INSTALLATION

WITHOUT REFERENCE MARKS

for proper

procedure to install and align the rear sus-

pension arm.

3.2 Install NEW screws to secure rear suspen-

sion arm brackets.

3.3 Tighten screws to 25 N•m (18 lbf•ft).

Rear Suspension Arm Installation Without

Reference Marks

1. Lower the rear suspension arm on fixed deck.

2. Position the square openings of rear suspen-

sion arm brackets so that the threaded inserts

in fixed deck are centered.

smr2009-041-076_a

1. Square opening

2. Threa

ded insert

3. On each bracket, install the retaining plate and

one screw.

4. Inst

all a weight of 90 kg (200 lb) on vehicle to

lowe

r the moving deck.

5. Check moving deck position in comparison to

fixed deck.

5.1 Check the gap between moving deck

wipers and fixed deck. It should be the

same on both sides.

5.2 Che

ck front and rear gaps. Moving deck

sho

uld be able to move without having

co

ntact with the fixed deck.

462 smr2009-041
