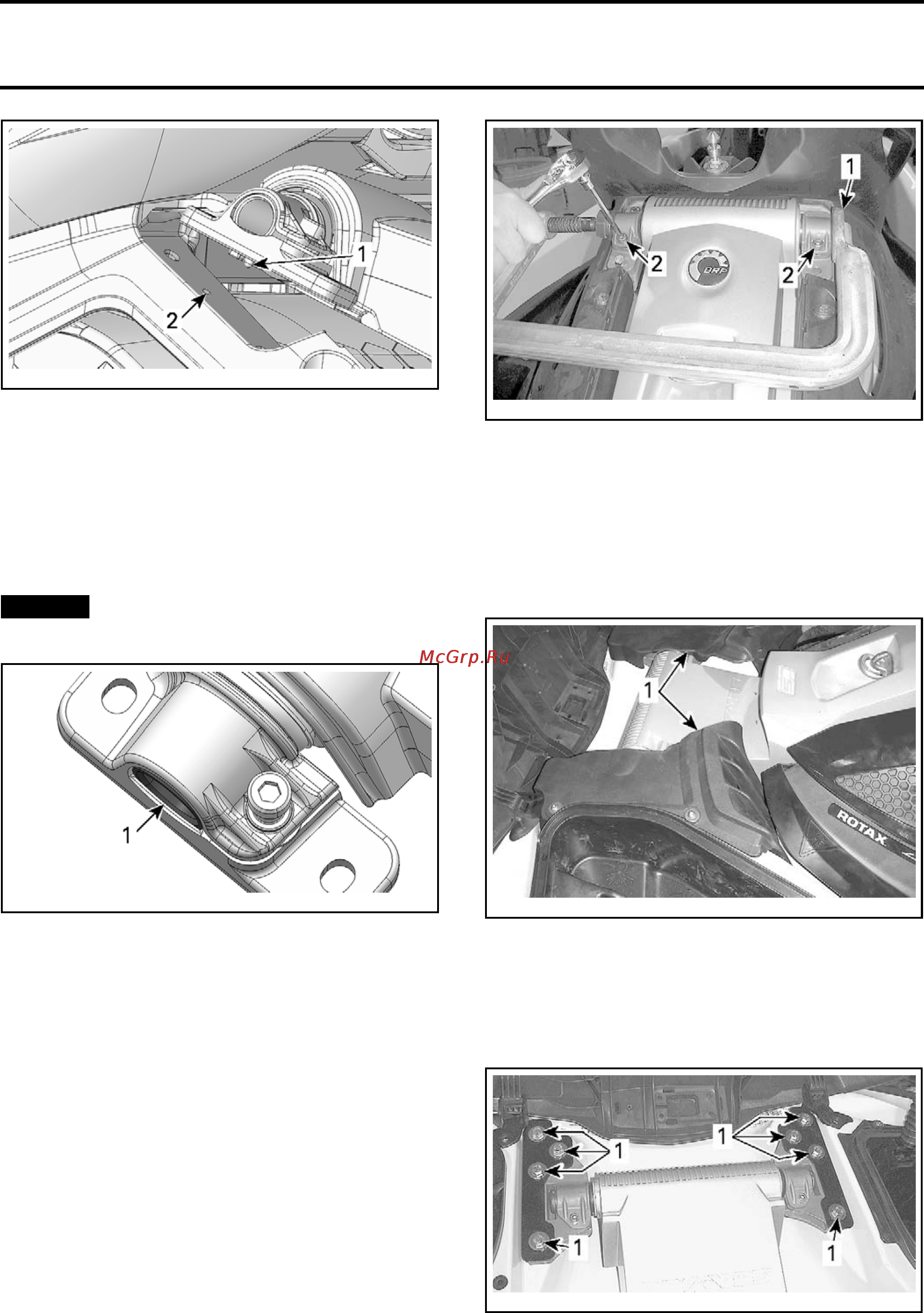

Section 07 BODY AND HULL
Subsection 01 (SUSPENSION (iS))
smr2009-041-078_a
1. Support pin
2. Holder hole
4. Tighten the LH support screws to 25 N•m
(18 lbf•ft).
5. Apply a force on the RH support to move it on
the left side.
NOTE: A bar clamp can be used to compress both
supports together.
NOTICE
Make sure arm shaft is fully inserted,
it must lean against the arm shaft support.
smr2009-041-067_a
1. Arm shaft against its support
6. Install NEW support screws and tighten them
to 25 N•m (18 lbf•ft).
7. Secure both supports to shaft using NEW
socket screws. Tighten them to 12 N•m
(106 lbf•in).
smr2009-041-079_a
1. Bar clamp
2. New socket screws
Removal of Rear Suspension Arm
Lower Shaft
1. Open the boarding platform.
2. Remove bolts securing both rear suspension
arm covers.
smr200
9-041-072_a
1. Rear suspension arm cover
3. Mark position of rear suspension arm brack-
ets for proper reinstallation.
4. Remove and discard screws securing rear sus-
pension arm to fixed deck.
smr2009-041-074_a
1. Rear suspension arm screws
464
smr2009-041
