Section 07 BODY AND HULL

Subsection 01 (SUSPENSION (iS))

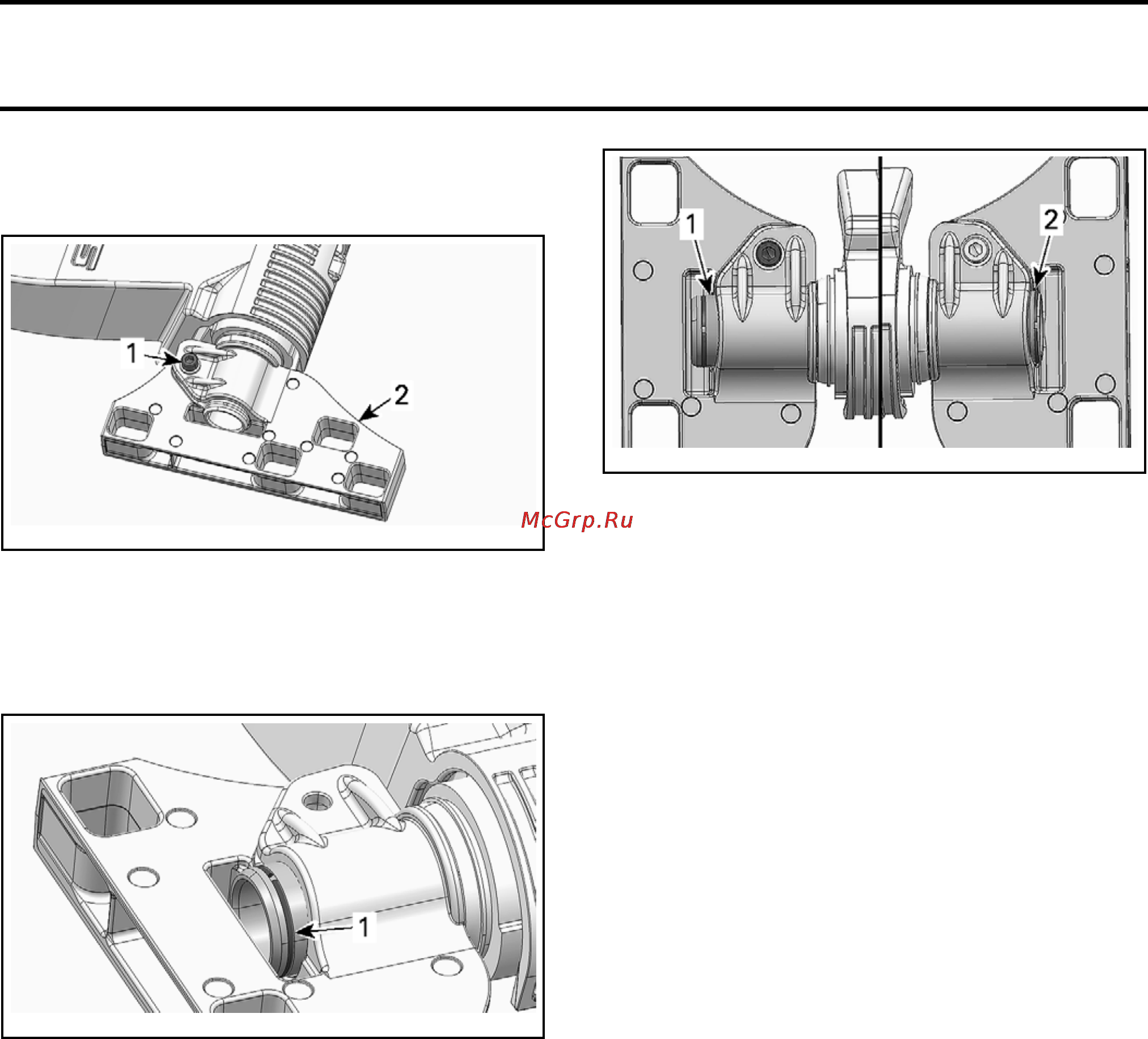

5. Remove and discard socket screws securing

rear brackets to arm shaft ends.

smr2009-041-069_a

1. Socket screw

2. LH rear brac

ket

6. Press one rear bracket against the suspension

arm bushing and remove the circlip. Repeat for

the other side.

smr2009-041-070_a

1. Circlip

Installation of Rear Suspension Arm

Lower Shaft

1. When reassembly the rear bracket on shaft

end, press bracket on bushing to install the

circlip.

2. When both brackets are installed on shaft, pull

brackets outside to position circlips against

brackets.

smr2009-041-071_a

1. Bad installation

2. Good installation

3. Lower the rear suspension arm on fixed deck.

4. Tighten NEW socket screws to 10 N•m

(89 lbf•in).

5. Refer to

REAR ARM

for reinstallation.

smr2009-041 465
