Section 07 BODY AND HULL

Subsection 02 (BODY)

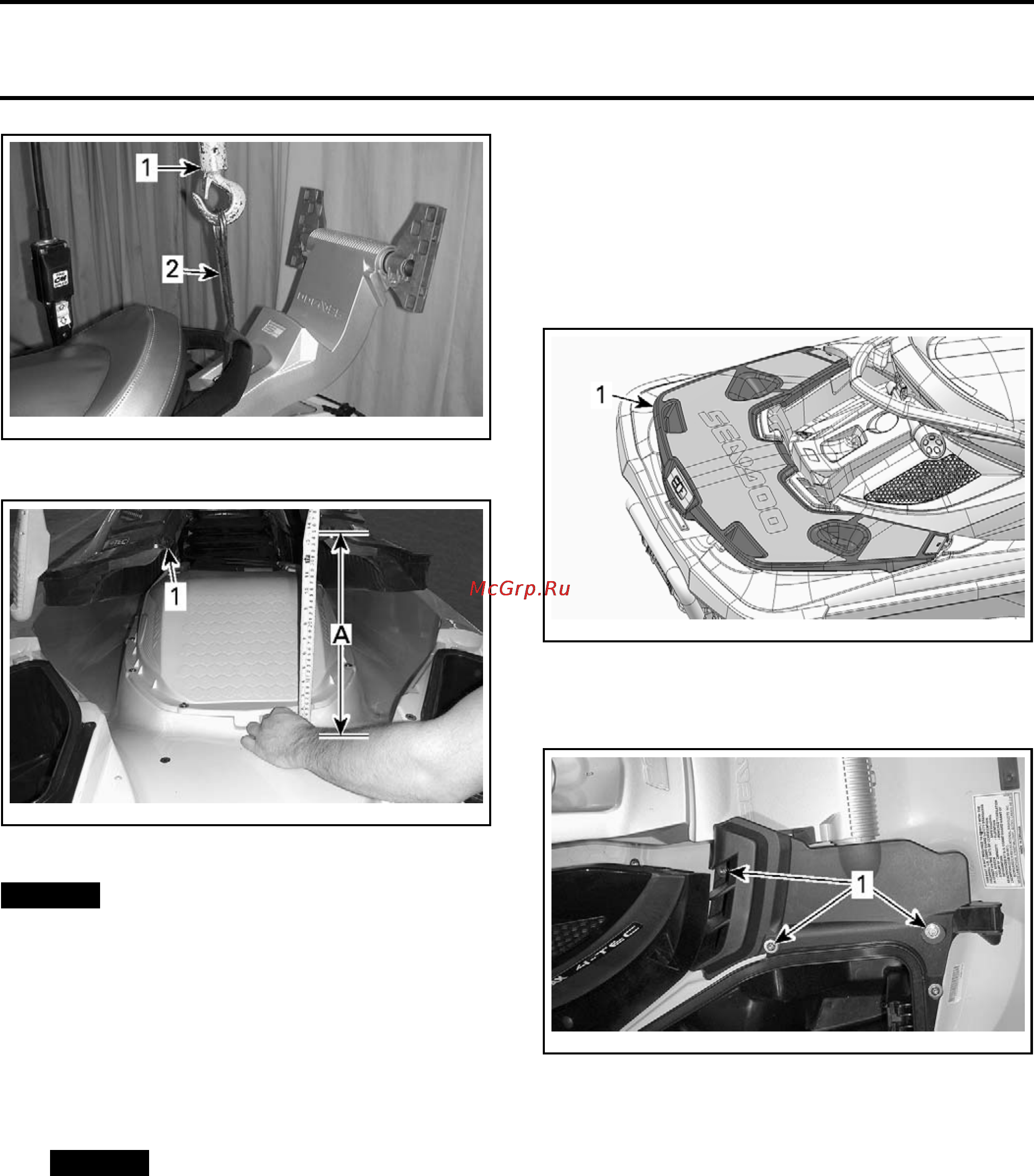

smr2009-042-066_a

1. Hoist

2. Lifting strap

smr2009-042-023_a

1. Use this rivet as reference point

A. 340 mm (13-1/2 in)

NOTICE

Lifting the rear of moving deck more

than the recommended height can damaged

the steering cable.

Lowering Back Moving Deck

1. Carefully lower and secure the rear suspension

arm to the fixed deck.

1.1 Position the rear suspension arm brackets

in accordance with the reference marks

previously draw on fixed deck.

NOTICE

If no mark was trace, refer to

IS

SUSPENSION

subsection for proper pro-

cedure to install and align the rear suspen-

sion arm.

1.2 Install NEW screws to secure rear suspen-

sion arm brackets.

1.3 Tighten screws to 25N•m (18 lbf•ft).

2. Detach lifting device.

3. Remove pieces of wood located under the front

of moving deck.

Removing the Moving Deck for

Servicing Watercraft

1. Open the front storage cover and remove the

front basket.

2. Remove the

BOARDING PLATFORM

, see pro-

cedure in this subsection.

ssi2009-002-002_a

1. Boarding

platform

3. Remove bolts securing both rear suspension

arm covers.

smr2009-042-010_a

1. Cover screws

4. Mark position of rear suspension arm brackets

for proper reinstallation.

5. Remove and discard screws securing rear sus-

pension arm to fixed deck.

smr2009-042 471
