Section 07 BODY AND HULL

Subsection 02 (BODY)

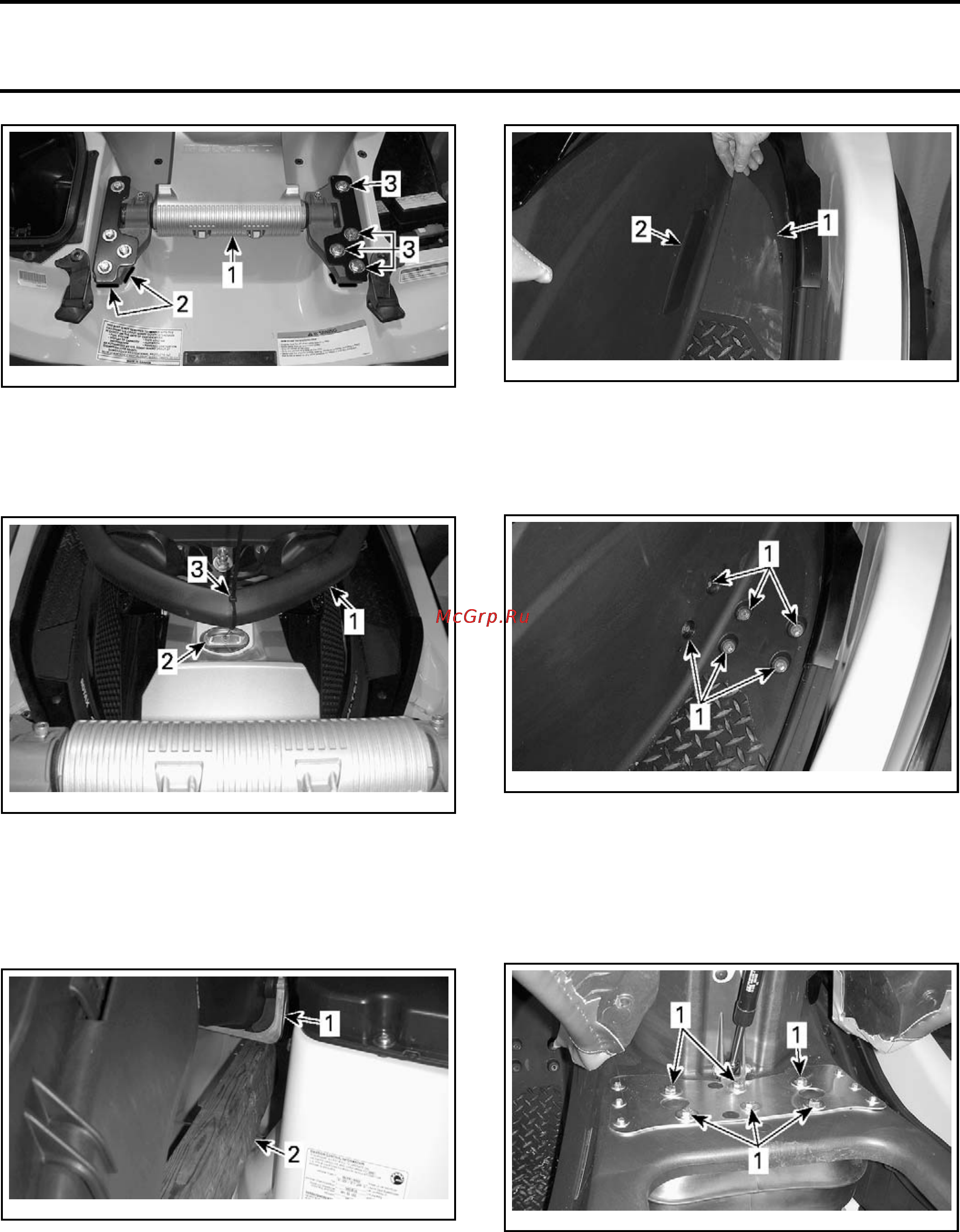

smr2009-042-011_a

1. Rear suspension arm

2. Reinstallation marks

3. Screws (discard)

6. Lift and attach the rear suspension arm against

seat handle.

smr2009-042-012_a

1. Seat han

dle

2. Ski/wakeboard attachment

3. Locking tie

7. Manual

ly, tip up the front of moving deck and

instal

l a piece of wood (2 x 4) between fixed

deck an

d each lateral supports.

smr2009-042-013_a

FROM THE FRONT OF VEHICLE

1. RH lateral support

2. Piece of wood

8. Detach moving deck from lateral supports.

8.1 Remove front carpet of foot wells and pro-

tective caps on both sides of the moving

deck. Discard the front carpets.

smr2009-042-014_a

RH SIDE SHOWN

1. Front carpet (discard)

2. Protective cap

8.2 Remove and discard screws securing

moving deck to lateral supports.

smr2009

-042-015_a

RH SIDE SHOWN

1. Retaining screws (discard)

9. Open sea

10. Remove and discard M8 hexagonal screws

securing the suspension mounting plate and

moving deck.

smr2009-042-016_a

1. Moving deck central screws (discard)

11. Close seat.

12. Remove the gauge support. Refer to

GAUGE

subsection.

13. Disconnect the four connectors under moving

deck.

472 smr2009-042
