Section 07 BODY AND HULL
Subsection 02 (BODY)

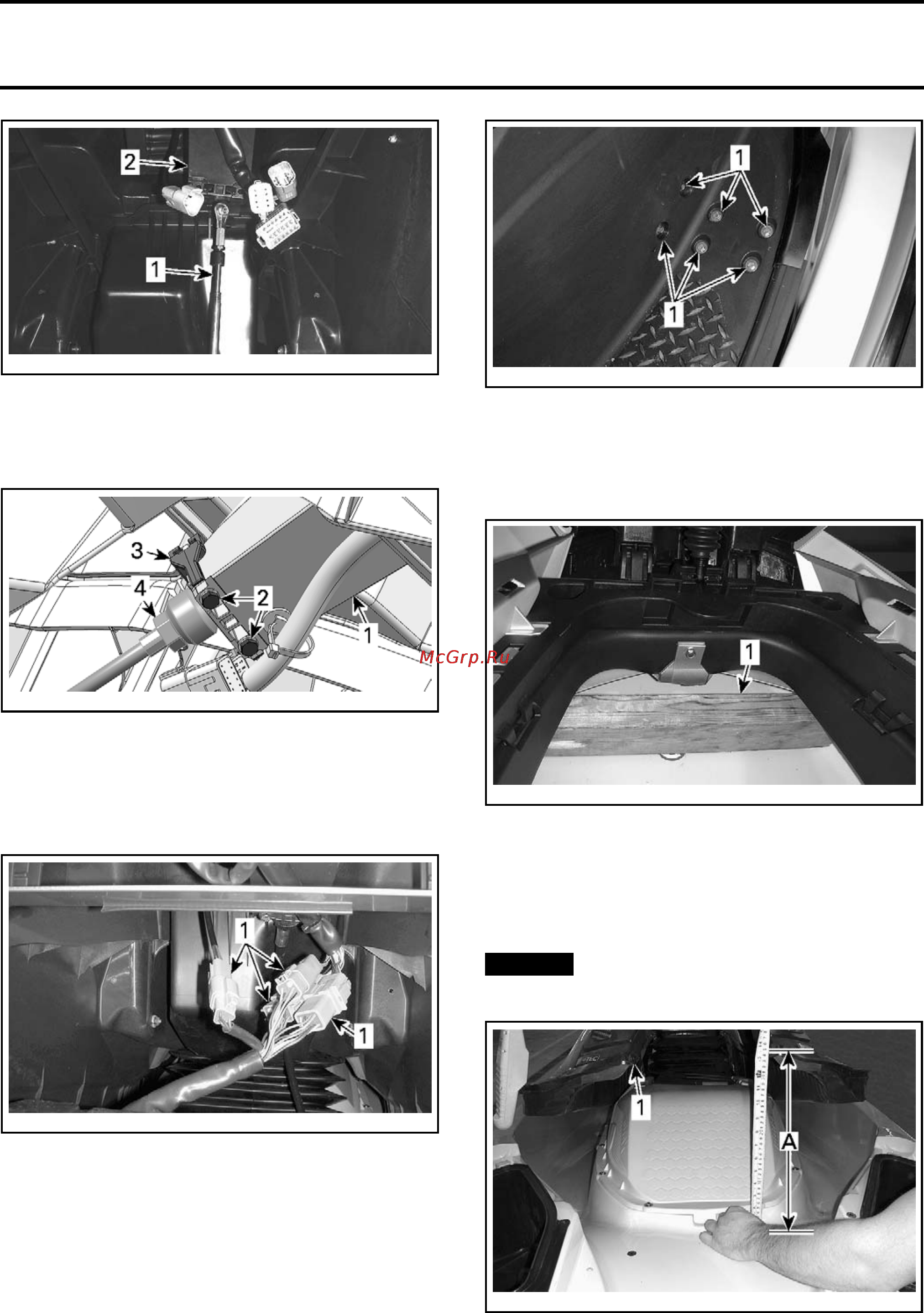

smr2009-042-074_a
1. Steering cable
2. Steering column
3. Install steering cable clamp and its bolts. Do
not tighten bolts yet.
smr2009-042-007_a
1. Steering column
2. Steerin
g column clamp bolts
3. Steering column clamp
4. Steering cable adjusting nut
4. Connec
t the four electrical connectors under
moving
deck.
smr2009-042-005_a
1. Connect these connectors
5. Lower the front of moving deck and secure it
on both lateral supports using NEW screws.
smr2009-042-015_a
RH SIDE SHOWN
1. Retaining screws (new)
6. Remove pieces of wood located under lateral
supports and reposition one under moving deck
front area.
smr2009-042-090_a
1. Install
piece of wood here
7. Remove the front lifting straps.
8. Open se
at.
9. Raise rear of moving deck until suspension is
clearofmovingdeck.
NOTICE
Make su
re not to raise the rear of
moving
deck more than 340 mm (13-1/2 in).
smr2009-042-023_a
1. Use
this rivet as reference point
A. 340 mm (13-1/2 in)
474
smr2009-042
