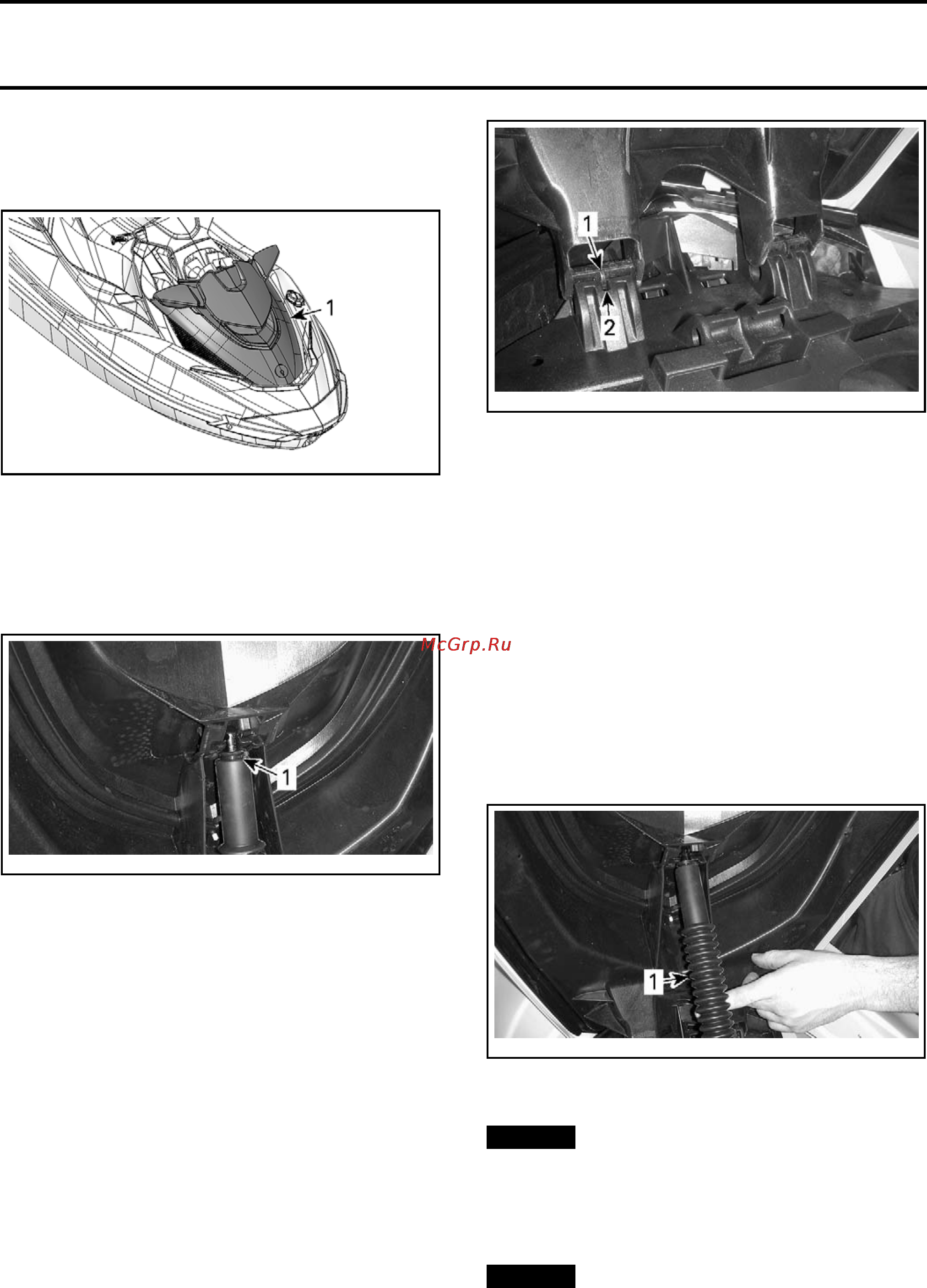

Section 07 BODY AND HULL
Subsection 02 (BODY)
STORAGE COMPARTMENT
COVER
smr2009-042-024_a
1. Storage compartment cover
Storage Compartment Cover Removal
1. Open cover.
2. Cut locking tie retaining the bellows of gas
shock.
smr2009-042-028_a
1. Cut this locking tie
3. Move bellows downward.
4. Unscrew gas shock from its upper attachment.
5. Remove gas shock from vehicle.
6. Open cover completely.
7. Align cover hinge keys with front body module
slots.
8. Pull up cover to remove it.
smr2009-042-029_a
1. Cover hinge key
2. Front body module slot
Storage Compartment Cover
Installation
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Remove gas shock attachment from cover.
Apply
LOCTITE 243 (BLUE) (P/N 293 800 060) on
threads of shock absorber body.
Tighten manually the attachment on gas shock.
Install the bellows and secure it using a locking tie.
Install the gas shock on cover.
NOTE: The corrugated section of bellows must
pointed downward.
smr2009-042-030_a
1. Corrugated section
Install
cover on vehicle.
NOTICE
Make sure to insert cover hinges
completely. A click must be heard to indicate
complete insertion.
Position the gas shock lower attachment on cavity
opening.
NOTICE
To avoi
d breaking the attachment,
do not f
orce to insert it in cavity.
476 smr2009-042
