Section 07 BODY AND HULL

Subsection 02 (BODY)

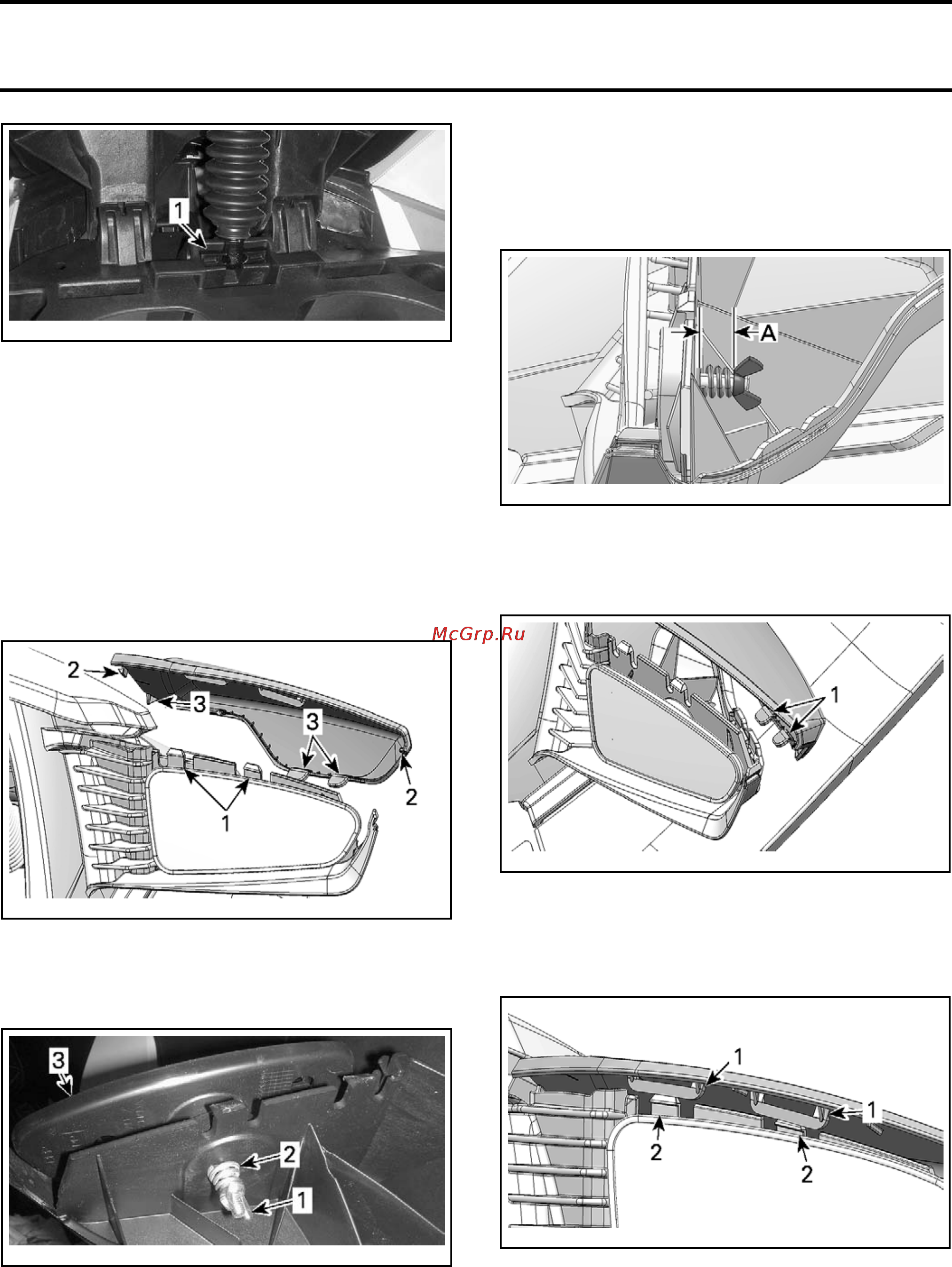

smr2009-042-031_a

1. Lower attachment in its cavity

Close cover t

o lock the bottom of the gas shock.

MIRRORS

Mirror Replacement

1. Remove the m

irror trim.

1.1 Using a small screwdriver, unlock both

front tabs securing the front of mirror

trim.

1.2 Tilt the trim forward and remove it.

smr2009-042-042_a

1. Front retaining tabs

2. Side ret

aining tabs

3. Locating tabs

2. Unscrew wing nut and spring securing mirror.

smr2009-042-040_a

1. Wing nut

2. Spring

3. Mirror

3. Install the new mirror and tighten wing nut.

3.1 The mirror adjustment is correct

when the spring length is between

10 mm and 12 mm (13/32 in and 15/32 in).

smr2009-042-041_a

A. 10 mm to 12 mm (13/32 in to 15/32 in)

4. Install t

he mirror trim.

4.1 Install the front locating tabs.

smr2009-042-043_a

1. Front

locating tabs

4.2 Down the rear part of trim. Lift up the rear

edge and press the center of trim to posi-

tion retainers over front retaining tabs.

smr2009-042-044_a

1. Trim retainers

2. Retaining tabs

smr2009-042 477
