Section 07 BODY AND HULL

Subsection 02 (BODY)

GLOVE BOX COVER

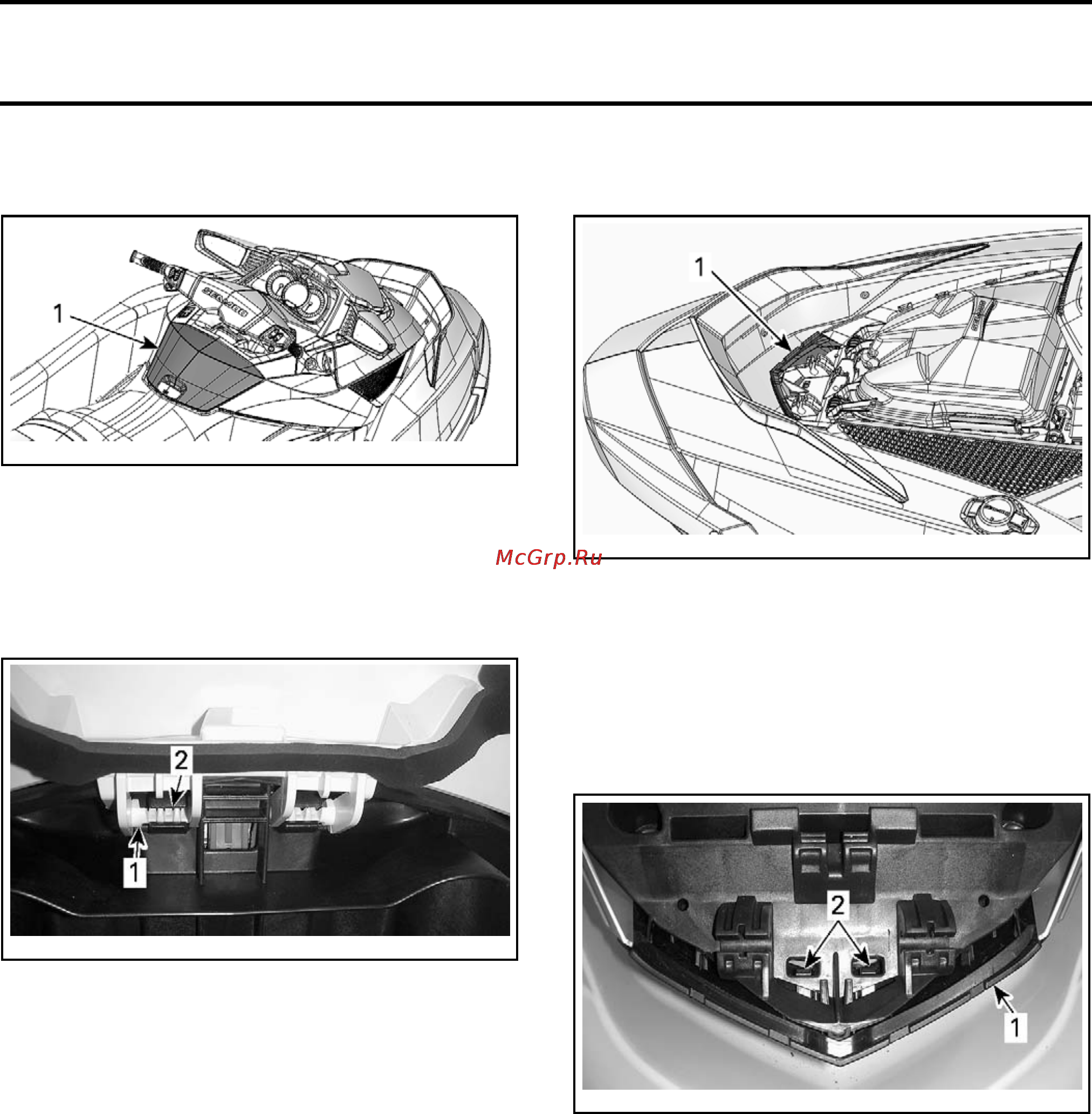

smr2009-042-055_a

1. Glove box cover

Glove Box Cover Removal

1. Move steering in its upper position.

2. Open glove box cover until cover hinges are

aligned with front body module openings.

smr2009-042-025_a

1. Glove box cover hinge

2. Front body module opening

3. Pull the bottom of cover gently to release

hinges.

Glove Box Cover Installation

Reverse the removal procedure.

FRONT GRILLE

smr2009-042-056_a

LOCATED UNDER STORAGE COMPARTMENT COVER

1. Front grille

Front Grille Removal

1. Remove the

STORAGE COMPARTMENT

COVER

, see procedure in this subsection.

2. Press on both tabs securing front grille to front

body module.

smr2009-042-054_a

1. Front grille

2. Retaining tabs

3. Remove grille.

Front Grille Installation

The installation is the reverse of the removal pro-

cedure.

478 smr2009-042
