Section 07 BODY AND HULL

Subsection 02 (BODY)

BODY COVER

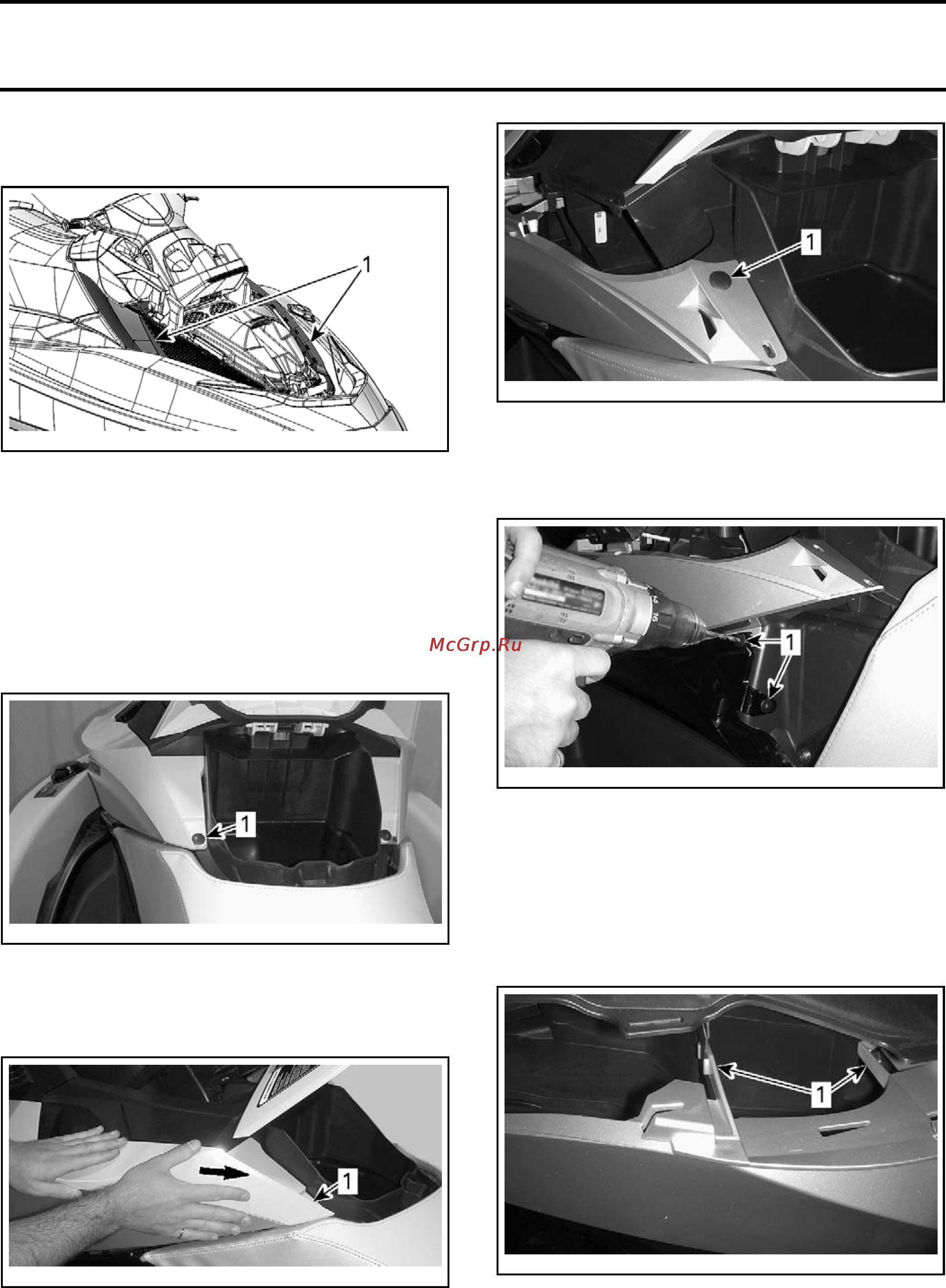

smr2009-042-057_a

1. Body covers

Body Cover Removal

1. Remove the

STORAGE COMPARTMENT

COVER

, see procedure in this subsection.

2. Remove the

FRONT GRILLE

, see procedure in

this subsection.

3. Remove the plastic push-in clip securing the up-

per trim.

ssi2009-003-002_a

LH SIDE SHOWN

1. Remove this plastic push-in clip

4. Move both upper trims rearward and remove

them.

ssi2009-003-003_a

LH SIDE SHOWN

1. LH upper trim

5. Remove the plastic push-in clips retaining the

LH and RH trims.

ssi2009-003-004_a

LH SIDE SHOWN

1. Remove this plastic push-in clip

6. Open seat and using a 3/16" drill bit, drill the

rivets securing the seat trims.

ssi2009-003-008_b

LH SIDE S

HOWN

1. Remove these rivets

7. Remove seat trim and drill the front rivet secur-

ing the body cover.

8. At the front of front body module, remove

screws or rivets retaining both body cover.

9. Unlock

rear and center retaining tabs.

smr2009-042-058_a

RH SIDE SHOWN

1. Rear retaining tabs

smr2009-042 479
