Section 07 BODY AND HULL

Subsection 02 (BODY)

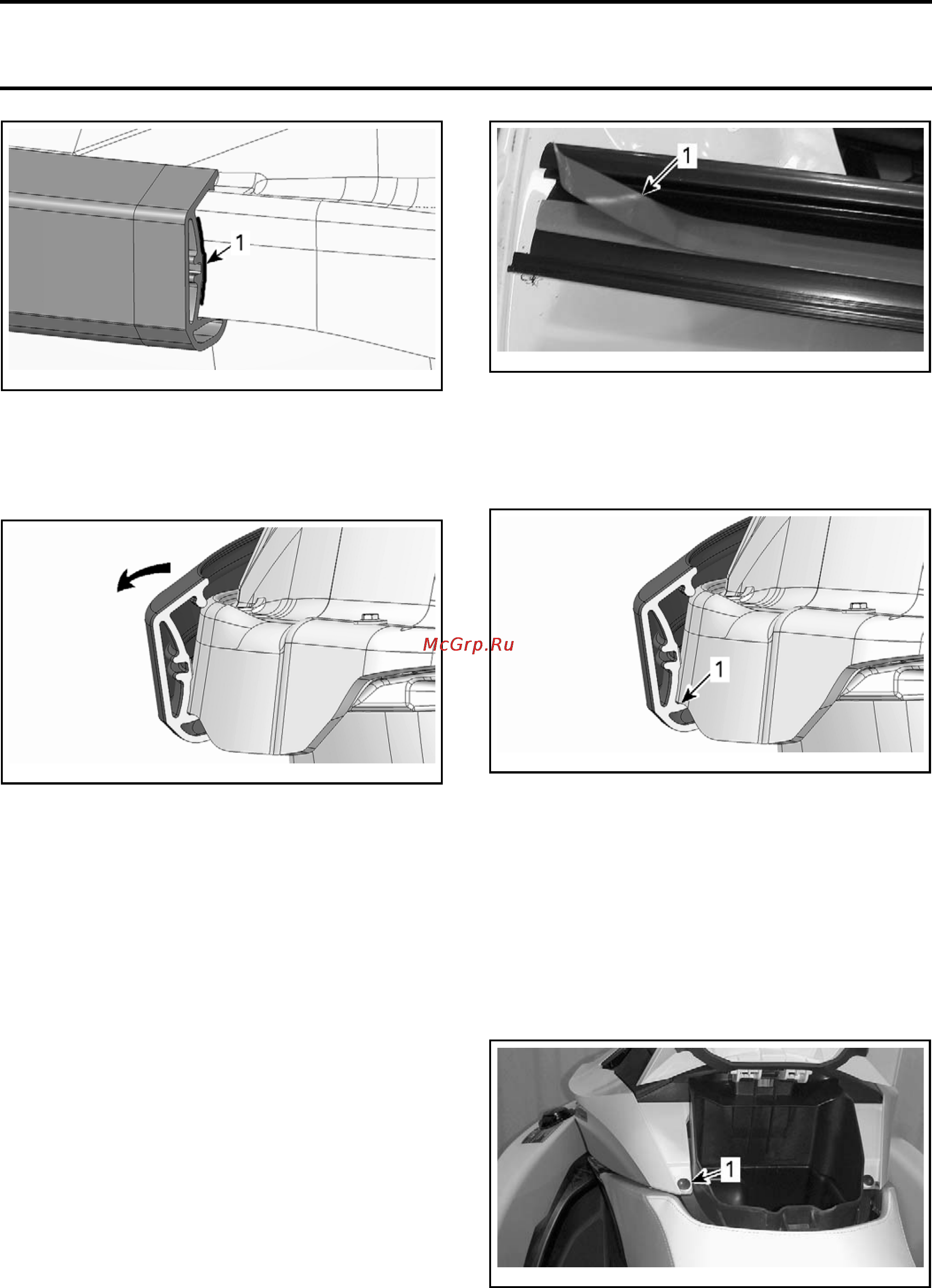

smr2009-042-051_a

1. Trace a line here

3. Pull the top of bumper to unclip it from body.

NOTE: Aheatguncanbeusedtosoftenside

bumper.

smr2009-042-052_a

Bumper Installation

Front and Rear Bumper

The inst

allation is the reverse of the removal pro-

cedure.

Tighten bumper screws to 5 N•m (44 lbf•in).

Side Bumpers

1. Remove

all remaining residues of the mounting

tape.

2. Clean bumper area using isopropyl alcohol.

3. Remove the protective skin on mounting tape.

smr2009-042-053_a

1. Protective skin

4. Insert bumper over body lip.

4.1 Insert lower section first.

4.2 Insert upper section last.

smr2009-042-052_b

1. Make sure bumper is positioned correctly

NOTE: A

heat gun can be used to soften side

bumper

SPEED-

TIE UNIT

Front Speed-Tie Unit Removal

1. Open th

e glove box.

2. Remove the plastic push-in clip securing the LH

upper trim.

ssi2009-003-002_a

1. Remove this plastic push-in clip

3. Move upper trim rearward and remove it.

484 smr2009-042
