Section 07 BODY AND HULL

Subsection 02 (BODY)

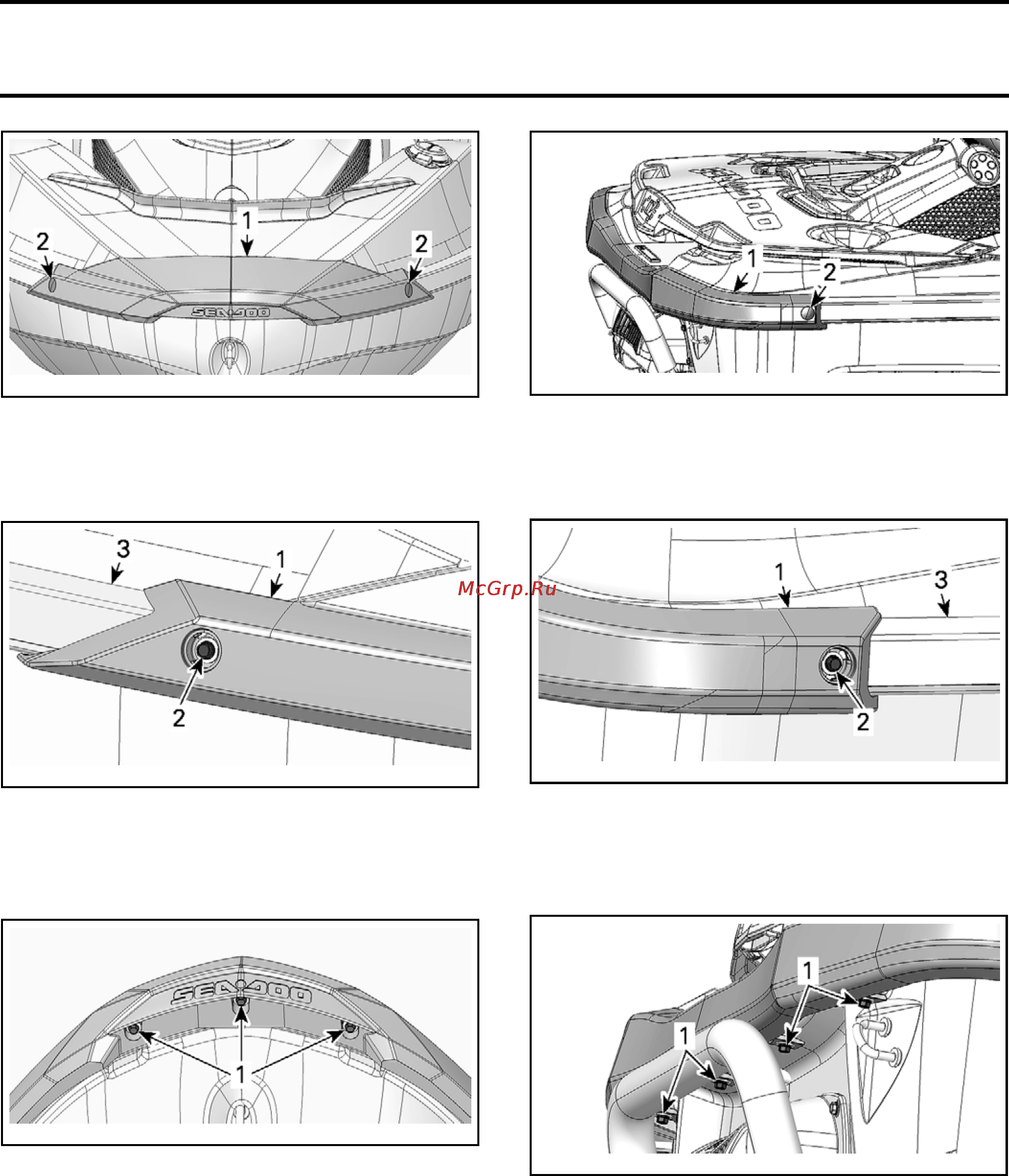

smr2009-042-045_a

1. Front bumper

2. Protective caps

2. Remove side screws securing front bumper to

body.

smr2009-042-046_a

FROM RH S

IDE OF VEHICLE

1. Front bumper

2. Retaining screw

3. Side bum

per

3. Remove screws located under front bumper.

smr2009-042-047_a

UNDERNEATH FRONT OF VEHICLE

1. Retaining screws

4. Remove front bumper from vehicle.

Rear Bumper

1. Remove both protective caps (one on each

side).

smr2009-042-048_a

1. Rear bumper

2. Protective cap

2. Remove side screws securing rear bumper to

body.

smr2009-042-049_a

FROM RH SIDE OF VEHICLE

1. Rear bum

per

2. Retaining screw

3. Side bumper

3. Remove

screws located under rear bumper.

smr2009-042-050_a

1. Retaining screws

4. Remove rear bumper from vehicle.

Side Bumpers

1. Remove front and rear bumpers.

2. Using a marker, trace a line at bumper end's.

These marks will be used during installation.

smr2009-042 483
