Section 07 BODY AND HULL

Subsection 02 (BODY)

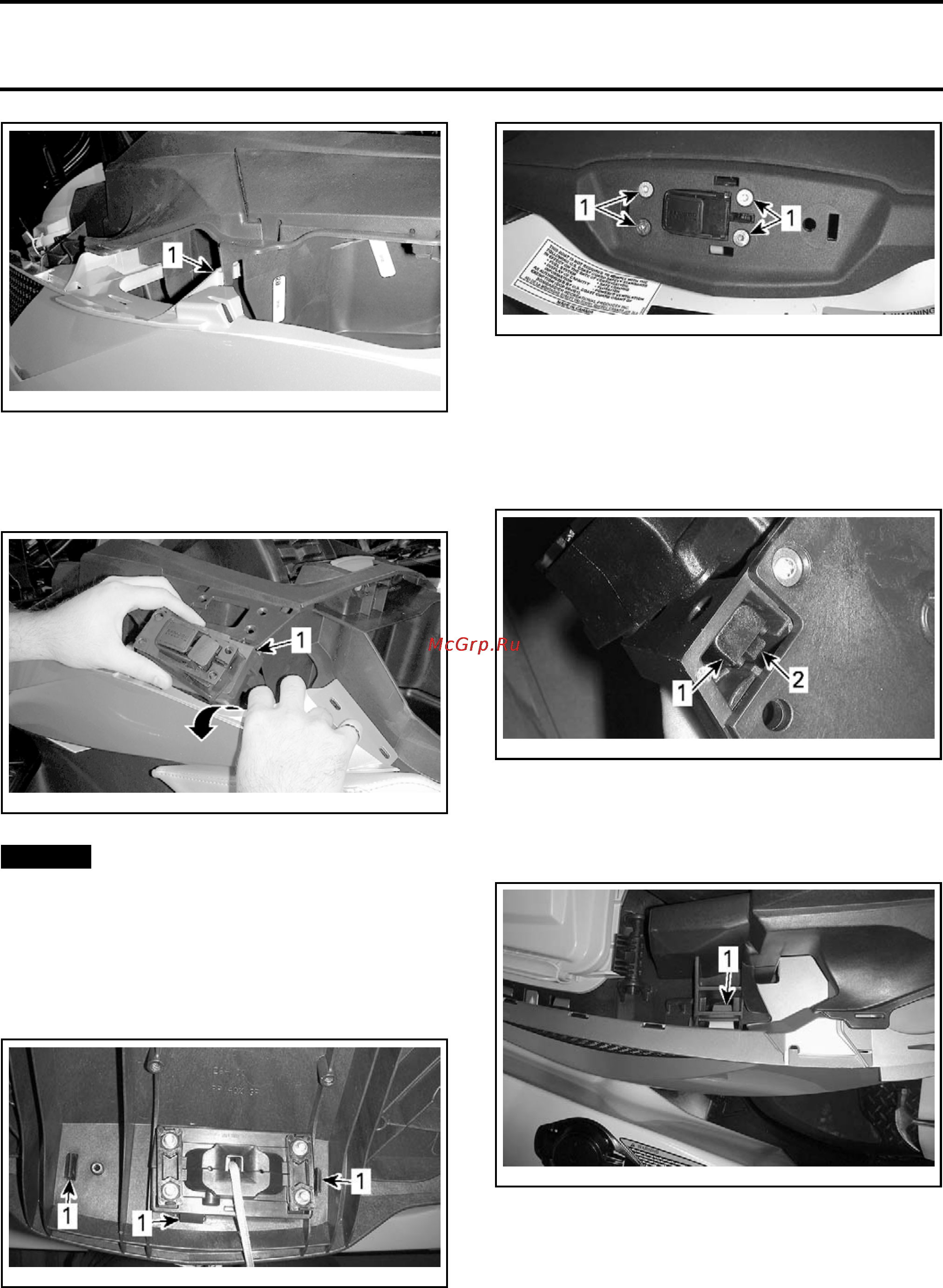

ssi2009-003-010_a

1. Rear locking tab

13. Lightly pull the top of LH trim and remove the

reel of the Speed-Tie unit from its location as

shown.

ssi2009

-003-011_a

1. Speed-Tie unit reel

NOTICE

During Speed-Tie unit removal, be

careful not to damage the LH trim.

Rear Sp

eed-Tie Unit Removal

1. Remove screws securing the Speed-Tie unit to

the boarding platform.

2. Remove rear trim by releasing retaining tabs.

smr2009-042-035_a

1. Retaining tabs

3. Remove screws securing the locking mecha-

nism to the boarding platform.

smr2009-042-036_a

1. Retaining screws

4. Remove the Speed-Tie unit from vehicle.

Front Speed-Tie Unit Installation

1. Ensure both double cage nuts are correctly in-

serted into Speed-Tie unit cavities.

ssi2009-003-007_a

1. Double cage nut

2. Positio

ning tab

2. Insert the Speed-Tie unit in vehicle.

2.1 Unlock

the front tab securing the LH trim.

ssi2009-003-009_a

1. Front locking tab

2.2 Unlatch the rear tab.

486 smr2009-042
