Section 07 BODY AND HULL

Subsection 02 (BODY)

ssi2009-003-030

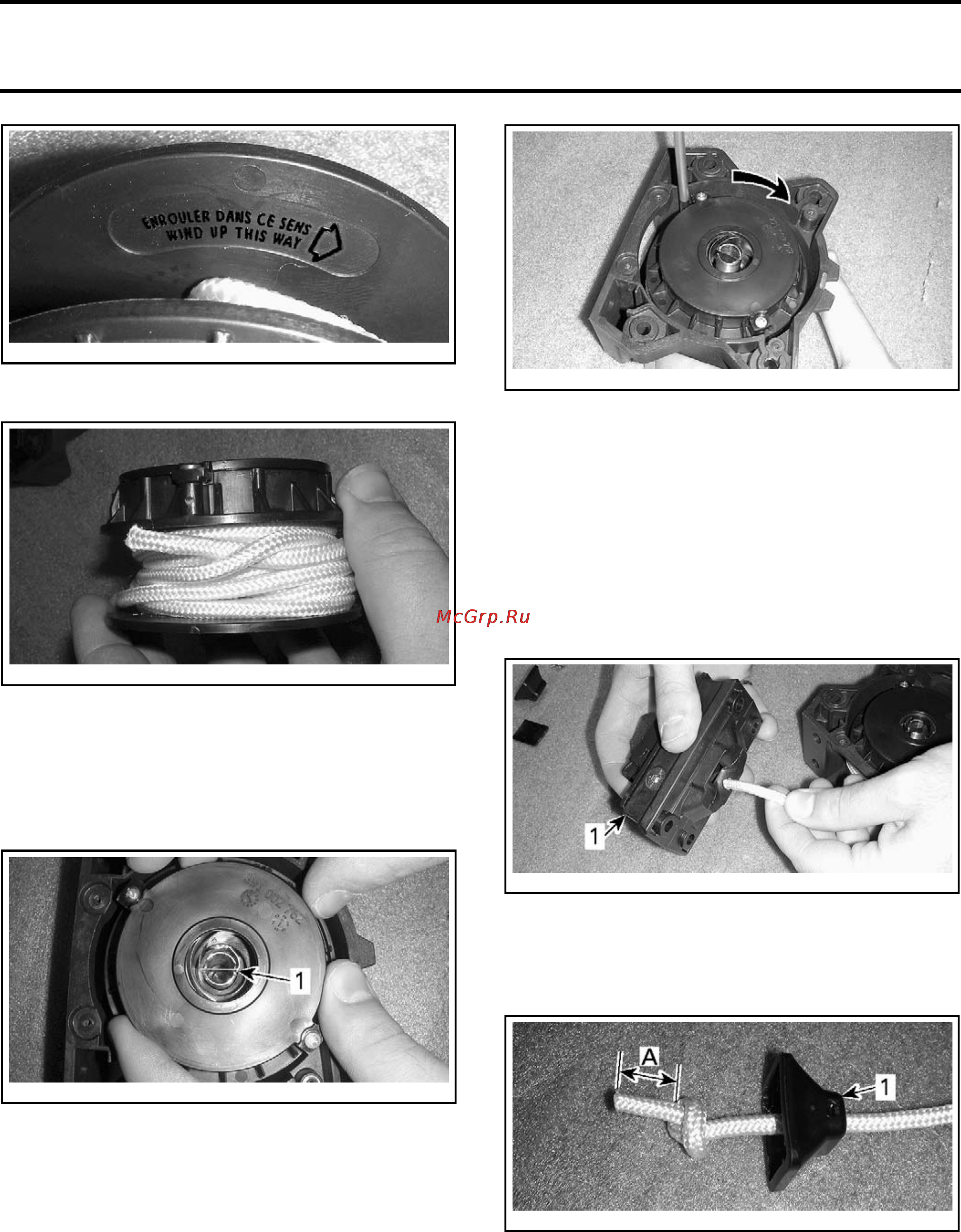

15. Lock the end of rope as shown.

ssi2009-003-031

16. Install rewind unit into housing.

16.1 Install the rewind unit with the retaining

screw downward. The end of rope must

be placed in front of the housing opening.

16.2 Insert spring in shaft notch.

ssi2009-003-032_a

1. Spring in notch

NOTE

: Ensure spring is properly inserted in

notc

h.

17. Using a screwdriver, crank rewind spring ex-

actly 7 turns (clockwise).

ssi2009-003-033_a

18. Unlock the end of the rope and pull it out by

the housing opening.

NOTE: Be careful not to release the rope and the

spring. Otherwise you will need to remove drum

and repeat the cranking operation.

19. Install locking mechanism and rope.

19.1 Pull out rope end.

19.2 Insert end of rope through locking mech-

anism.

ssi2009-003-034_a

1. Locking mechanism

19.3 Pass ro

pe end through the rope button

and tie

a knot on the rope end, see pic-

ture.

ssi2009-003-035_a

1. Rope

A. 18 mm

± 6 mm (23/32 in ± 15/64 in)

19.4 Pull knot in the button and install the

button cap. Make sure cap is properly

snapped.

20. Ins

tall Speed-Tie cover. Tighten screws to

0.9

N•m ± 0.1 N•m (8 lbf•in ±1lbf•in).

492 smr2009-042
