Section 07 BODY AND HULL

Subsection 02 (BODY)

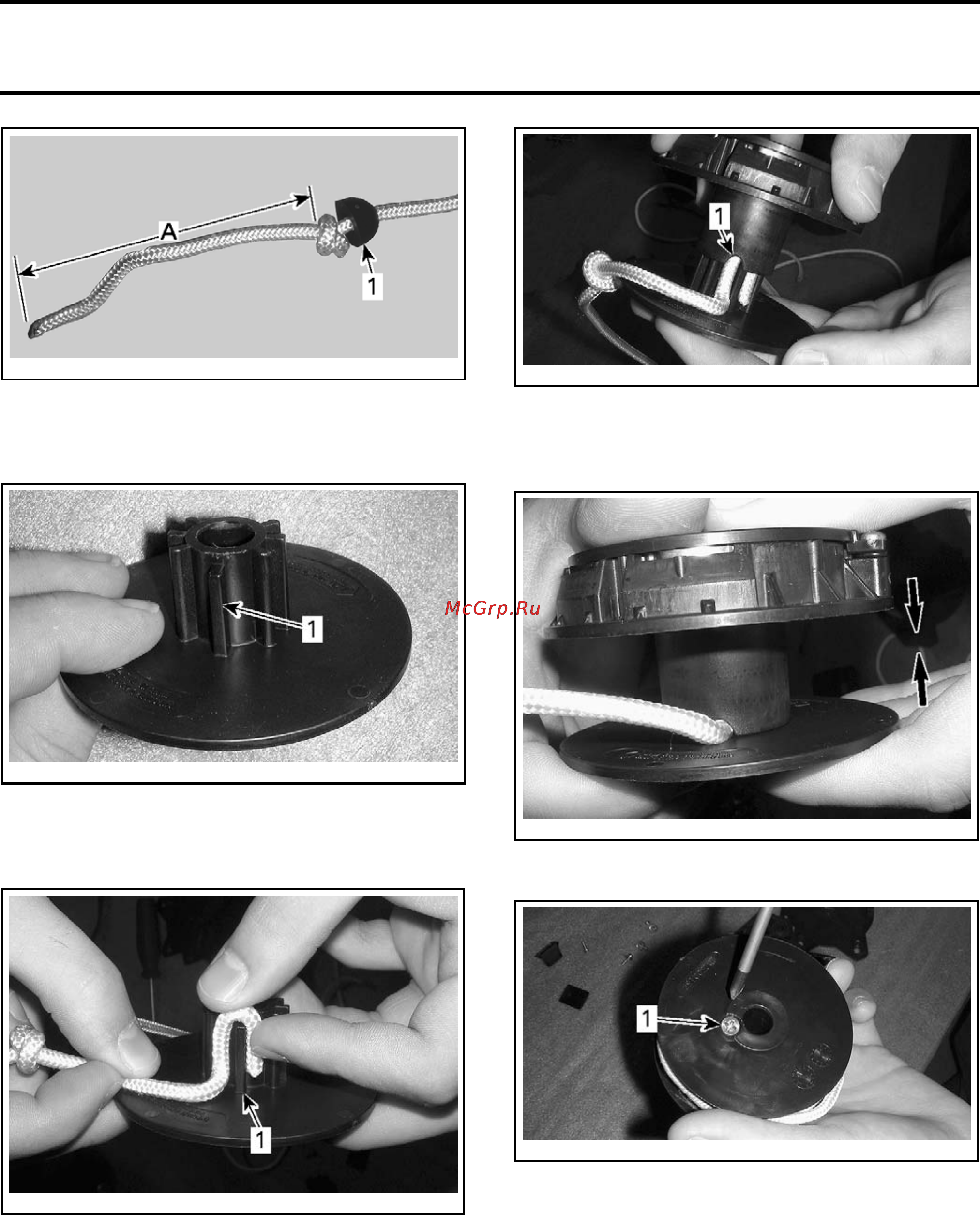

ssi2009-003-025_a

1. Inner stopper

A. 106 mm ± 6 mm (4-1/8 in ± 15/64 in)

11. On rewind unit base, identify the short tongue.

ssi2009-003-026_a

1. Short tongue

12. Instal

l the rope end (with the knot) over the

short t

ongue as shown.

ssi2009-003-027_a

1. Sho

rt tongue

13. Install the rewind unit cover.

13.

Ali

gn the cover notch and the rope.

ssi2009-003-028_a

1. Cover notch

13.2 Press in the cover until both parts are

completely pressed together.

ssi2009-003-029_a

13.3 Install the retaining screw.

ssi2009-003-021_a

1. Retaining screw

13.4 Tighten screw to 1.1 N•m ± 0.1 N•m

(10 lbf•in ±1lbf•in).

14. Turn rope clockwise. Check indications on in-

ner side of rewind unit.

smr2009-042 491
