Section 07 BODY AND HULL

Subsection 02 (BODY)

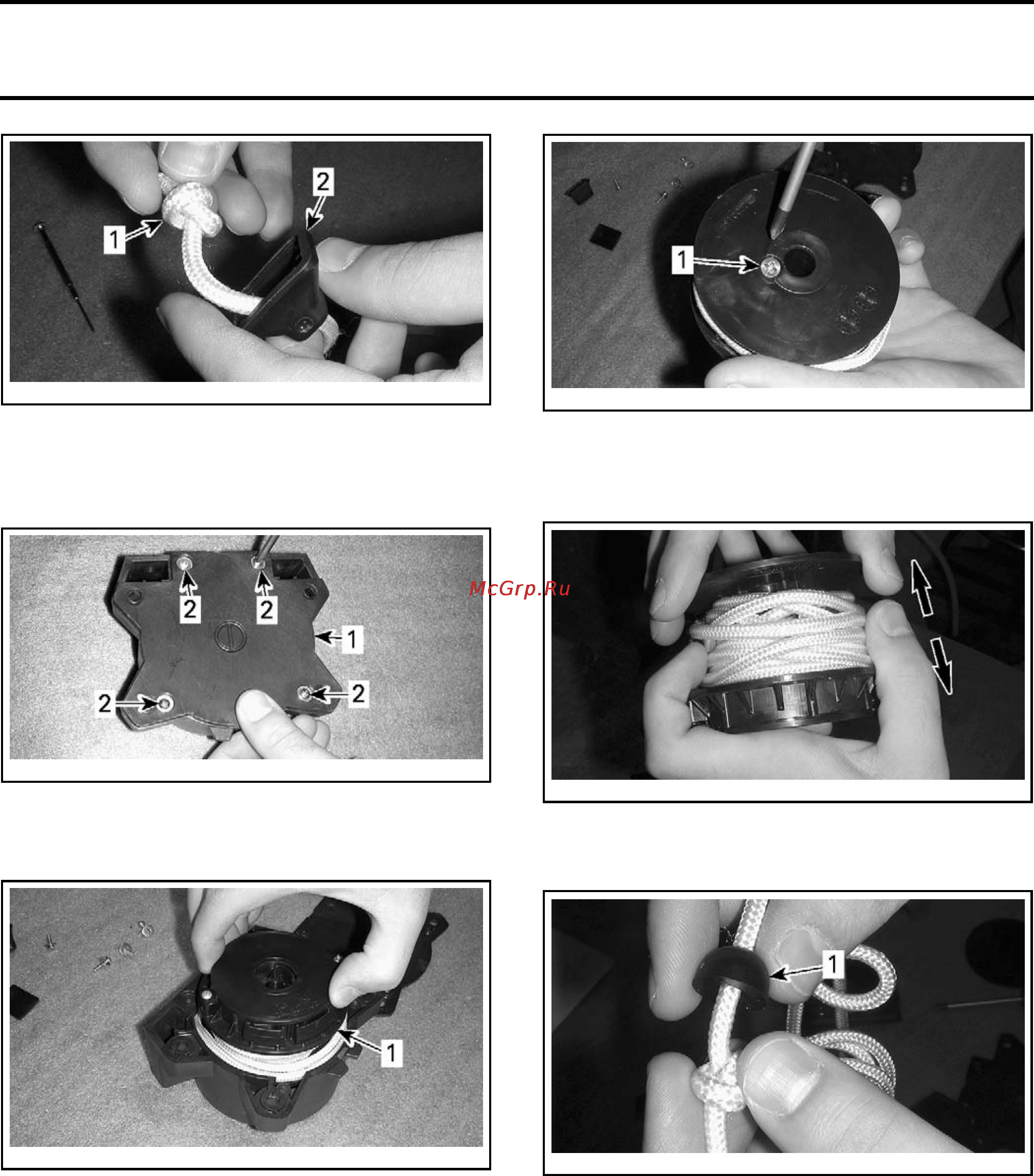

ssi2009-003-018_a

1. Untie this knot

4. Remove the locking mechanism and let the

rope retracts into housing.

5. Remove the back cover.

ssi2009-

003-019_a

1. Back cover

2. Retaining screws

6. Remove t

he rewind unit.

ssi2009-003-020_a

1. Rewind unit

7. Turn the unit upside down and remove the re-

taining screw.

ssi2009-003-021_a

1. Retaining screw

8. Split the rewind unit and remove damaged

rope.

ssi2009-003-022_a

9. Before discarding rope, remove and keep the

inner stopper.

ssi2009-003-023_a

1. Inner stopper

10. Insert the inner stopper on new rope and tie

a knot near the end of the line. Position the

inner stopper in order to its flat side leans

against the knot.

490 smr2009-042
