Section 07 BODY AND HULL
Subsection 02 (BODY)

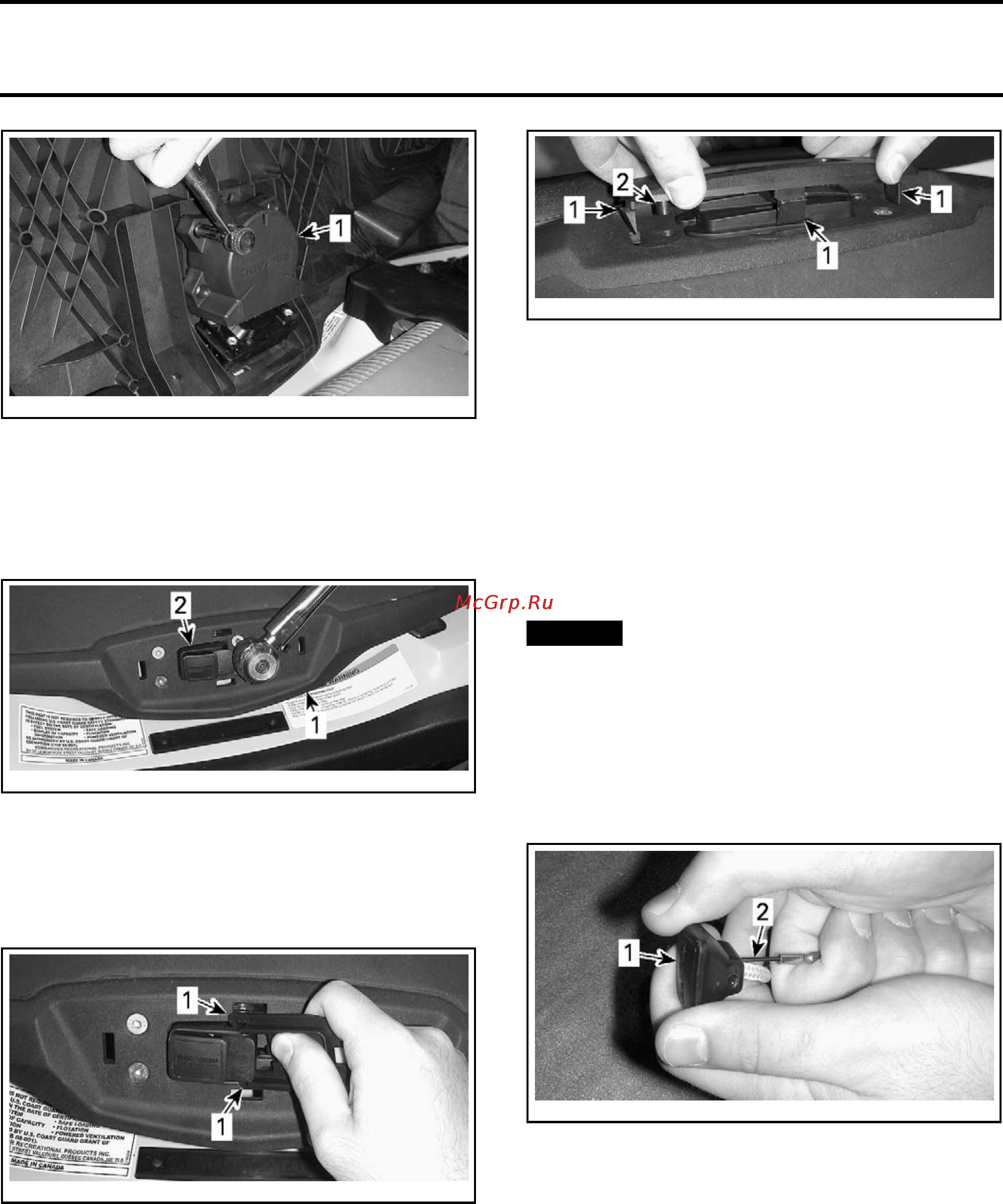

ssi2009-003-105_a
1. Speed-Tie unit
9. Close boarding platform.
10. Tighten tapered screws securing the lock-
ing mechanism to 2.5 N•m ± 0.5 N•m
(22 lbf•in ±4lbf•in).
ssi2009-003-106_a
1. Boarding platform
2. Locking mechanism
11. Install the cam trim.
11.1 Insert both cam trim retaining hooks into
locking mechanism openings.
ssi2009-003-107_a
1. Ret
aining hooks
11.2 Press down the cam trim against board-
ing platform.
12. Ins
tall the rear trim.
12.1 Align tabs and alignment pin with corre-
sponding openings.
ssi2009-003-109_a
1. Tabs
2. Alignment pin
12.2 Press trim in place.
13. Test Speed-Tie operation.
Speed-Tie Unit Cleaning
A minimum of maintenance is required to keep
the Speed-Tie unit and the rope in serviceable con-
dition.
Clean the locking mechanism and rope with fresh
water to remove salt, sand or other deposits.
NOTICE
Do not use a high pressure washer
to clean the Speed-Tie unit.
Let dry.
Speed-Tie Rope Replacement
1. Remove the Speed-Tie unit from the vehicle.
2. Using a small tool, remove the rope cap.
ssi2009-003-017_a
1. cap
2. Small screwdriver
3. Untie the knot and remove the button.
smr2009-042 489
