Section 07 BODY AND HULL

Subsection 02 (BODY)

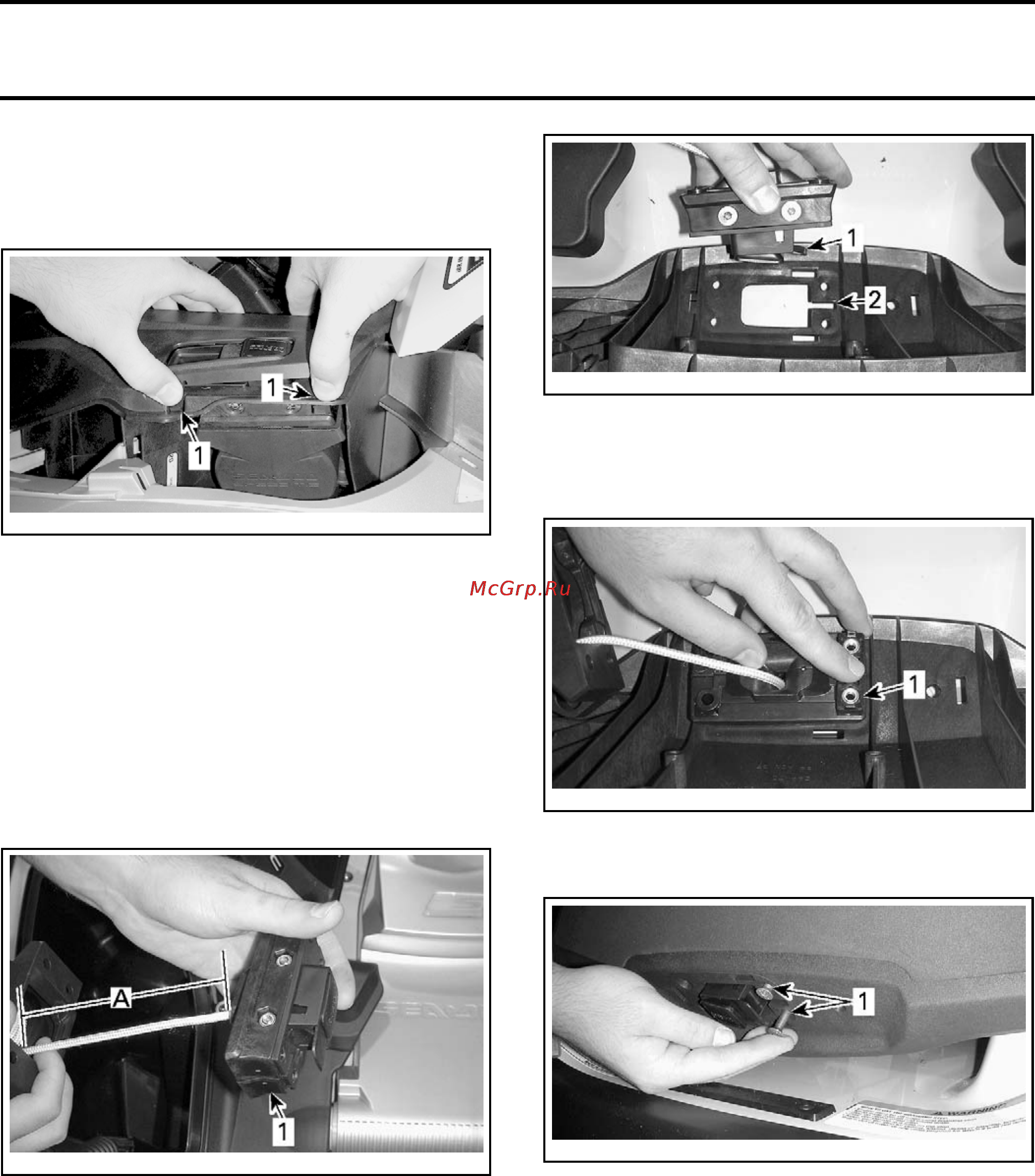

9. Install the front trim.

9.1 Insert top tabs and align lower tabs with

openings.

ssi2009-003-016_a

1. Tabs

9.2 Press trim in place.

10. Test Spee

d-Tie operation.

11. Reinstall all removed parts.

Rear Spee

d-Tie Unit Installation

1. Lift up the boarding platform.

2. To facilitate the locking mechanism insertion,

temporarily pull approximately 200 mm (8 in) of

rope.

ssi2009-003-101_a

1. Locking mechanism

A. 200 mm (8 in)

3. Insert the locking mechanism in boarding plat-

form opening. Position the locking lever toward

the slot.

ssi2009-003-102_a

1. Locking lever

2. Boarding platform slot

4. Position a double cage nut on the locking mech-

anism.

ssi2009-003-103_a

1. Double cage nut

5. Secure i

t using two M6 x 45 tapered screws.

ssi2009-003-104_a

1. M6 x 45 tapered screws

6. Install the second double cage nut.

7. Secure the reel of the Speed-Tie unit on board-

ing platform using four hexagonal plastite

screws #10 x 7/8".

8. Tighten screws to 5 N•m ± 1 N•m

(44 lbf•in ±9lbf•in).

488 smr2009-042
