Section 07 BODY AND HULL

Subsection 03 (HULL)

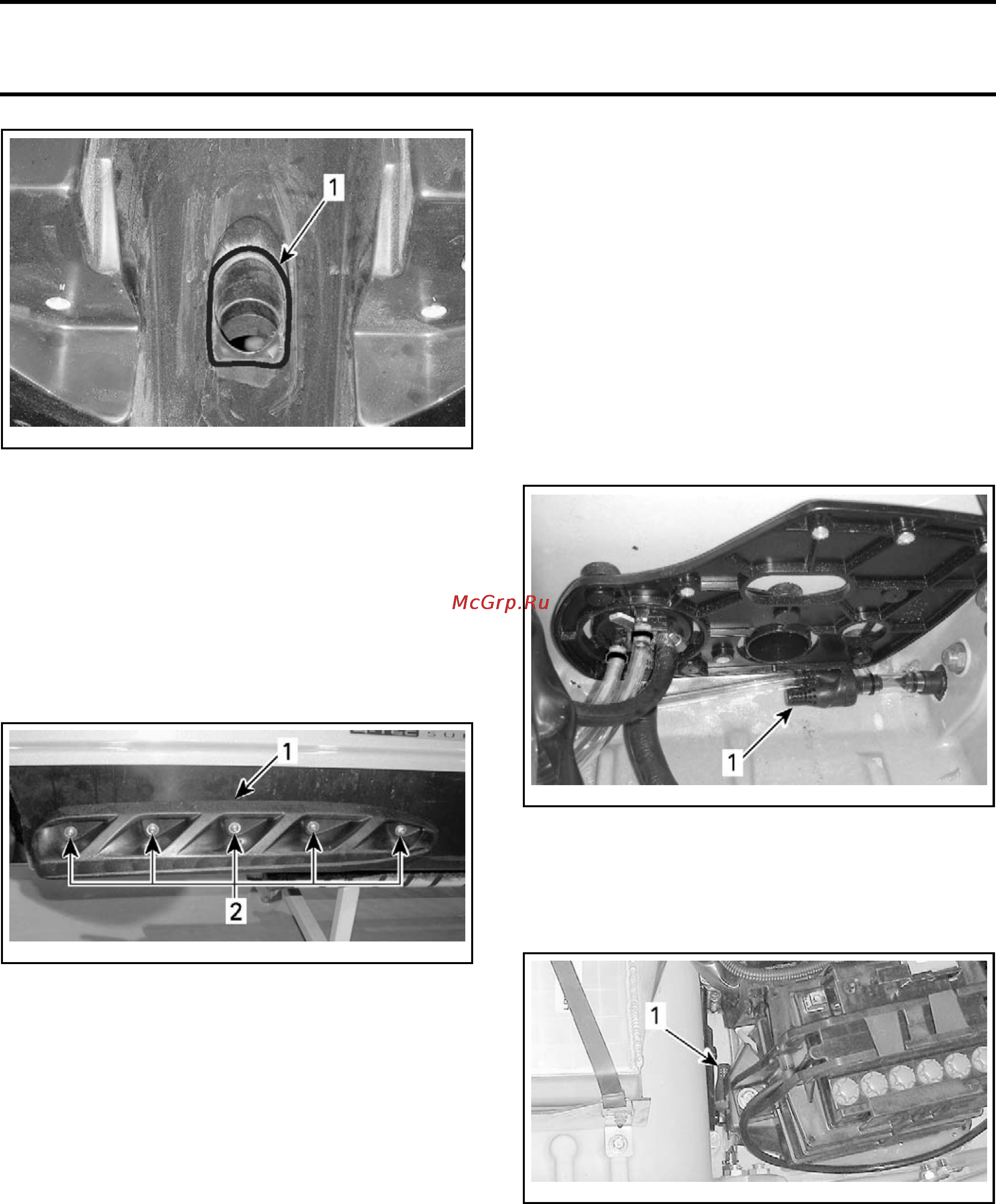

smr2009-043-023_a

TYPICAL

1. Fitting properly seated, excess sealant removed

SPONSON

NOTE: Removal and installation procedure for RH

and LH sponson is the same.

Sponson Removal

Unscrew sponson retaining screws, then remove

sponson.

smr2005

-024-014_a

TYPICAL

1. Sponson

2. Bolts

Sponson Installation

1. Install

the spacers in the holes provided in the

sponson

on the hull side of the sponson. See

explod

ed view.

2. Thread a screw with washer through each hole

and install sponson on watercraft. Torque spon-

son retaining screws as specified in exploded

view.

BAILER SYSTEM

Two bailer pick ups (one each side), serve to drain

the bilge of the watercraft when it is in operation.

The bailer pick ups are connected through a hose

system to two syphon tubes mounted in the jet

pump venturi that draw the water out of the bilge

through the bailer pick ups. The bailers are also

connected to the bilge drain plugs in the stern.

Bailer Pick-Up Inspection

1. Open boarding platform and remove the stor-

age bins.

2. Inside hull, check holes in the bailer pick-ups to

see if they are obstructed. Clean if necessary.

NOTE: On the port side (LH), the bailer is located

below the iBR actuator.

smr2009-043-006_c

TYPICAL -

LEFT SIDE SHOWN (IBR ACTUATOR REMOVED)

1. Bailer assembly

NOTE: On the starboard side (RH), the bailer is

located between the battery support base and the

hull (jet pump tunnel).

smr2009-043-035_a

1. Starboard bailer

3. Check if the hole on each bailer hose elbow fit-

ting is obstructed. Clean both elbow fittings if

necessary.

506 smr2009-042
