Section 07 BODY AND HULL

Subsection 03 (HULL)

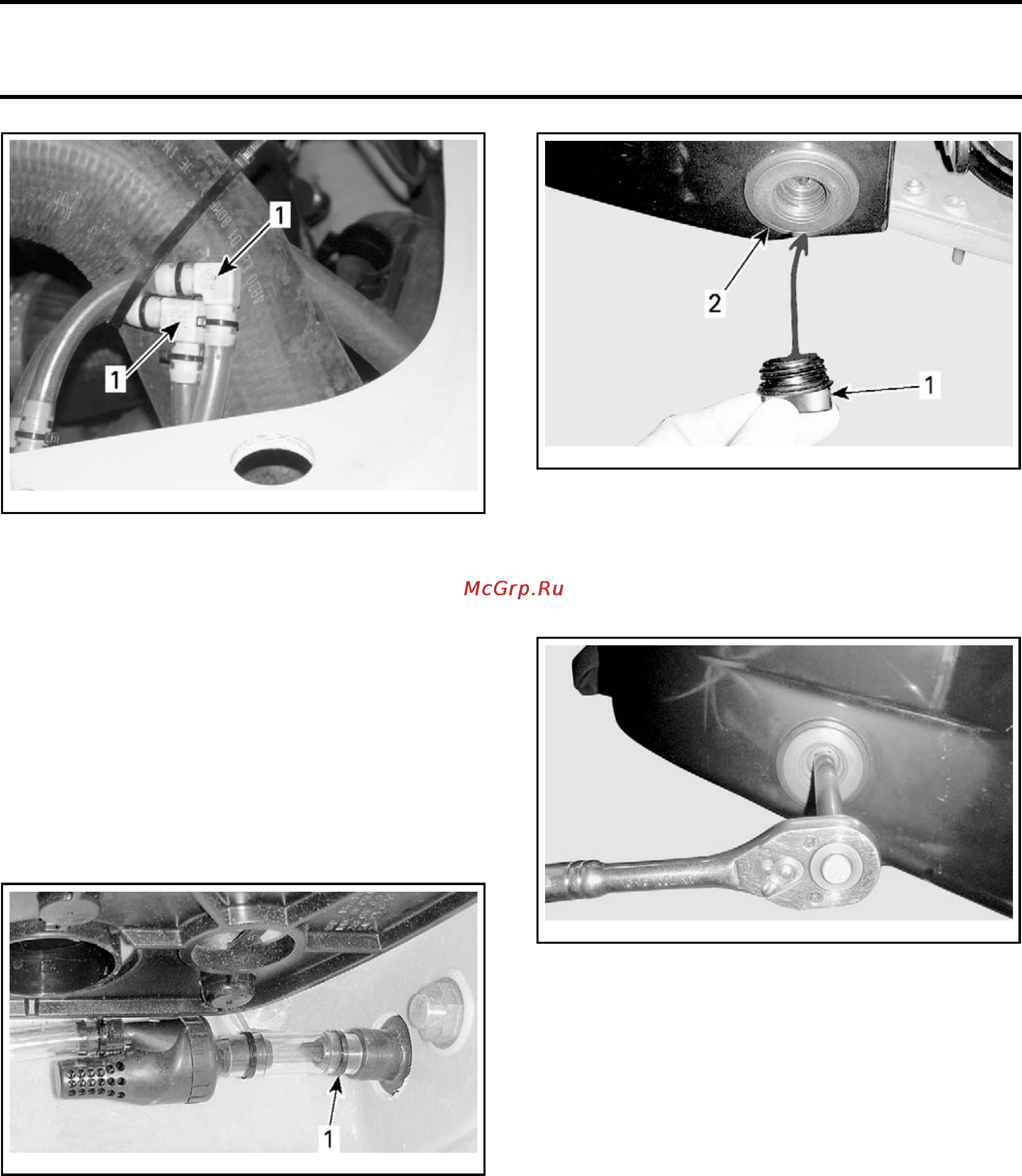

smr05-005-001_A

1. Elbow fitting holes

DRAIN PLUGS

NOTE: The two drain plugs on the stern are each

connected to a bailer. When watercraft is on dry

land, the drain plugs can be removed to manually

drain the bilge.

Drain Plug Neck Removal

1. Open the boarding platform and remove the

rear storage bins (one each side).

2. Cut locking tie securing bailer hose to the drain

plug assembly.

smr2009-043-034_a

LEFT SIDE SHOWN (IBR ACTUATOR REMOVED)

1. Cut th

is locking tie

3. Unscrew the drain plug from the drain neck and

pull the drain plug out or the neck.

smr2009-043-032_a

DRAIN PLUG REMOVAL

1. Drain plug

2. Drain neck

4. Using a ratchet handle and extension of appro-

priate size, unscrew the drain neck from the

hull.

smr2009

-043-033

DRAIN NECK REMOVAL

Drain Plug Neck Installation

1. Apply LOCTITE 577 (THREAD SEALANT) (P/N 293

800 050)

on the drain neck threads.

2. Install drain neck and torque to 16 N•m

(142 lbf•in).

3. Secure bailer hose to drain neck using a NEW

locking tie.

4. Reinstall all removed parts in the reverse order

of removal.

BOW EYELET

BowEyeletRemoval

To remove the retaining nuts on the bow moor-

ing eyelet, an access hole must be cut in the fixed

deck. An etched line in the fixed deck located un-

smr2009-042 507
