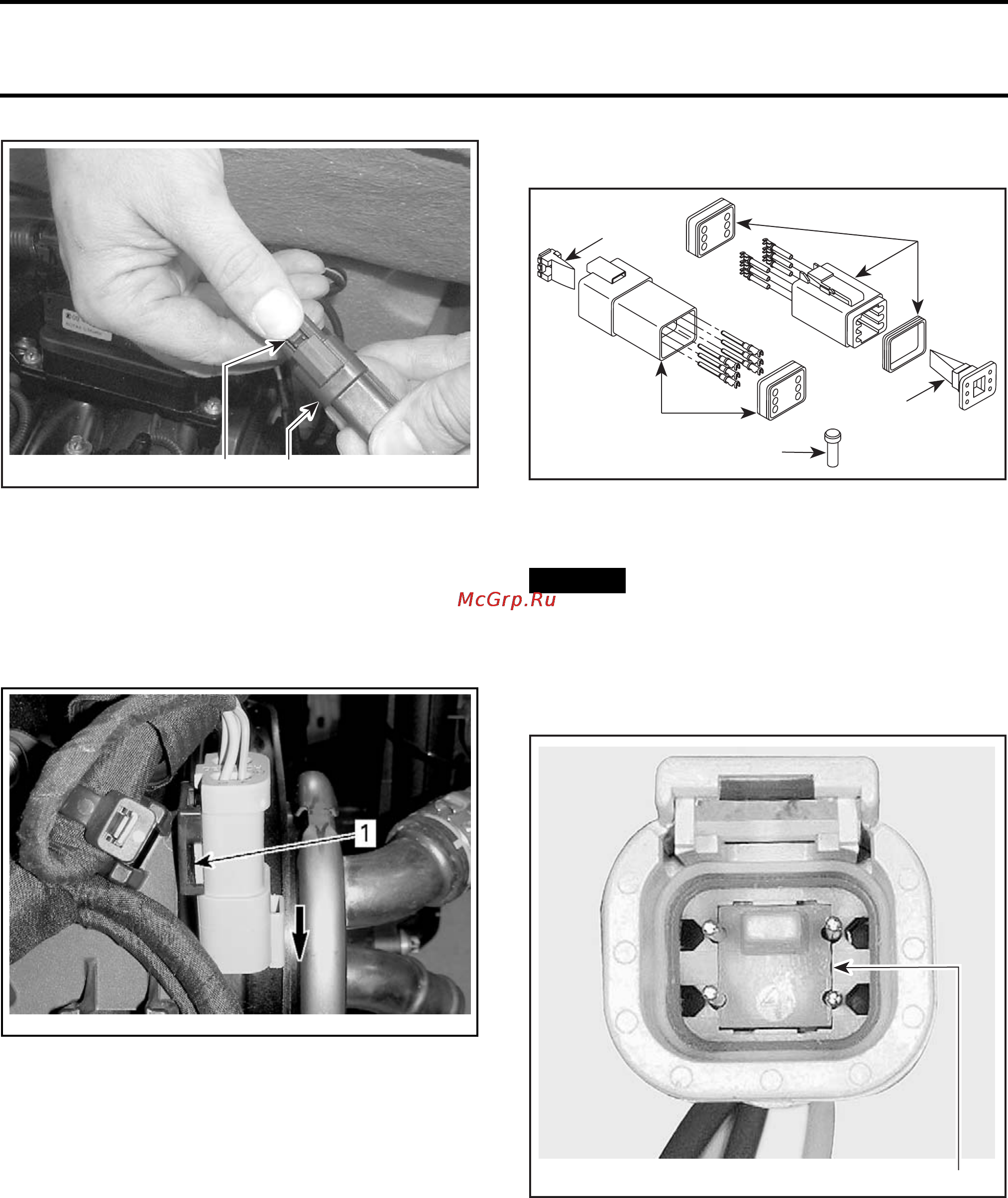

Section 09 WIRING DIAGRAM

Subsection 02 (CONNECTOR INFORMATION)

F18Z0NA

TYPICAL

1. Deutsch connectors

2. Press release button

Engine Connector

Insert a small flat screwdriver between the sup-

port and the Deutsch connectors. Pry while slid-

ing out connectors in the direction shown.

smr200

9-045-010_a

MALE CONNECTOR REMOVED FOR CLARITY PURPOSE

1. Insert screwdriver here

Connector Disassembly

F00H1CA

1. Male connector

2. Female connector

3. Secondary lock

4. Sealing cap

NOTICE

Do not apply dielectric grease on ter-

minal inside connector.

To remove terminals from connector, proceed as

follows:

– Using a long nose pliers, pull out the lock.

V01G0OA

FEMA

LE CONNECTOR

1. Female lock

520

smr2009-044
