Section 09 WIRING DIAGRAM

Subsection 02 (CONNECTOR INFORMATION)

CONNECTOR INFORMATION

SERVICE TOOLS

Description Part Number Page

CRIMPING TOOL (HEAVY GAUGE WIRE) .................................... 529 035 730 ......................................... 526

ECM ADAPTER TOOL................................................................... 529 036 166 ......................................... 523

ECM TERMINAL REMOVER 2.25................................................. 529 036 175 ......................................... 523

ECM TERMINAL REMOVER 3.36................................................. 529 036 174 ......................................... 523

SERVICE TOOLS – OTHER SUPPLIER

Description Part Number Page

AMP TERMINAL EXTRACTOR...................................................... 726503-1 .........................................525

DELPHI TERMINAL EXTRACTOR ................................................. 12094429 .........................................524

GM TERMINAL EXTRACTOR........................................................ 12094430 .........................................524

PROCEDURES

MAGNETO AND ENGINE

CONNECTOR (DEUTSCH)

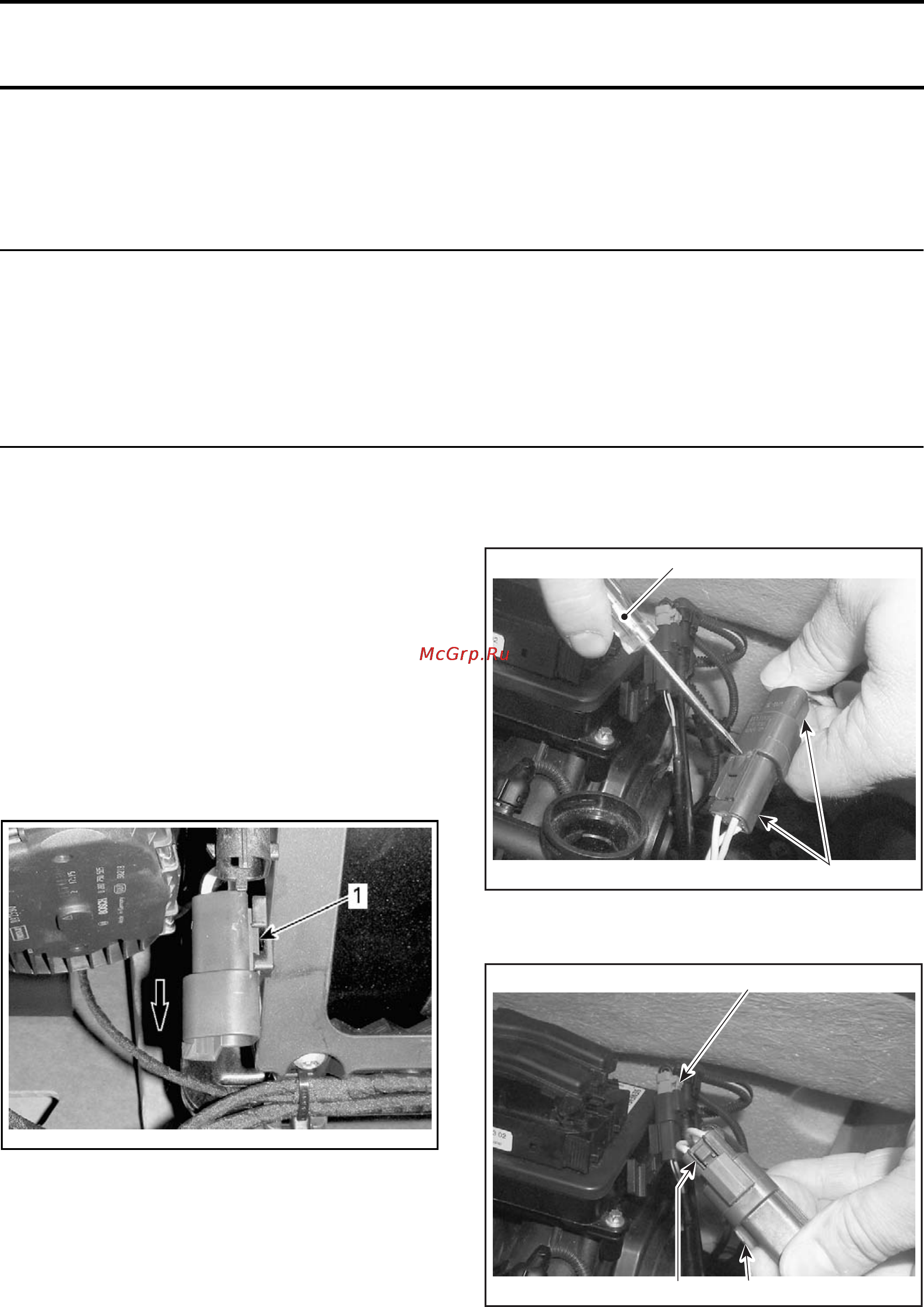

Connector Removal from its Support

Magneto Connector

Insert a small flat screwdriver between the sup-

port and the Deutsch connectors. Pry while slid-

ing out connectors in the direction shown.

smr2009-045-009_a

MALE CONNECTOR REMOVED FOR CLARITY PURPOSE

1. Insert screwdriver here

To disconnect the Deutsch connectors, twist a

small flat screwdriver between each housing to

disengage, press the release button and discon-

nect them.

F18Z0LA

TYPICAL

1. Flat screwdriver

2. Deutsch connectors

F18Z0MA

TYPICAL

1. Release

2. Deutsch connectors

smr2009-044 519
