Section 09 WIRING DIAGRAM

Subsection 02 (CONNECTOR INFORMATION)

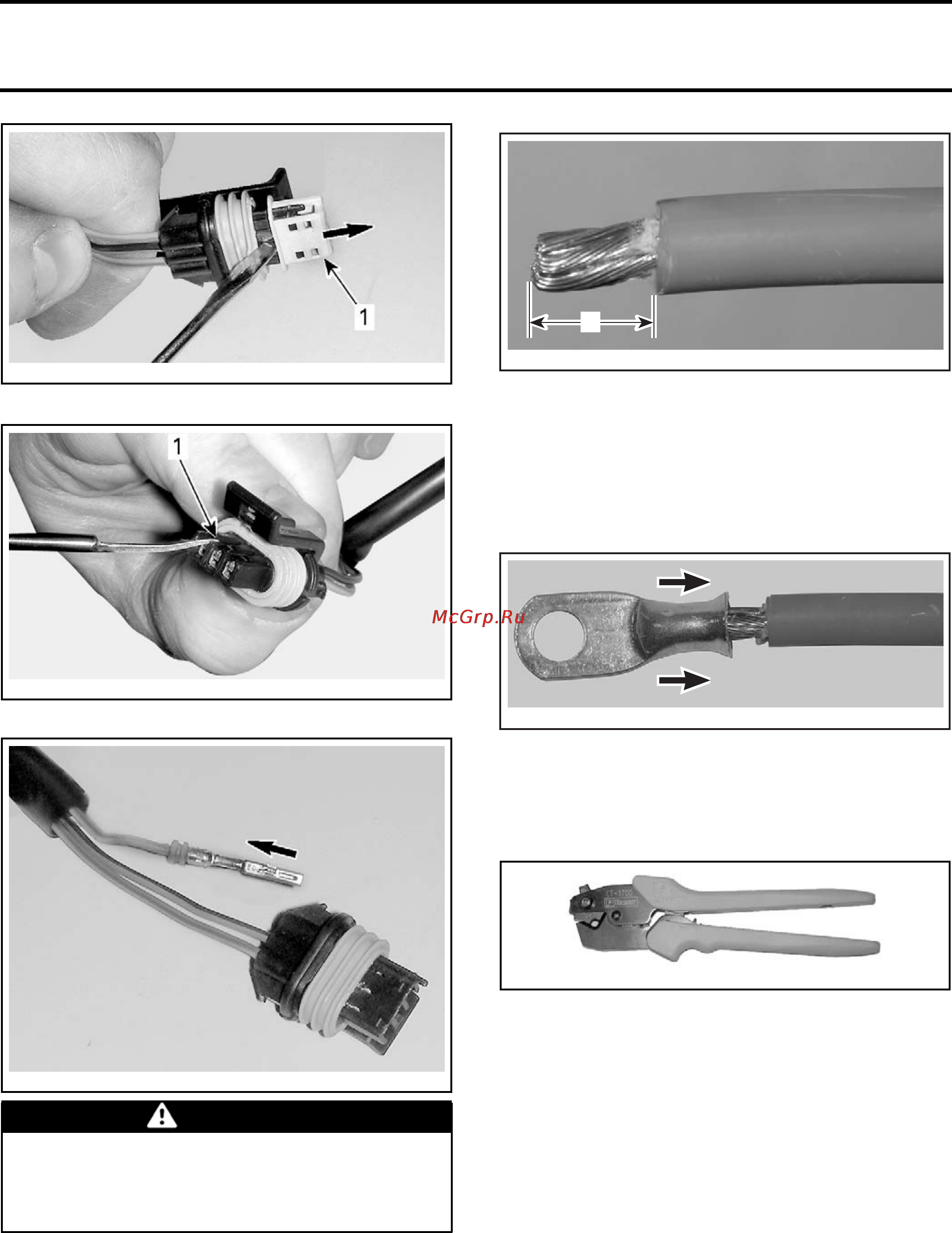

smr2009-045-023_a

1. Pry out locking cap

smr2009-045-024_a

1. Unlock here

smr2009-045-028_a

WARNING

Befor

e terminal installation, ensure all ter-

mina

ls are properly crimped on wires. After

plug

ging connectors, ensure they are prop-

erly

fastened.

BATTERY CABLE TERMINAL

Crimping

Carefully strip the wire approximately to 10 mm

(3/8 in) in length, using a wire stripping tool or

sharp blade/knife.

A32E2QA

A. 10 mm (3/8 in)

NOTE: Make sure not to cut wire strands while

stripping the wire.

Install the appropriate terminal on the wire ac-

cording to the requirement. Refer to appropriate

PARTS CATALOG

A32E2RA

INSTALLA

TION OF TERMINAL

Follow the instructions provided with the CRIMP-

ING TOOL (HEAVY GAUGE WIRE) (P/N 529 035 730)

to select the proper position of the tool.

529035730

NOTE: D

ifferent wires require different crimping

pliers

settings, so make sure to follow the instruc-

tion su

pplied with the tool.

526 smr2009-044
