Section 09 WIRING DIAGRAM

Subsection 02 (CONNECTOR INFORMATION)

A32E2SA

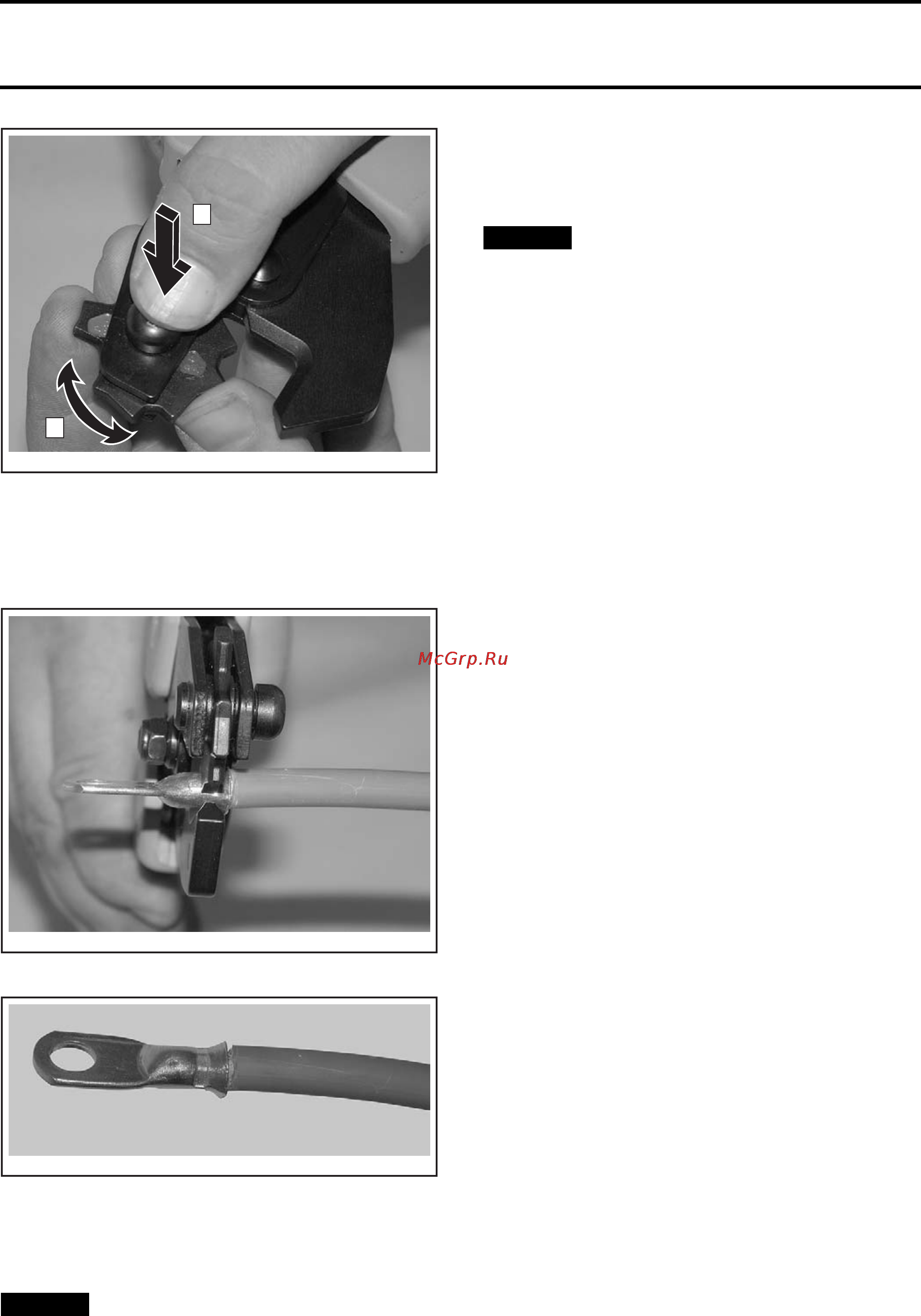

POSITIONI

NG THE CRIMPING PLIERS

Step 1: Press

Step 2: Rotate

After posi

tioning the crimping pliers, crimp the ter-

minal alre

ady installed on wire.

A32E2TA

CRIMPING OF WIRE

A32E2UA

PROPERLY CRIMPED WIRE

To verify, if the wire is properly crimped, apply

some pulling force on wire and the terminal at the

same time from both directions.

NOTICE

Never weld the wire to the terminal.

Welding can change the property of the wire

and it can become brittle and break.

Install the protective heat shrink rubber tube on

the terminal. Heat the heat shrink rubber tube us-

ing the heat gun so that it grasps the wire and the

terminal.

NOTICE

Make sure that the protective heat

shrink rubber tube has been properly installed

and no part of wire is exposed.

smr2009-044 527
