Section 02 ENGINE

Subsection 03 (INTAKE MANIFOLD)

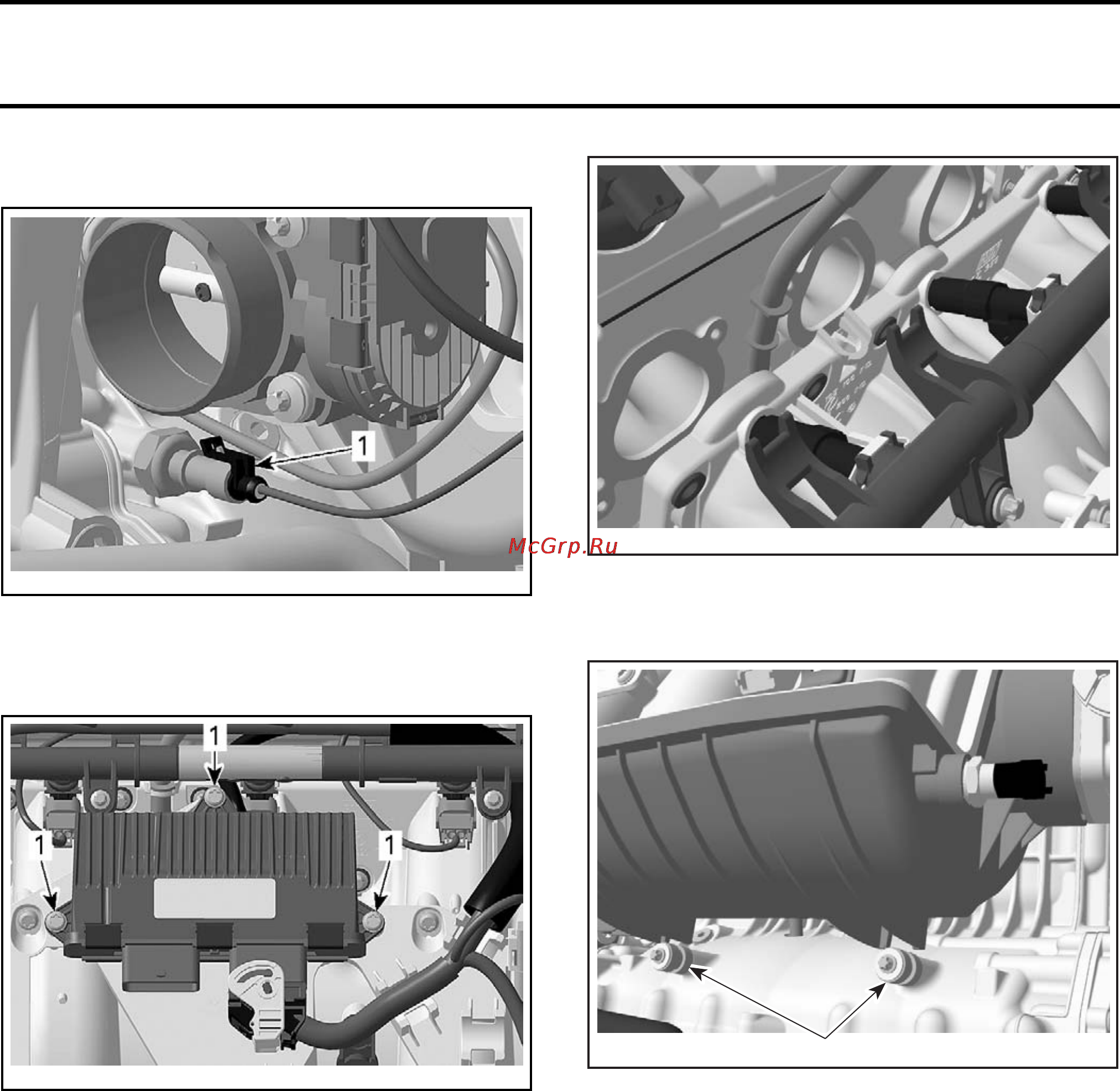

Unplug the oil pressure switch (OPS).

smr2009-018-011_a

1. Oil pressure switch (OPS)

Unscrew EC

M retaining screws and remove ECM

from its su

pport.

smr2009-018-012_a

1. ECM retaining screws

Pull the engine wiring harness with the ECM

plugged away from intake manifold.

Remove manifold retaining screws and push the

oil dipstick tube out of the manifold slot.

R1503motr59A

Lift intake manifold up to pull it out of the mount-

ing brackets.

R1503motr61A

1. Mount

ing brackets

Pull intake manifold out.

Intake Manifold Inspection

Check intake manifold for cracks, warping at

flanges or any other visible damage.

Check

if intake manifold gaskets are cracked, brit-

tle or

otherwise damaged.

Replace damaged parts as necessary.

Intak

e Manifold Installation

For installation, reverse the removal procedure.

Pay attention to following details.

Ensure that all gaskets are properly installed and

in good condition.
