Section 02 ENGINE

Subsection 03 (INTAKE MANIFOLD)

R1503motr62A

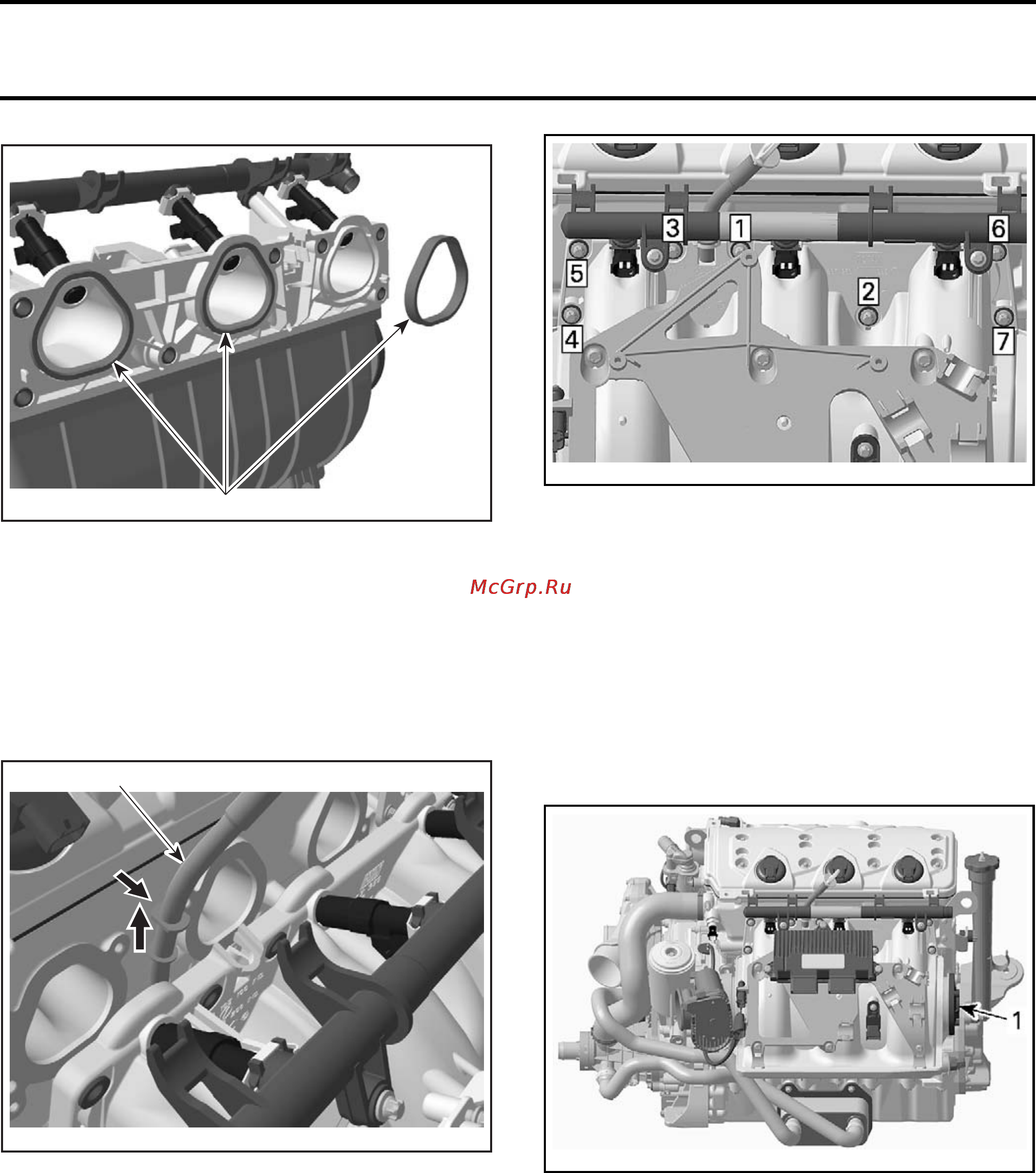

INTAKE MANIFOLD

1. Gaskets

First, position intake manifold on front mounting

bracket then push manifold toward engine to then

proceed with rear mounting bracket.

When installing the intake manifold, lift up the oil

dipstick tube a little bit to fit in the slot of the man-

ifold.

R1503motr59B

1. Oil dipstick tube

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on the

intak

e manifold screws.

Torque them to 9 N•m (80 lbf•in) following the

tightening sequence as shown in next illustration.

smr2009-018-013_a

Ensure to properly route and secure wiring har-

ness with locking ties.

Apply

LOCTITE 243 (BLUE) (P/N 293 800 060) on the

ECM retaining screws and torque them to 9 N•m

(80 lbf•in).

FLAME ARRESTER

Flame Arrester Location

The flame arrester is integrated in the intake man-

ifold.

smr2009-018-014_a

1. Flame a

rrester

Flame Arrester Inspection

The fla

me arrester in the intake manifold is main-

tenanc

efree.

Flame Arrester Replacement

NOTE: T

he flame arrester can not be removed

from th

e intake manifold.

Replace intake manifold if necessary. Refer to

IN-

TAKE MANIFOLD

in this subsection.

smr2009-018 35
