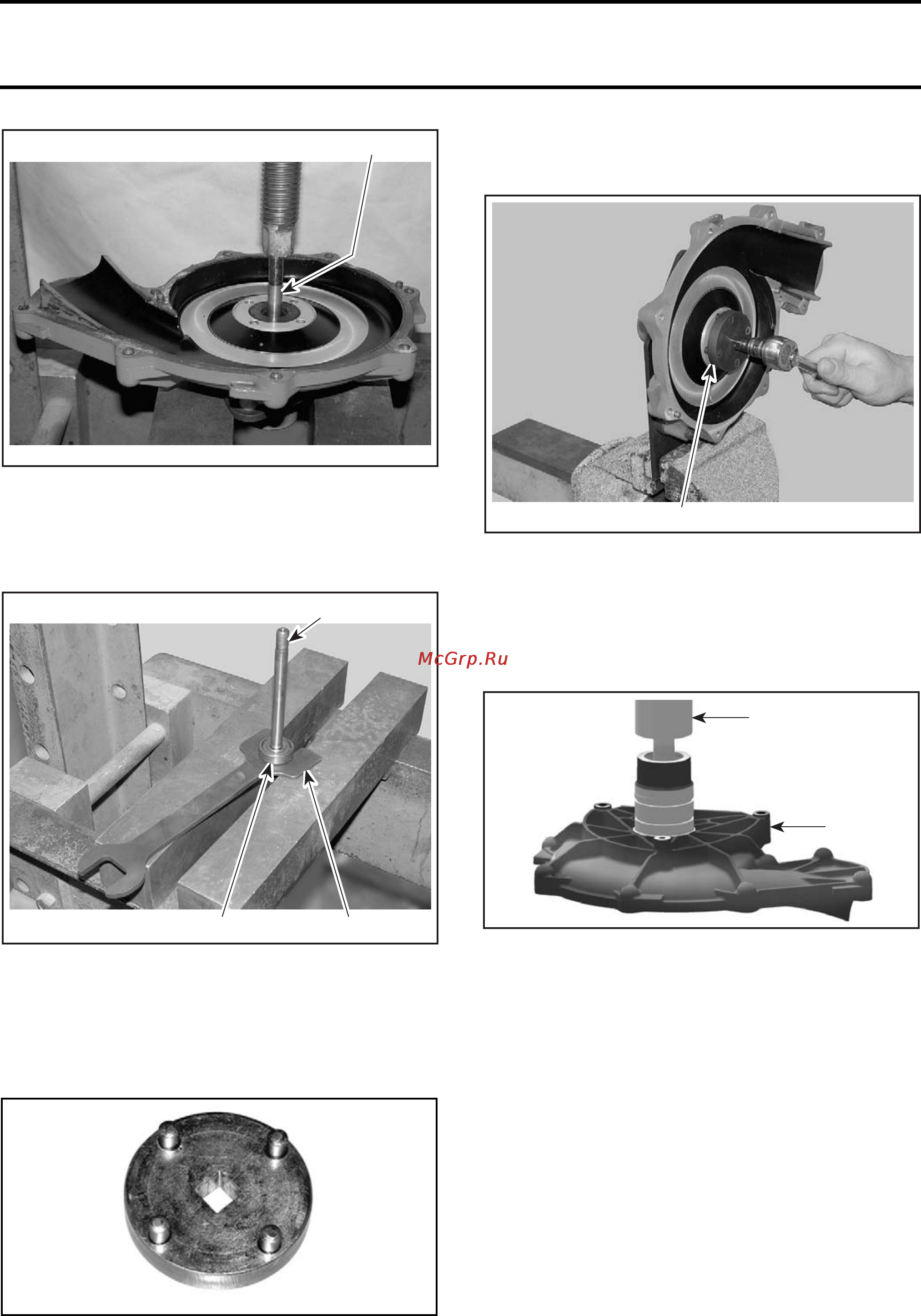

Section 02 ENGINE

Subsection 04 (SUPERCHARGER)

1

F00B2CA

1. Supercharger shaft

8. Remove and discard ball bearing from super-

charger shaft by using a press and the

SUPER-

CHARGER RETAINING KEY (P/N 529 036 027)

.

1

F00B2DA

2 3

1. Supercharger shaft

2. Ball bearing

3. Retaining key

9. Screw out retaining disc with seal from hous-

ing half (engine side) by using the

4-PIN SOCKET

(P/N 529 035 948)

.

529035948

NOTE: It may be necessary to heat the housing

with a heat gun to release the retaining disc.

F00B2AA

1

1. 4-pin socket

10. Discard the oil seal.

11. Remove and discard ball bearing from super-

charger housing half (engine side) by using a

press and a suitable bearing pusher.

1

R1503motr236A

2

1. Supercharger housing half (engine side)

2. Bearing pusher

Supercharger Inspection

Supercharger Clutch Components and Gear

Check the wear limit on drive gear, lock washer

and driven plate on supercharger shaft. Check

drive gear for cracks.

NOTE: If parts are worn out or damaged, repair

supercharger only by using supercharger repair

kit.

46 smr2009-020
