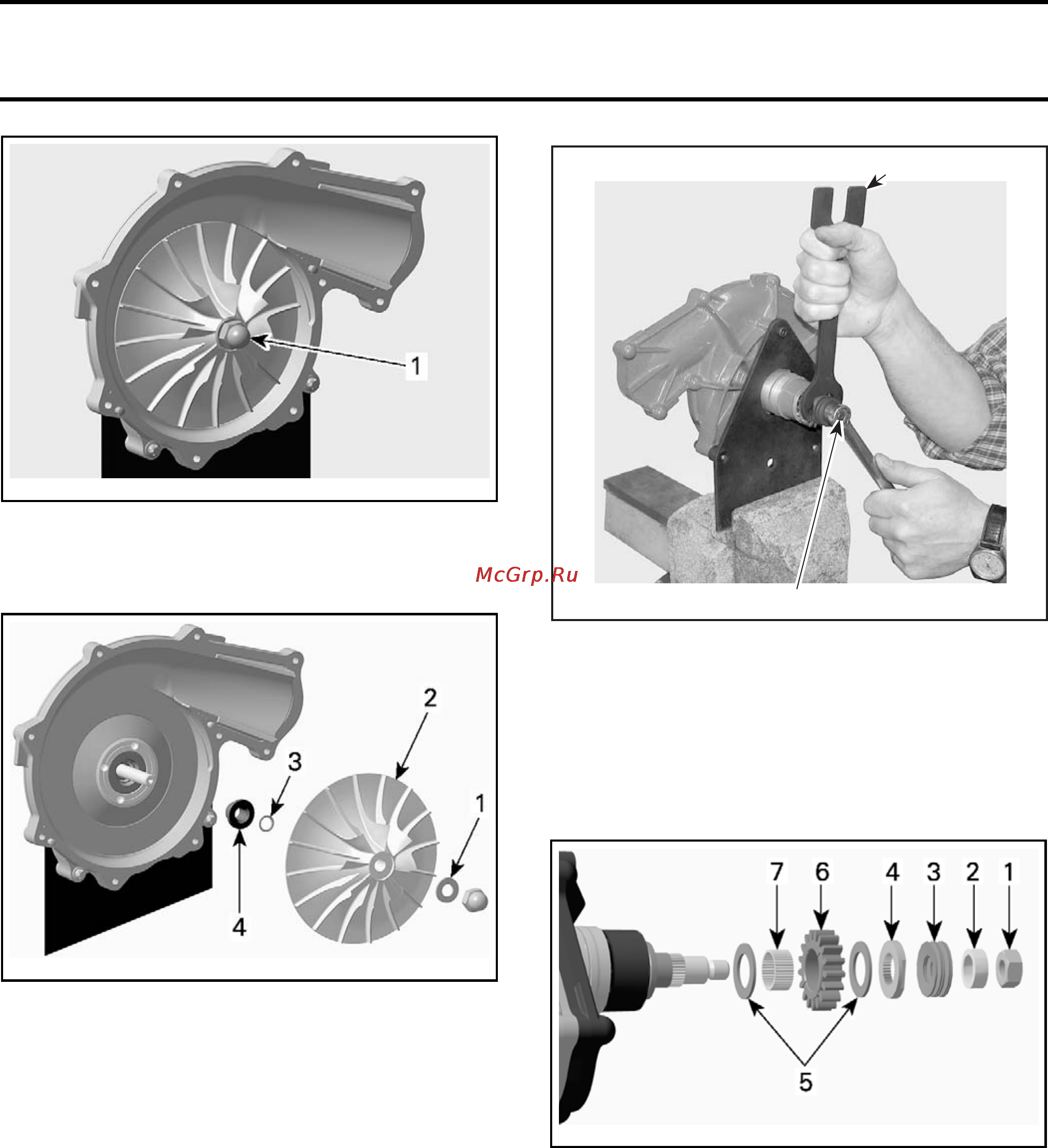

Section 02 ENGINE

Subsection 04 (SUPERCHARGER)

smr2009-020-006_a

1. Cap nut (left-handed thread)

4. Remove washer, turbine, O-ring and step collar

from supercharger shaft.

smr2009-020-007_a

1. Washer

2. Turbi

ne

3. O-ring

4. Step collar

5. Loose

n nut on supercharger shaft engine side

whil

e holding shaft with the

SUPERCHARGER

RETA

INING KEY (P/N 529 036 027)

.

2

F00B2BA

1

1. Nut

2. Retaining key

NOTE: There are 40 loose needle bearings under

the gear. Do not reuse.

6. Remove L-ring, spring washers, lock washer,

drive gear and needle pins by turning the super-

charger upside down.

smr2006-012-008_a

1. Nut

2. L-ri

ng

3. Spring washers (5x)

4. Lock washer

5. Tita

nium shims

6. Drive gear

7. Needle bearings

7. Car

efully push out supercharger shaft towards

eng

ine side by using a press.

smr2009-020 45
