Section 02 ENGINE

Subsection 04 (SUPERCHARGER)

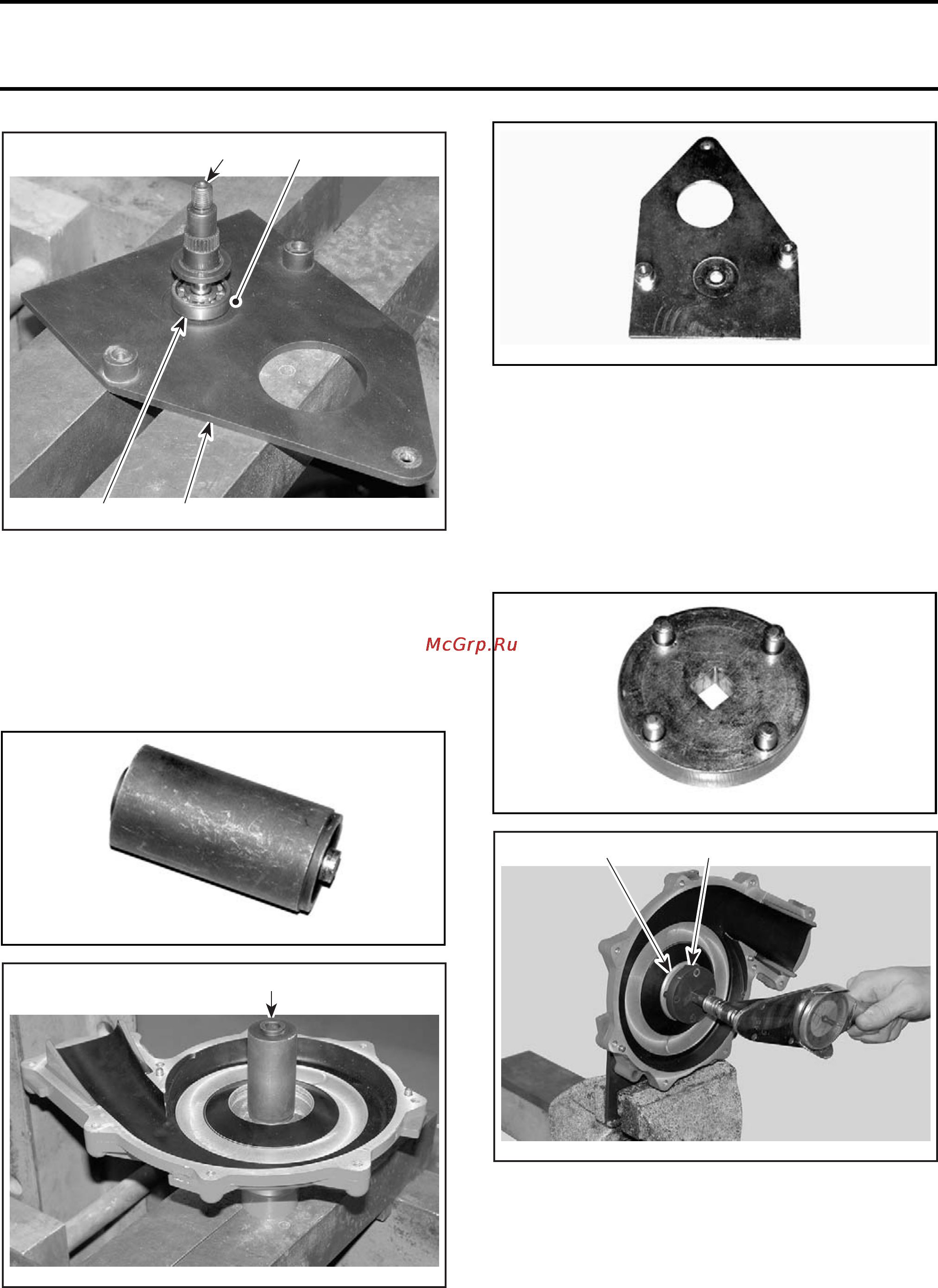

F00B2FA

1. Supercharger shaft

2. Ball bearing

3. Bearing support plate

4. Protrusion of support plate on this side (underneath inner race)

3. Apply enough engine oil on NEW ball bearing.

4. Press in the ball bearing in supercharger hous-

ing half (engine side), by using

BEARING SUP-

PORT/PUSHER (P/N 529 035 950)

529035950

F00B2EA

1. Bearing support/pusher

5. Mo

unt supercharger housing half (engine side)

the

SUPPORT PLATE (P/N 529 035 947).

529035947

6. Apply LOCTI

TE 243 (BLUE) (P/N 293 800 060)

retaining d

isc. If a new retaining disc is used,

the thread

s are coated with a self-locking prod-

uct.

7. Install the retaining disc in supercharger hous-

ing half by using the

4-PIN SOCKET (P/N 529 035

948)

8. Torque retaining disc to 29 N•m (21 lbf•ft).

529035948

F00B2IA

1. Retaining disc

2. 4-p

in socket

9. To press supercharger shaft in housing half (en-

gine side), properly support bearing using the

SUPPORT PLATE (P/N 529 035 947) and the BEAR-

ING SUPPORT/PUSHER (P/N 529 035 950)

under

supercharger housing half.

48 smr2009-020
