Section 02 ENGINE

Subsection 04 (SUPERCHARGER)

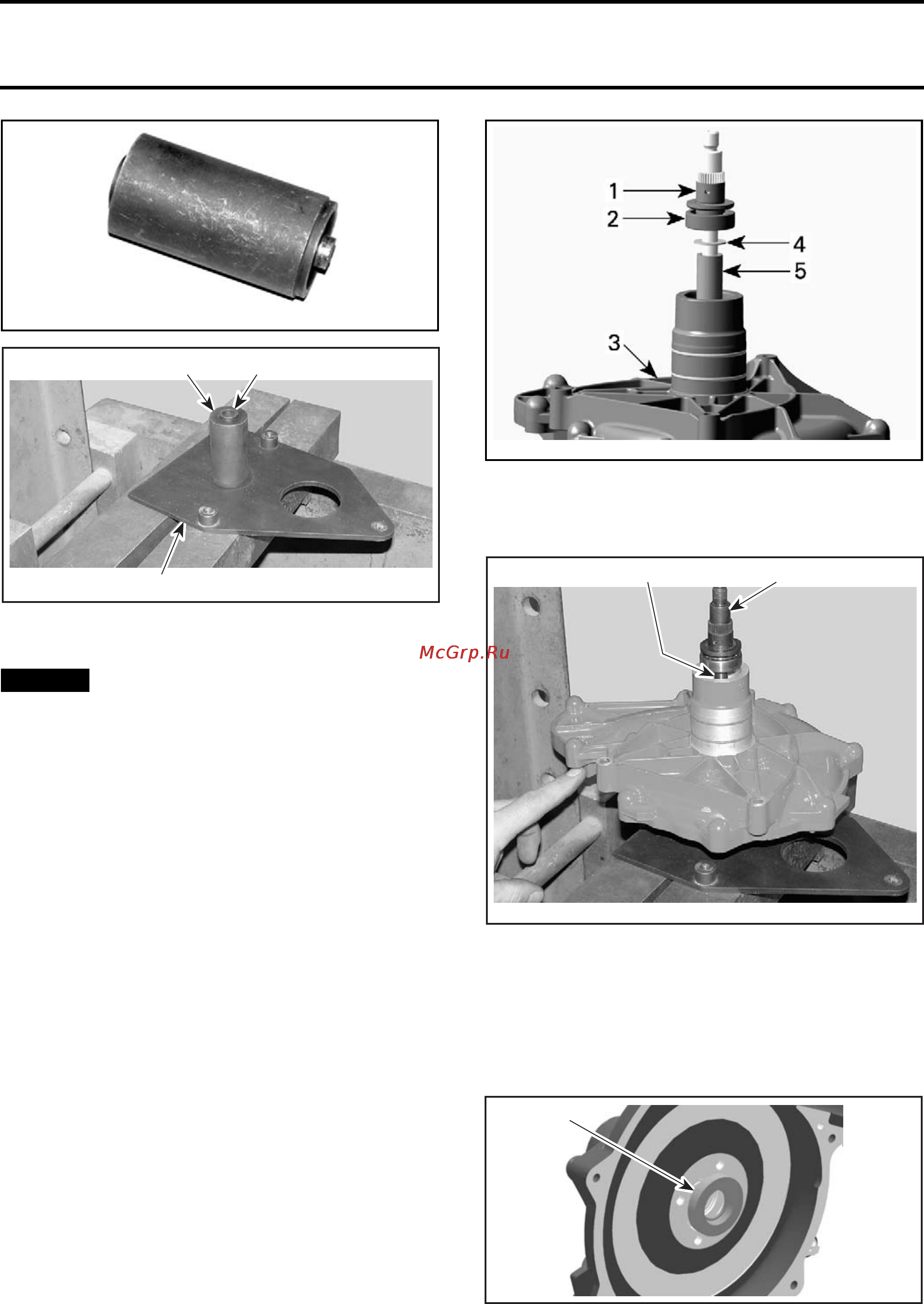

529035950

F00B2GA

1. Support plate

2. Bearing support/pusher

3. Protrusi

on here

NOTICE

Before pressing in the supercharger

shaft, be sure to properly support the inner

race of ball bearing in supercharger housing

half with the recommended tool. This way,

the installation pressure will be applied to the

inner race and will not be transmitted to the

bearing balls which would otherwise shorten

the bearing life.

10. Apply heat outside of the housing with a heat

gun to expand its diameter prior to inserting

the shaft. Ensure there is no O-ring on the

housing half prior to heating.

11. Apply engine oil on supercharger shaft. Press

shaft with thrust washer and distance sleeve

together in supercharger housing half.

smr2006-012-032_a

1. Compressor shaft

2. Ball bearing

3. Supercharger housing half

4. Thrust washer

5. Distance sleeve

F00B2HA

1. Supercharger shaft

2. Distance sleeve

12. Apply engine oil on seal and push into retaining

disc by hand.

NOTE: Always use a NEW oil seal when assem-

bling the supercharger.

R1503motr242A

1. Oil seal

smr2009-020 49
