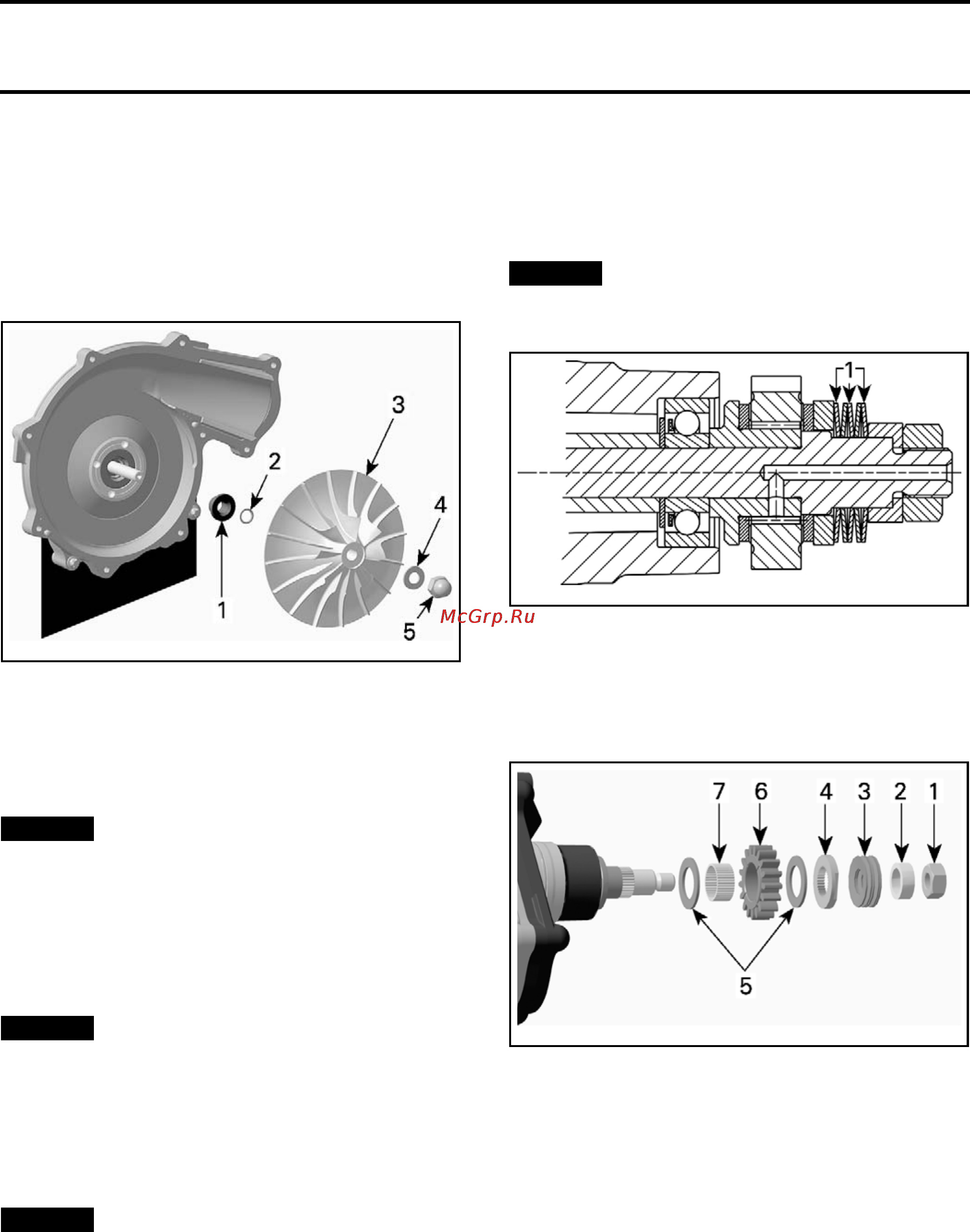

Section 02 ENGINE
Subsection 04 (SUPERCHARGER)
13. Install step collar, O-ring, turbine and washer
on supercharger shaft. Apply
LOCTITE 243
(BLUE) (P/N 293 800 060)
on cap nut and tem-
porary finger tight cap nut.
NOTE: The cap nut on the supercharger shaft has
a left-handed thread. The Loctite has to be applied
in a small dose into the nut.
smr2009-020-007_b
1. Step collar
2. O-ring
3. Turbine
4. Washer
5. Cap nut
14. Complete installation of supercharger shaft,
engine side as follows:
NOTICE
It is of the utmost importance that
all parts be absolutely clean. The compressor
shaft spins at up to 45 000 RPM and any debris
could cause a failure.
15. Instal
l the first titanium shim.
NOTE: The titanium shims have the same inner
diameter.
NOTICE
Manipu
late titanium shims with
care, t
hose parts are sensitive.
16. IMPORTANT: Apply
ISOFLEX GREASE TOPAS
NB 52 (P/N 293 550 021)
to the inner diameter of
the gear thrust surface on the shaft, titanium
shims, needle bearings, shaft surface and lock
washer.
NOTIC
E
No other grease can be used, other-
wise damage to bearings will occur.
17. Inst
all the 40 needle bearings on the compres-
sor s
haft.
NOTE: The 40 needle bearings comes in a wax
strip with an adhesive backing.
18. Remove the adhesive backing.
19. Inst
all the drive gear over the needle bearings.
20. Install the second titanium shim.
21. Install the lock washer.
22. Apply engine oil to the spring washers.
23. Position the spring washers as per illustration.
NOTICE
When installing the spring washers,
take care of the exact installation direction of
the washers.
smr2006-0
12-009_a
1. Spring washers
24. Install the L-ring on the compressor shaft.
25. Apply
LOCTITE 243 (BLUE) (P/N 293 800 060) on
the hexagonal nut threads. Torque to 29 N•m
(21 lbf•ft).
smr2006-012-008_a
1. Nut
2. L-rin
g
3. Spring washers
4. Lock washer
5. Titan
ium shims
6. Drive gear
7. Needle bearings
NOTE
: The L-ring will preload the spring washers.
26. Hold the lock washer of the supercharger
shaft (engine side) using the
SUPERCHARGER
RETAINING KEY (P/N 529 036 027)
.
50 smr2009-020
