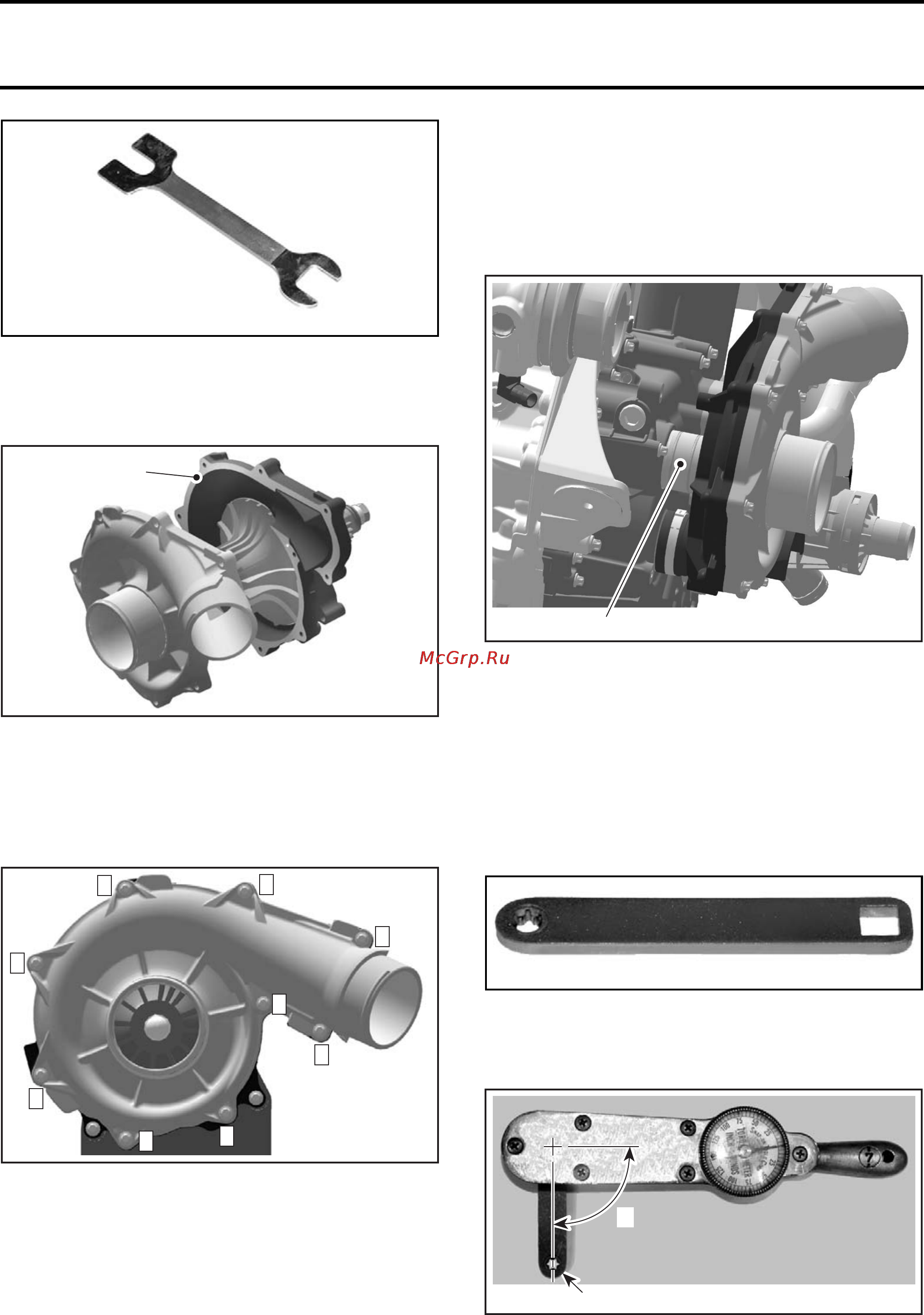

Section 02 ENGINE
Subsection 04 (SUPERCHARGER)
529035949
27. Tighten the cap nut to 29 N•m (21 lbf•ft).
28. Apply
LOCTI
TE 5910 (P/N 293 800 081)
on super-
charger hou
sing sealing surface.
1
R1503motr246A
1. Apply Loctite 5910 on sealing surface
29. Assemble supercharger housing halves. Ap-
ply
LOCTITE 243 (BLUE) (P/N 293 800 060) on re-
taining screws and torque to 9 N•m (80 lbf•in)
according to the following sequence.
R1503motr227B
4
6
8
9
1
3
5
7
2
SUP
ERCHARGER TIGHTENING SEQUENCE
30. Verify the clutch slipping moment. Refer to
SUPERCHARGER CLUTCH SLIPPING MO-
MENT (BENCH TEST)
in this subsection.
Supercharger Installation
1. Grease sealing surface between supercharger
and PTO housing with
SUPER LUBE GREASE
(P/N 293 550 030)
.
NOTE: Ensure O-rings are installed.
1
R1503motr247A
1. Super Lub
e grease
2. Install supercharger on PTO housing.
3. Apply
LO
CTITE 243 (BLUE) (P/N 293 800 060)
on
the reta
ining screws.
4. Torque retaining screws to 9 N•m (80 lbf•in).
4.1 To tighten and torque the upper retaining
screw, use the
TORX ADAPTOR (P/N 529
035 938)
.
529035938
5. Ensure to install the tool perpendicularly (90°) to
torque wrench to apply the proper torque to the
screw.
A
F00B1UA
1
1. Tool perpendicular (90°) to torque wrench
A. 90
°
smr2009-020 51
