Section 02 ENGINE

Subsection 07 (PTO HOUSING AND MAGNETO)

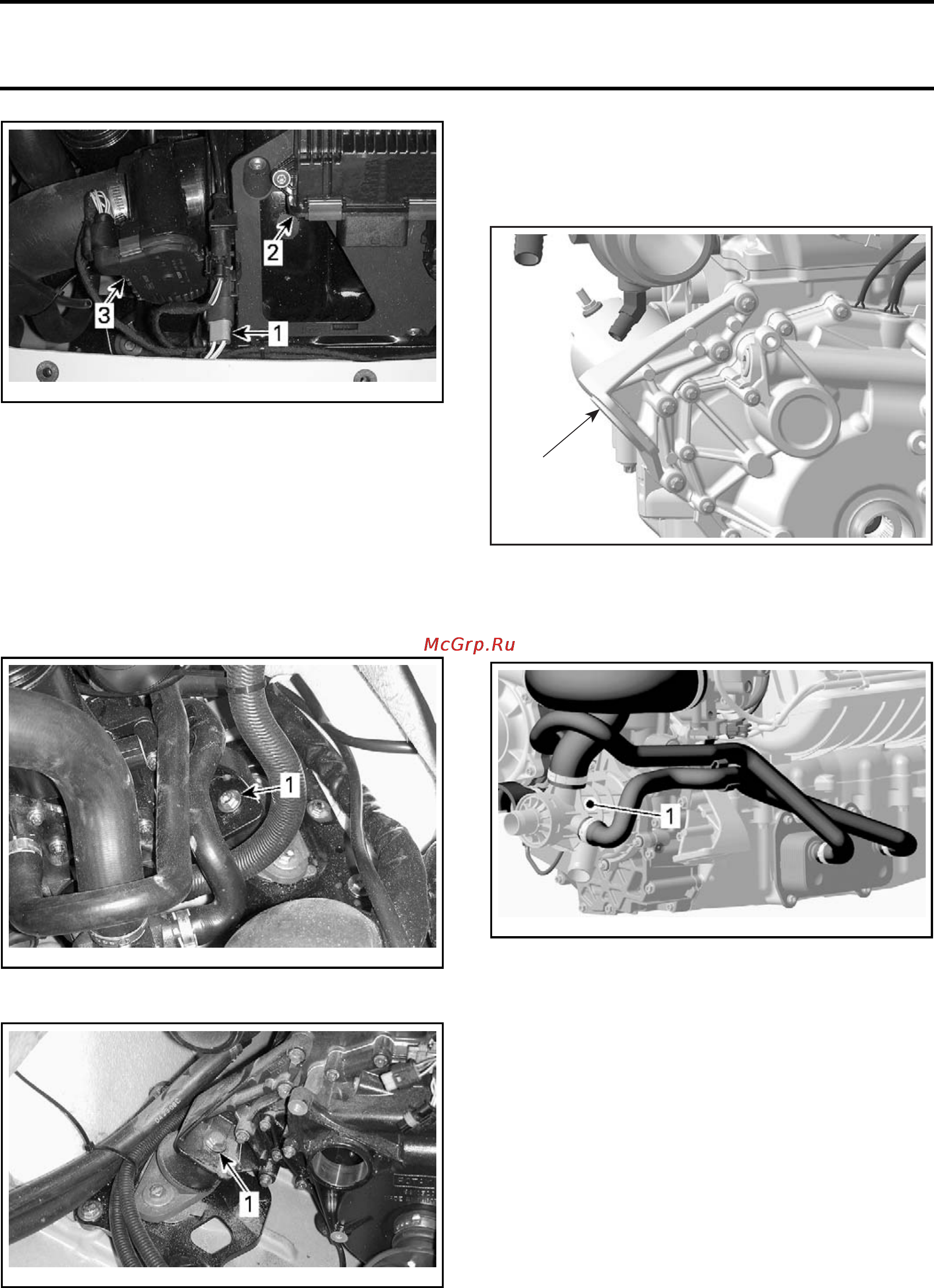

smr2009-016-015_b

1. Magneto connector

2. ECM

3. Throttle body

Place rags under PTO housing to prevent oil

spillage.

NOTE: Up to 250 ml (8 U.S. oz) of oil could flow

out when removing PTO housing. If spillage oc-

curs, clean immediately with the

PULLEY FLANGE

CLEANER (P/N 413 711 809)

to prevent oil stains.

Remove both rear engine support screws.

smr2009-016-020_b

RIGHT SIDE OF VEHICLE

1. Rear en

gine support screw

smr2009-016-022_b

LEFT

SIDE OF VEHICLE

1. Rear engine support screw

Slightly lift aft end of engine and insert a safely

block under the engine to secure it in this position.

Remove LH rear engine support.

R1503motr50A

TYPICAL

1. Engine sup

port

Remove water pump housing, refer to

COOLING

SYSTEM

subsection.

smr2007-016-003_c

1. Water pump housing

Remove PTO housing retaining screws.

smr2009-022 73
