Tp-Link EAP220 [19/70] Wireless settings

5.1 Wireless Settings

Following is the page of Wireless Settings.

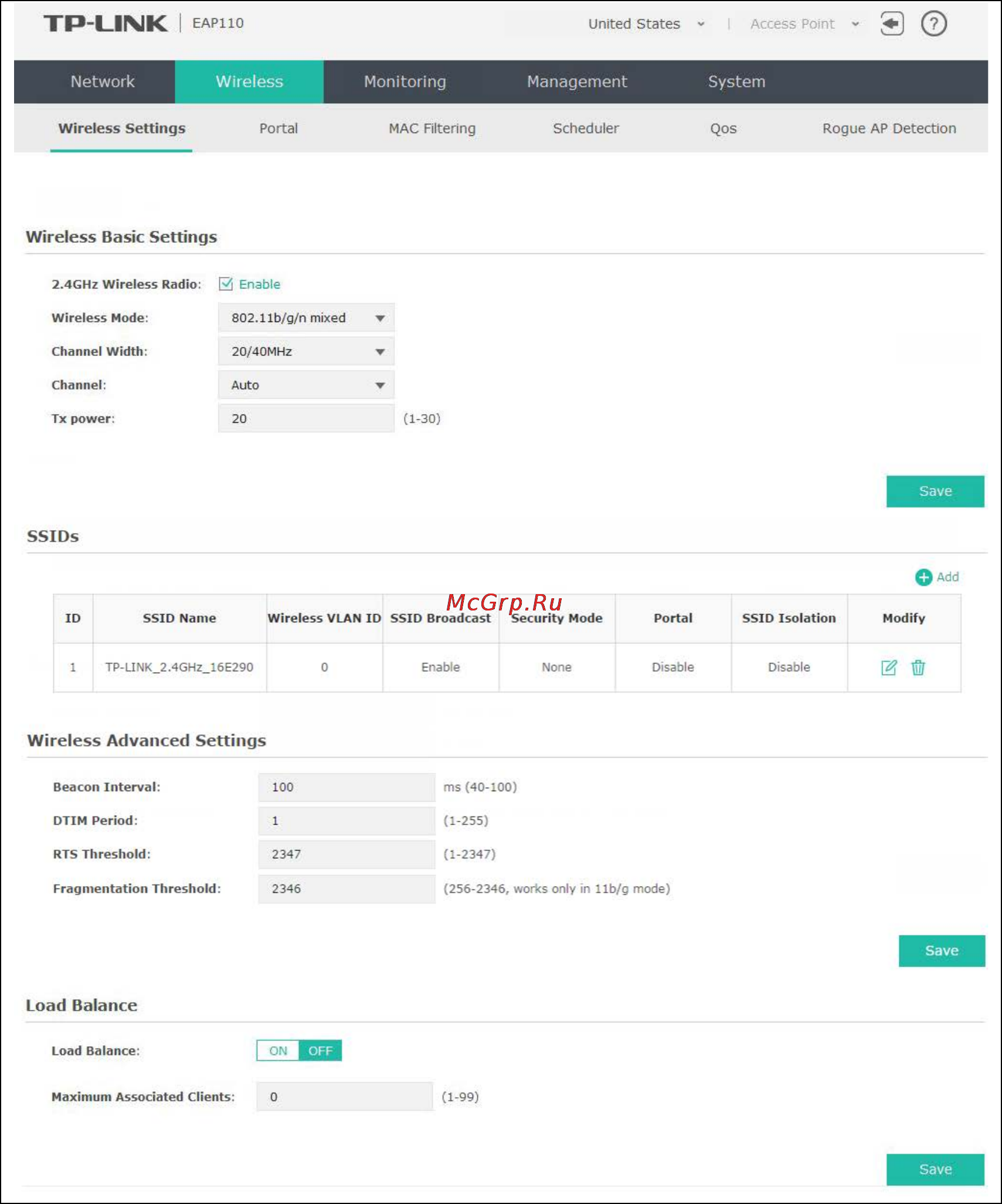

Figure 5-2 Wireless Settings Page
