Ada VERTICAL А00364 [11/34] Vertical

MEASUREMENT FOUNDATION

VERTICAL

3) Rotate the adjusting screw, as shown in the picture 9 with the help of pin.

Laser spot must coincide with the center of reticule.

Adjustment of the focus of laser beam

Aim at the target and watch in the eyepiece. Rotate laser screw (4) until you get minimum size of the laser spot on the target.

Otherwise adjust the size of the laser spot up to the minimum size with the help of adjusting screws, as shown in the picture 10.

7. Maintenance

1) Use handle for transportation (11) to take the instrument from the box. Never touch the lens to take it from the case;

2) Rotation of the alidade must be easy;

3) Avoid direct sunlight during operation;

4) To clean the lens rst use special soft brush. Then wipe it with cotton wool or cleaning napkin. After usage remove all dust and

dirt from the surface of the instrument and place it into the clean dry case;

5) Keep the instrument clean;

6) Put the instrument into the case to avoid damages during transportation; Keep case in the dry clean place;

7) Insert out the batteries if you are not going to use instrument for a long time;

8) Don’t leave the instrument without usage for a long time on the construction site. Vibration, dust, humidity can have negative

inuence upon instrument.

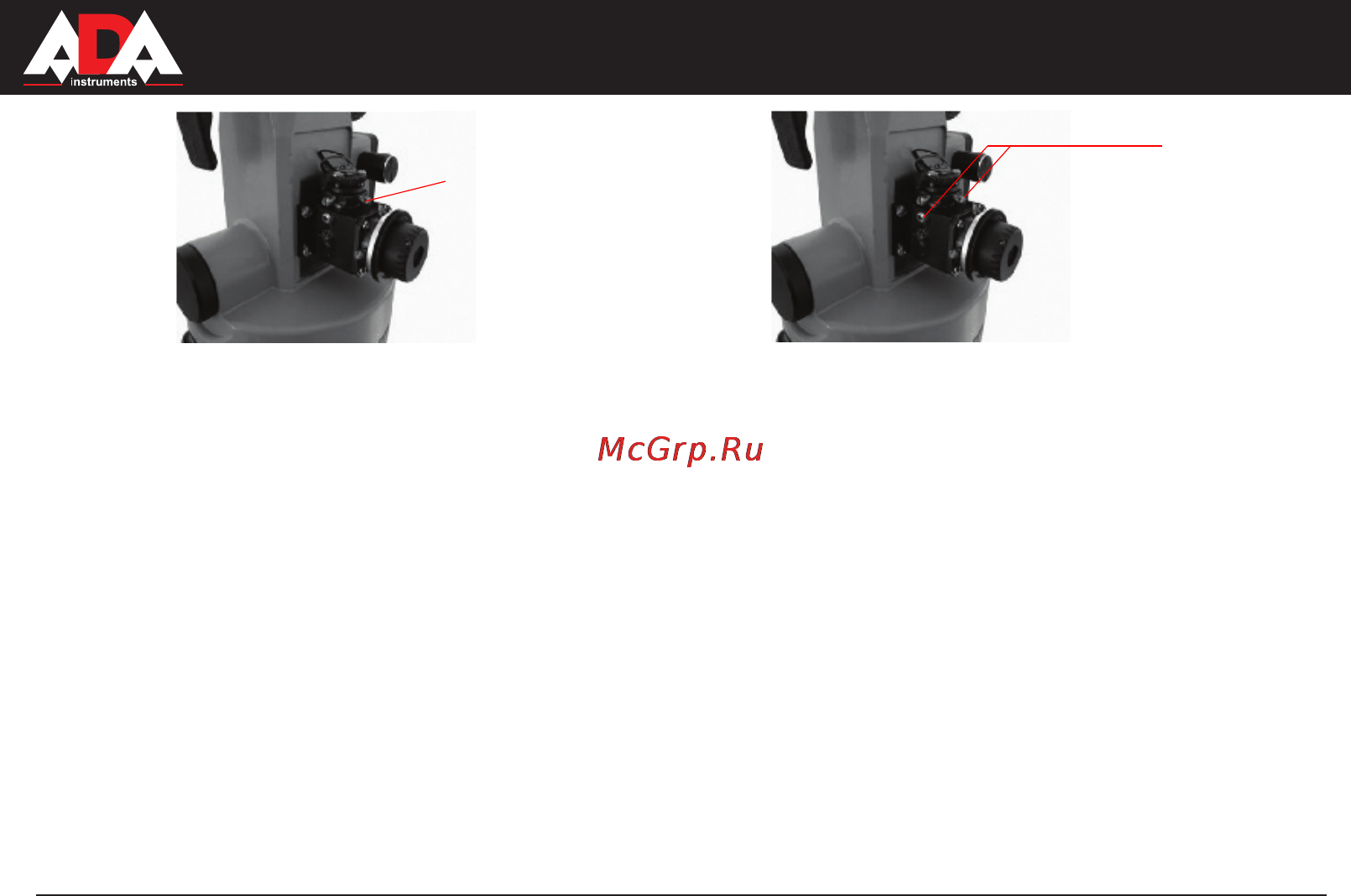

Pic.9

Adjusting

screw of

collimation

error

Adjusting

screws of

laser spot

Pic.10
