Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery’s

negative (-) terminal.

2. Remove the metal strap attached the back of the unit (if attached).

3. Press RELEASE button to remove the front panel.

4. Lift the top of the outer trim ring then pull it out to remove it.

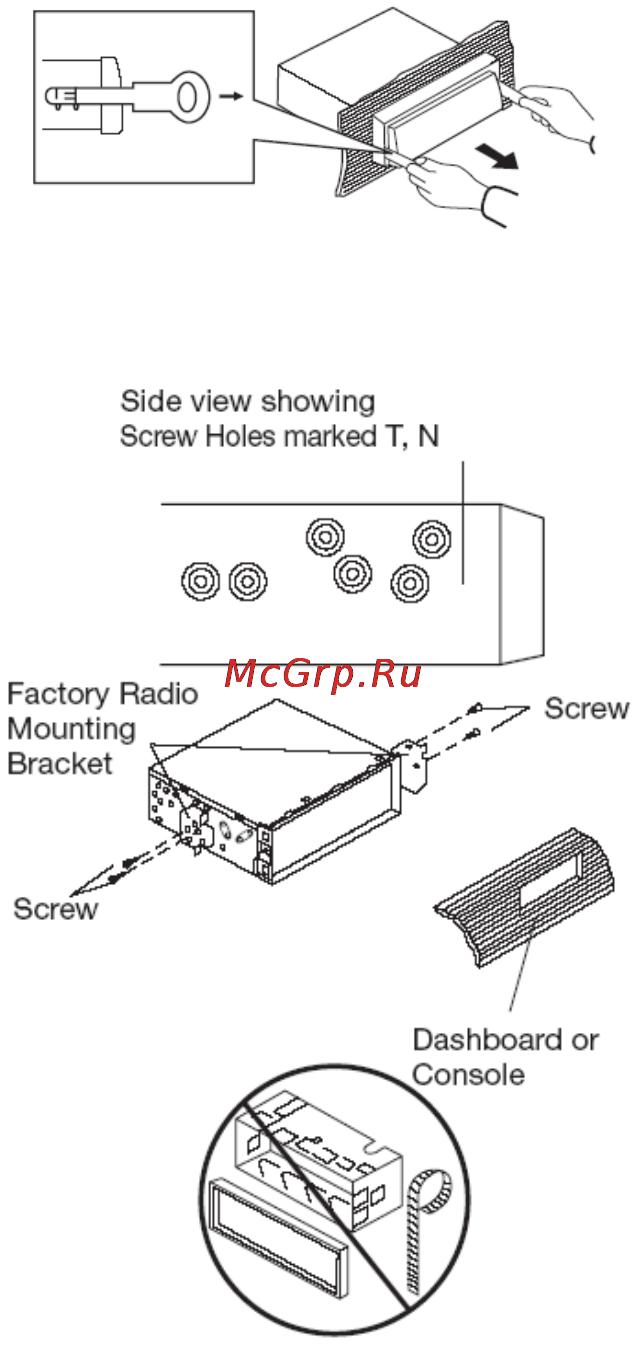

5. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow these mounting instructions. Use the screw holes

marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the

factory radio mounting brackets supplied with your vehicle.

To fasten the unit to the factory radio mounting brackets. Align the screw holes on the bracket

with the screw holes on the unit, and then tighten the screws (5x5mm) on each side. Note: the

outer trim ring, sleeve and the metal strap are not used for method B installation.
