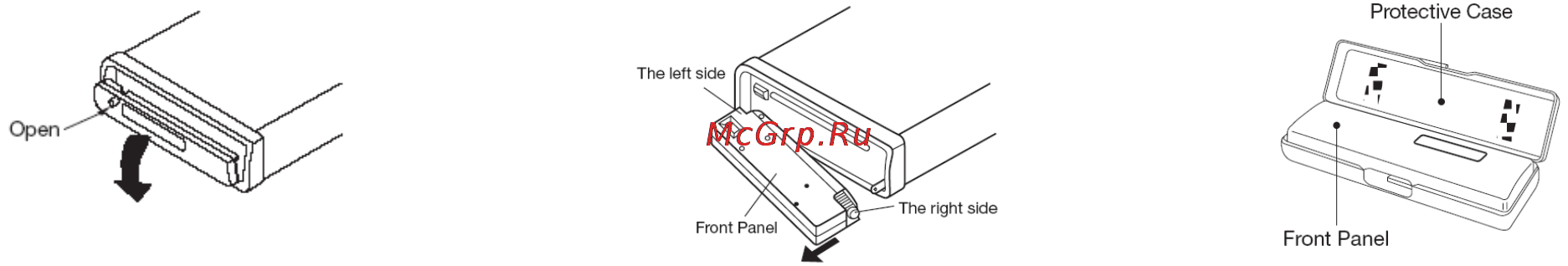

To Detach the Front Panel

Press RELEASE button, then the front panel will be folded down. To remove the front panel, lift it up at a little angle from horizontal

position, then first pull out the right side and then pull out the left side. For safekeeping, store the front panel in the supplied protective

case immediately after being removed.

To Install the Front Panel

To install the front panel, first insert the left side into proper position then insert the right side into place. When the two sides fixed

into place, push the front panel into main unit. Note that if the front panel fails to lock in position properly, pressing control button

may not function and the display may be missing some segments. Press the release button and then reinstall the front panel again.

Precautions when handling

 Do not drop the front panel.

 Do not put pressure on the display or control buttons when detaching or reinstalling the front panel.

 Do not touch the contacts on the front panel or on the main unit body. It may result in poor electrical contact.

 If any dirt or foreign substances adhered on the contacts, they can be removed with a clean and dry cloth.

 Do not expose the front panel to high temperatures or direct sunlight in anywhere.

 Keep away any volatile agents (e.g. benzene, thinner, or insecticides) from touching the surface of the front panel

 Do not attempt to disassemble the front panel.
