Trendnet TE-1710 [5/9] Rear panel indicators

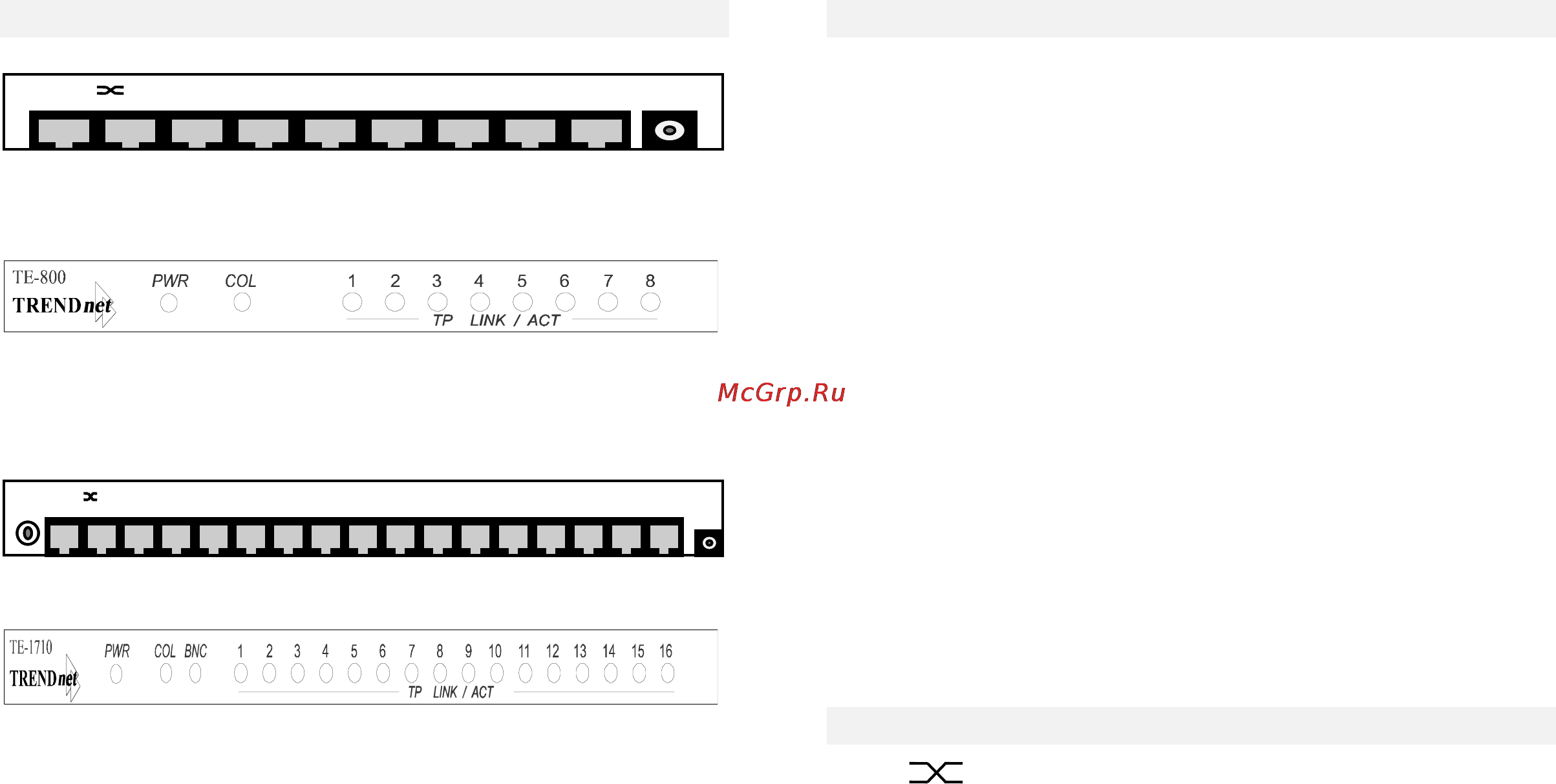

The Rear and Front Panel of MINI Hub

Uplink TP8 TP7 TP6 TP5 TP4 TP3 TP2 TP1 DC

(The Rear Panel of 8 port PALM hub)

(The Front Panel of 8 port PALM hub)

BNC Uplink TP16 TP15 TP14 TP13 TP12 TP11 TP10 TP9 TP8 TP7 TP6 TP5 TP4 TP3 TP2 TP 1

DC IN

(The Rear Panel of 17 port PALM hub)

(The Front Panel of 17 port PALM hub)

LED indicators:

Power/PWR: Lit whenever the hub is connected to a

power source and is turned on.

Collision/COL: Lit whenever a packet collision occurs on

the Ethernet network. A collision means that

two or more stations have tried to transmit the

same time. Frequent collisions may mean that

network segment is congested.

Link/TP: Lit when there is a good connection between

the workstation and the port that is connected

to.

Activity/ACT: Blinking whenever a packet is transmitted or

received.

BNC: Blinking when the data is transmitted.

Rear Panel indicators:

Uplink TP: This is a module, you may use either the

Uplink for cascade another hub or TP port for

normal workstation connection.
