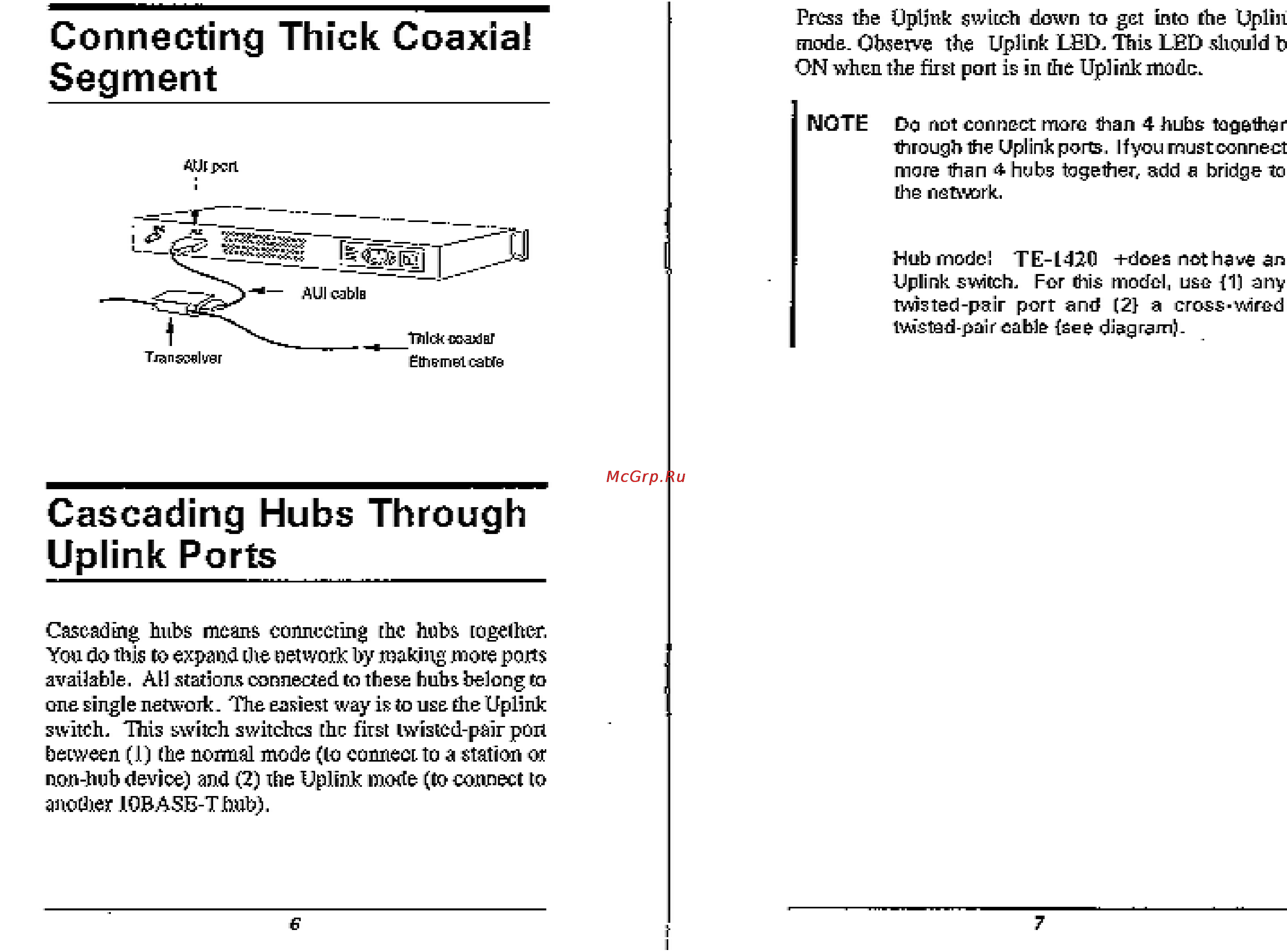

Connecting Thick Coaxial Segment Press the Uplink switch down to get into the 511n mode Observe the Uplink USD This LED should h ON when the first port is in the Uplink mode NOTE De not connect more than 4 hubs together through the Uplink ports If you must connect mere than hubs together add a bridge to the network Hub model TE 1420 r dees not have an Uplink switch For this model use 1 any twisted pair port and 2 a cross vwr d l stod pair cable see diagram Cascading Hubs Through Uplink Ports Cascading hubs means connecting the hobs together You do this to expand dienetwork by making more ports available AU stations connected to these hubs belong to one single network The easiest way is to use the Uplink switch This switch switches he first iwisscd psir pun between 1 he noimal mode io connect to a station or non hub device and 2 the Uplink mode to connect to another lOBASE ThubJ 7
