BBE 482i Sonic Maximizer [6/16] Warning to prevent possible speaker or amplifier damage always power up peripheral devices first wait 10 seconds and then turn on the power amplifier turn off power amp...

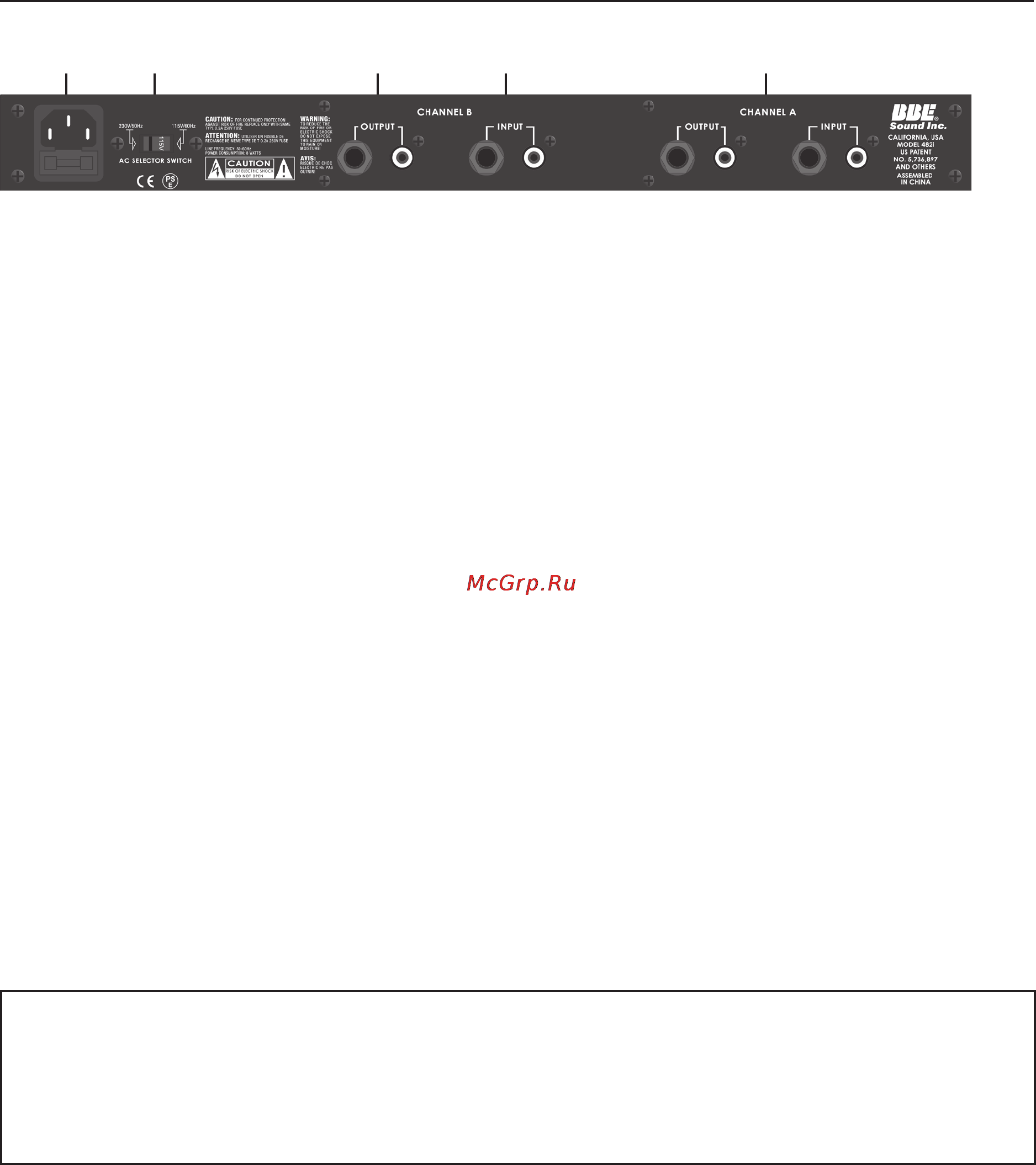

rear PaneL connecTionS

AC POWER CORD INLET: Plugs into AC power receptacle. U.S., Canada and Japan Models,

100-120Vac, 50/60Hz. All other models, 220~240Vac, 50/60Hz.

FUSE: Insert a at blade screwdriver into the fuse holder located in the bottom portion of the

AC Power Cord inlet. Carefully pry the fuse holder free from its compartment to access fuse.

(Note: For all models, replace with 250VAC, .2A slowblow type fuse.)

OUTPUT: The output of the BBE 482i can be taken from the 1/4” Phone Jack or the RCA

Jack. Both are unbalanced and are the same point electronically. This allows both outputs to

be used simultaneously, eliminating the need for a “Y” cord in the event multiple outputs are

required. The recommended single load impedance is at least 10k Ohms. If both outputs are

being used, a minimum of a 22k Ohm load per device is required. (The “load” is determined

by the input impedance of the next subsequent component in the signal chain.) The maximum

output is rated at +18dBu. The output impedance of the BBE 482i is 1 k ohms. NOTE: Actual

output level will vary due to the selected position of the BBE Process, and the actual input sig-

nal level.

INPUT: The input of the BBE 482i is an unbalanced connection. Although it can be either a

1/4” Phone Plug or an RCA Plug, it is recommended that only one input source is used. Both

jacks are the same point electronically, however, due to the input/output impedance character-

istics of most audio devices, a loss of signal may occur and/or damage to a component if both

inputs are utilized. The input impedance of the BBE 482i is 47k Ohms. The maximum signal

level is +18dBu.

CHANNEL A: These connections function the same as CHANNEL B.

WARNING! To prevent possible speaker or amplier damage,

always power-up peripheral devices rst, wait 10 seconds,

and then turn on the power amplier. Turn off power amplier

rst, then power-down peripheral devices.


