Aerofit MLC-400 [17/22] Mlc400 assembly instructions

MLC400

ASSEMBLY INSTRUCTIONS

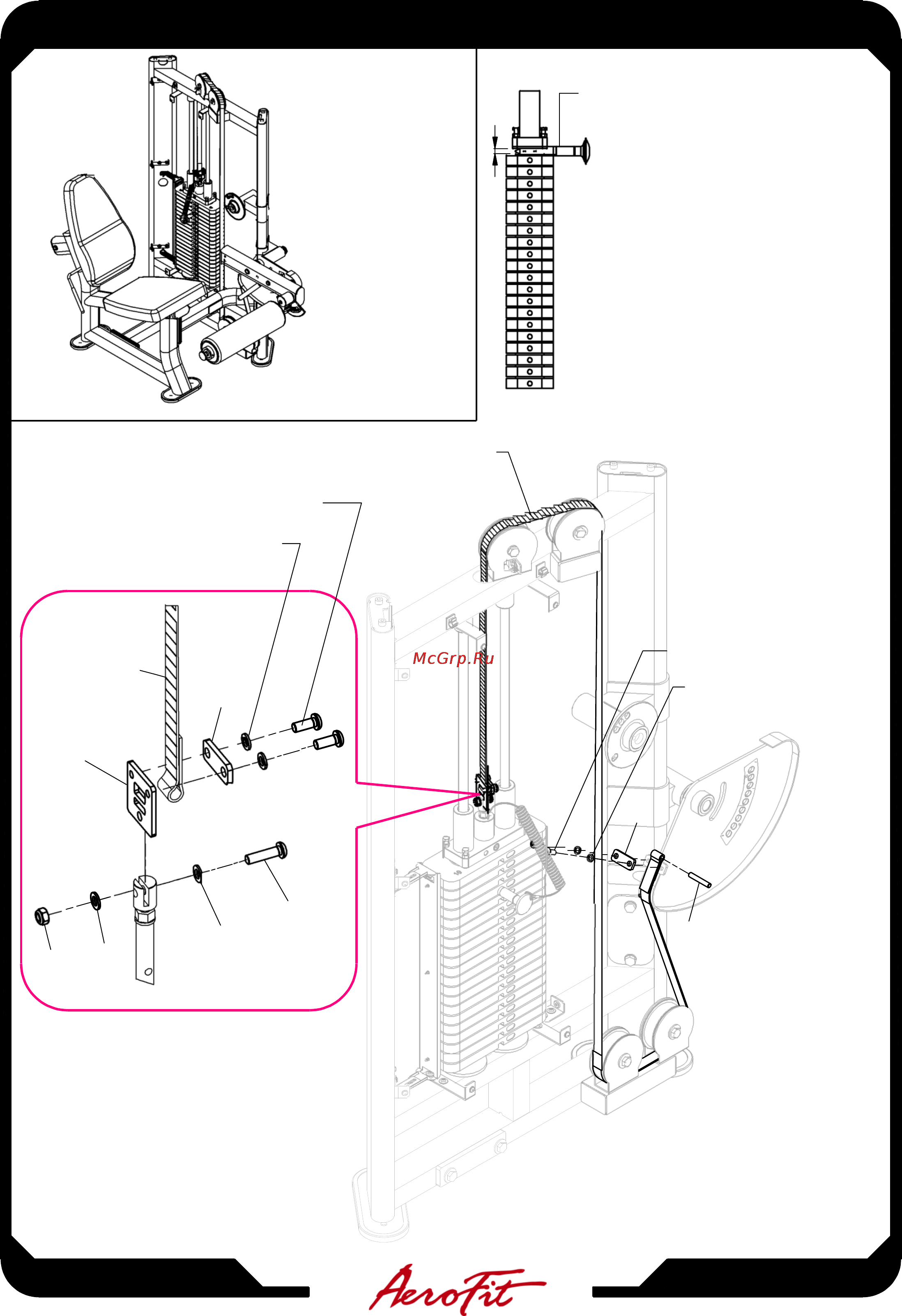

Adjust Belt

Procedure:

1. Lift the selector rod a little and

then

insert the pin between first weight

stack

and top plate (Do not insert though

the

first hole of the rod), and there

are

10 mm gap between top plate and

first

weight

stack.

2. Adjust the belt to have proper

tension

and then tighten the belt

clamps

3. Remove the pin and let the top plate

fall

on the first weight

plate.

Above shows STEP

assembled and

completed

The tread side should be outward

M10X25L ROUND BOLT

M10 SPRING WASHER

D12

M10X25L ROUND BOLT

M10 SPRING WASHER

BB2

CC3

AA4

MLC400-042010
